Fibre Transmission
A vast range of fibre and IP transmission systems

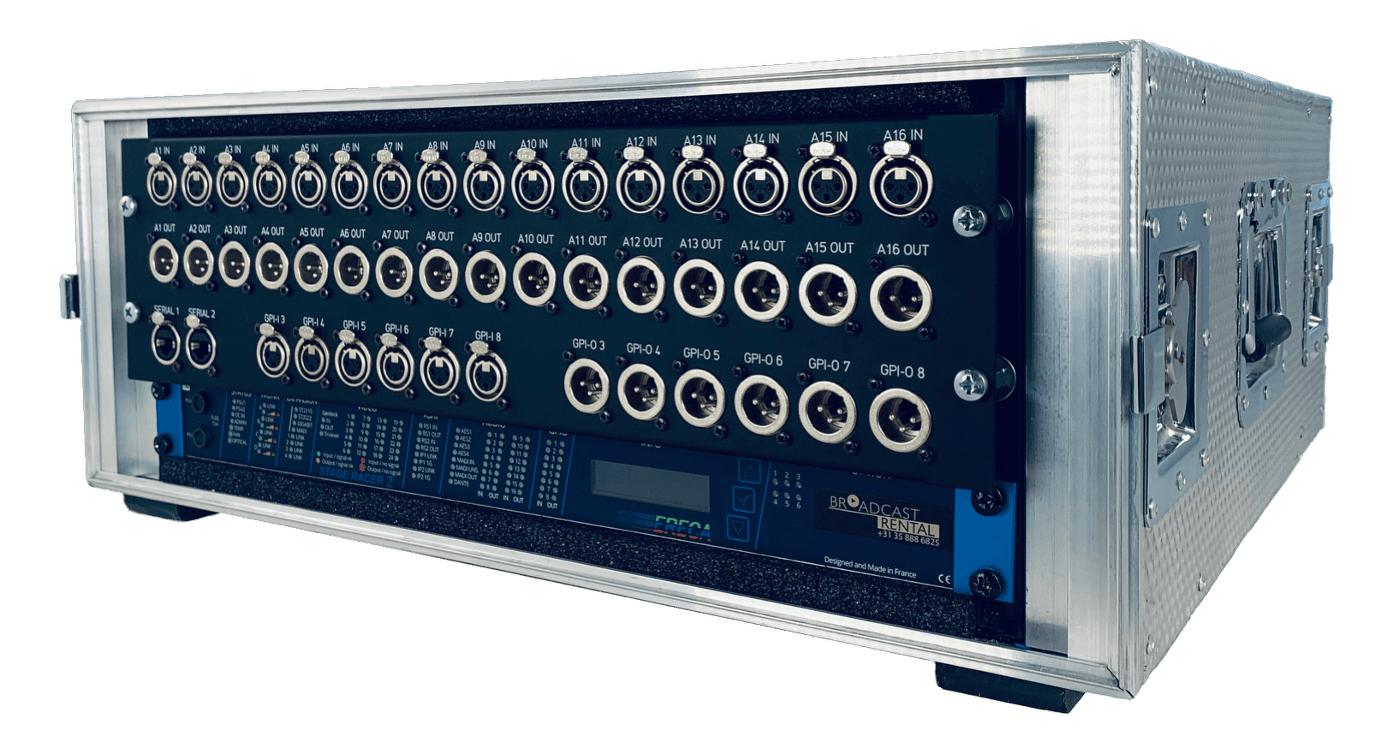

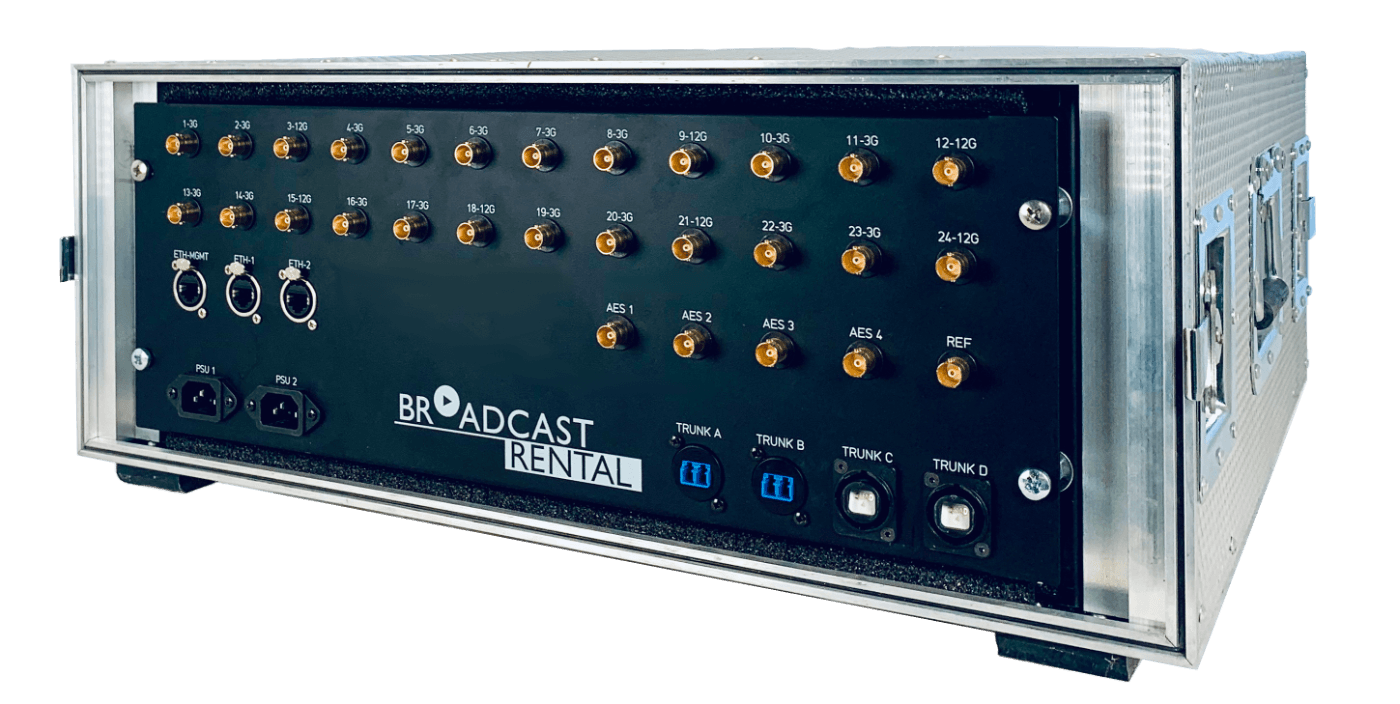

Ereca Stage Racer 2, 12ch, _fiber_ Decentralised Network Solution

8 SD to 3G direction switchable channels, 4 SD to 12G direction switchable channels, 1 Distributed Genlock (Composite video / Black burst / Tri-level), 16 Analog Audio I/O, 2 Ethernet 10/100/1000Mbs, 2 Data RS 232/422/485, 8 Contact closures, 4 AES3 bidirectional (Intercom panel compatible), 1 MADI I/O (AES10) signal (Shared with 2 of the 4 AES connectors)

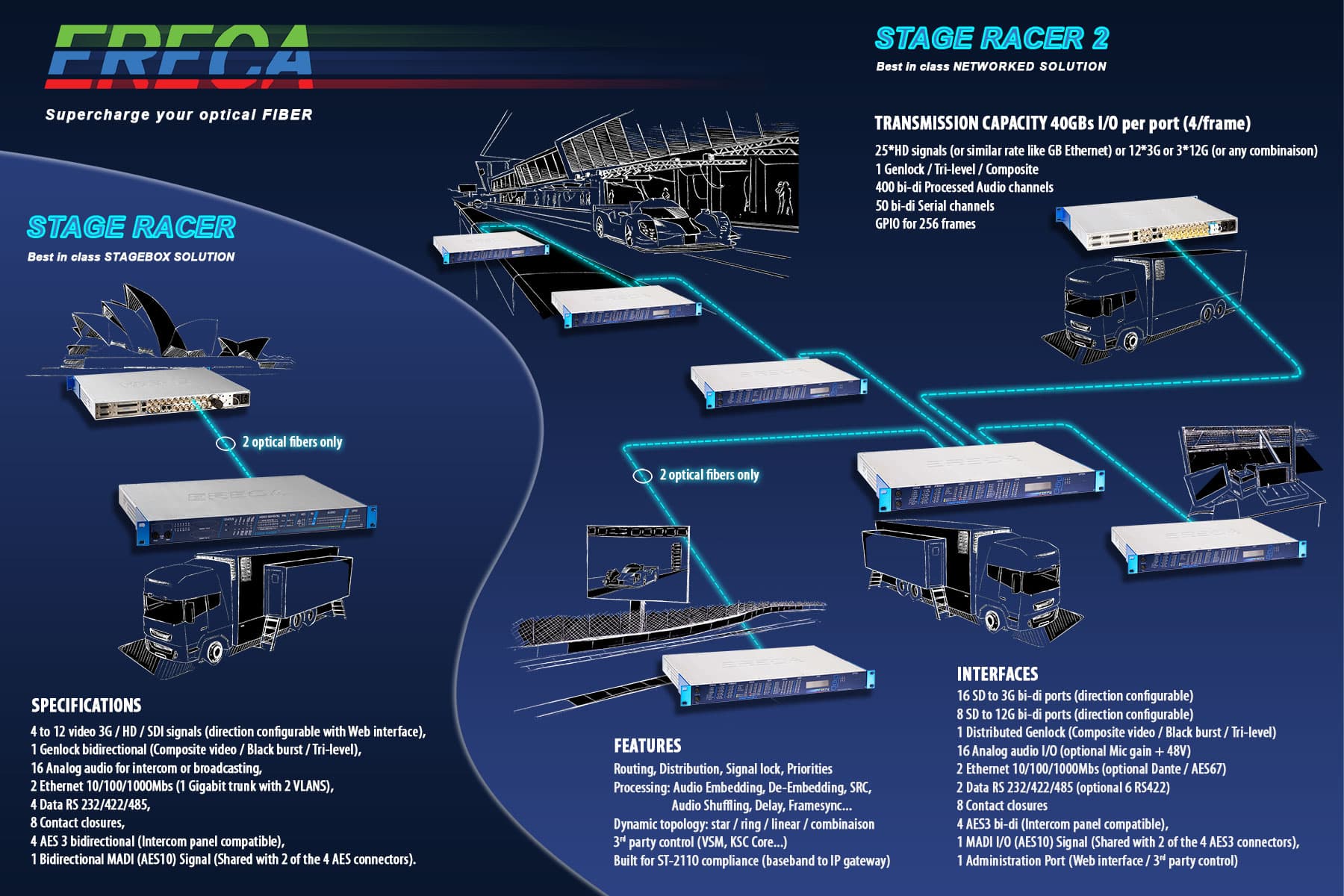

Ereca Stage Racer 2, 12ch, Decentralised Network Solution is a complete optical fiber transmission solution for every broadcast event, ranging from simple OB interconnect to complex star, ring or linear topology spread over a whole TV compound. It also supports long distance transmission for remote production capacity allowing content exchange between distant locations while using dark fiber or SMPTE IP protocols. Stage Racer 2 is designed to accept all kinds of signal on a same device without external adapter. Internally those signals can be associated together / routed / distributed to all other machines of the network. Stage Racer 2 also offers processing capabilities with Audio Embedding/De-embedding, Audio shuffling, Audio SRC, Frame buffering, and Delays. The network can be controlled by a built-in intuitive web interface or with automation systems like Cerebrum, KSC Core, VSM, etc.
