RF Systems

This integrated transmitter combines a high quality HEVC encoder and a DVB–T/UMVL COFDM modulator with our proprietary, industry-leading camera control to create a powerful unit suitable for demanding live broadcast environments. The transmitter comes with a single-link 12G SDI video input that can handle all video formats up to UHD at 60 frames per second, and RF parameters can be configured remotely via a base station without interrupting the production flow. The 10 bit 4:2:2 H.265 encoding is suitable for HDR sources, and when combined with one of our HEVC decoders (e.g. DEC150) it can operate at an ultra-low latency of down to 40 ms (frame rate dependant). The integrated camera control allows for unidirectional and bidirectional camera control, it can connect to both serial and ethernet cameras (ask for more compatibility information), and offers unparallel robustness that is powered by our proprietary bidirectional control algorithm.

The AEON range addresses the requirements of wireless 4K UHD by adopting H.265/HEVC, including MPEG-2 and H.264 for other applications, and its sub-100ms latency makes it very useful for wireless 4K. Add in camera control and return data channel capabilities and AEON-CC becomes a compelling addition to the AEON range.

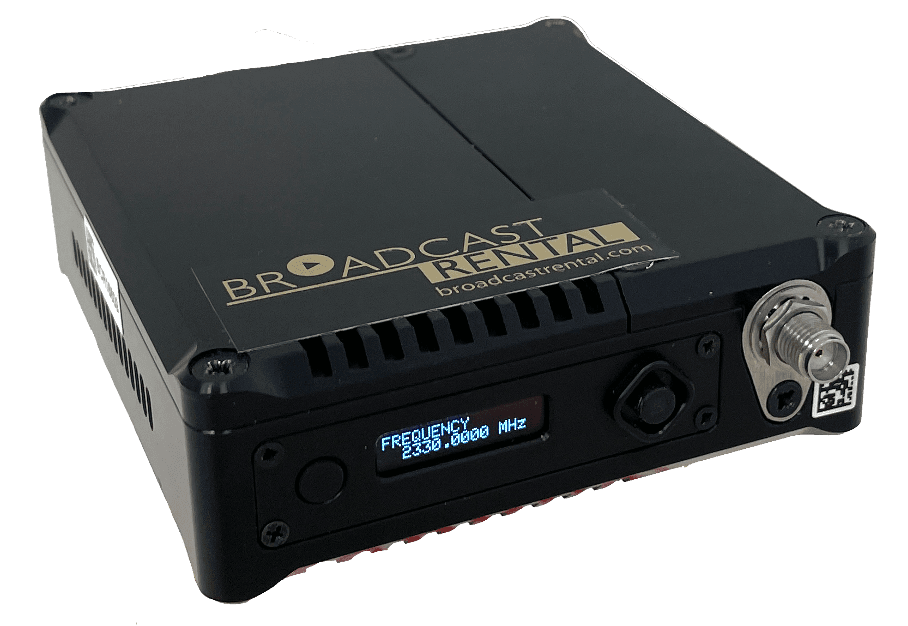

Exceptional quality HEVC encoder with DVBT COFDM transmitter, in a slimline, lightweight package that is ideal for mounting on smaller cameras or unmanned aerial vehicles. With 12G/3G input, you can connect the DBS Nano transmitter direct to HD or UHD equipment. The DBS Nano transmitter has analogue audio inputs and up to four pairs of embedded audio. Automatic support for HD HDR is provided.

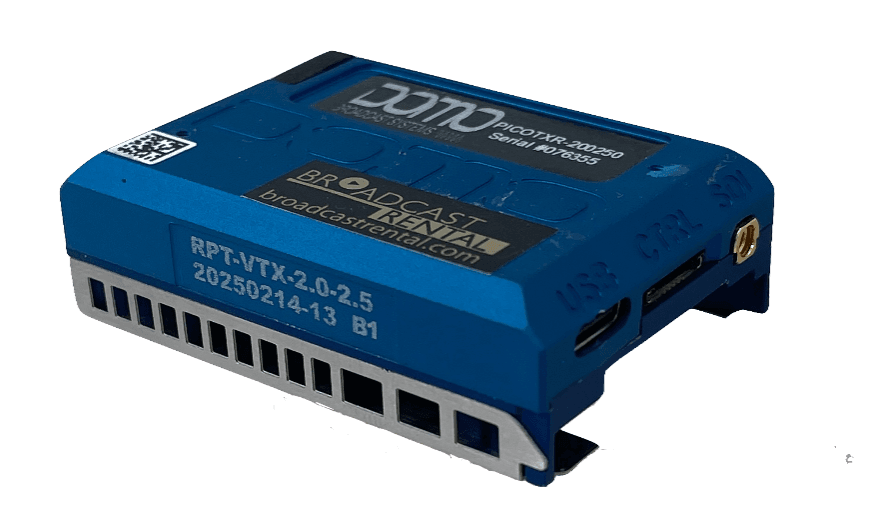

DBS PicoTXR – COFDM digital video transmitterThe DBS PicoTXR is an ultra-miniature COFDM digital video transmitter designed specifically for body-worn and miniature drone applications.
The PicoTXR facilitates the transmission of HDR video in an exceptionally small package. Offering COFDM transmission at 50mW and progressive format video encoding in H.264 or HEVC, the PicoTXR has a volume of only 25 cubic-cm, weighs 52g and consumes less than 4.5W when transmitting 1080p60 at full power.
The exceptionally small size of the PicoTXR allows it to be body-worn mounted, or fitted to the smallest FPV drones. This allows production teams to offer stunning, high-definition images that were not previously possible.
The PicoTXR can be supplied with optional HDMI interfaces and a dedicated, lightweight, body-worn camera. Camera control is achieved through a built-in UHF return link.

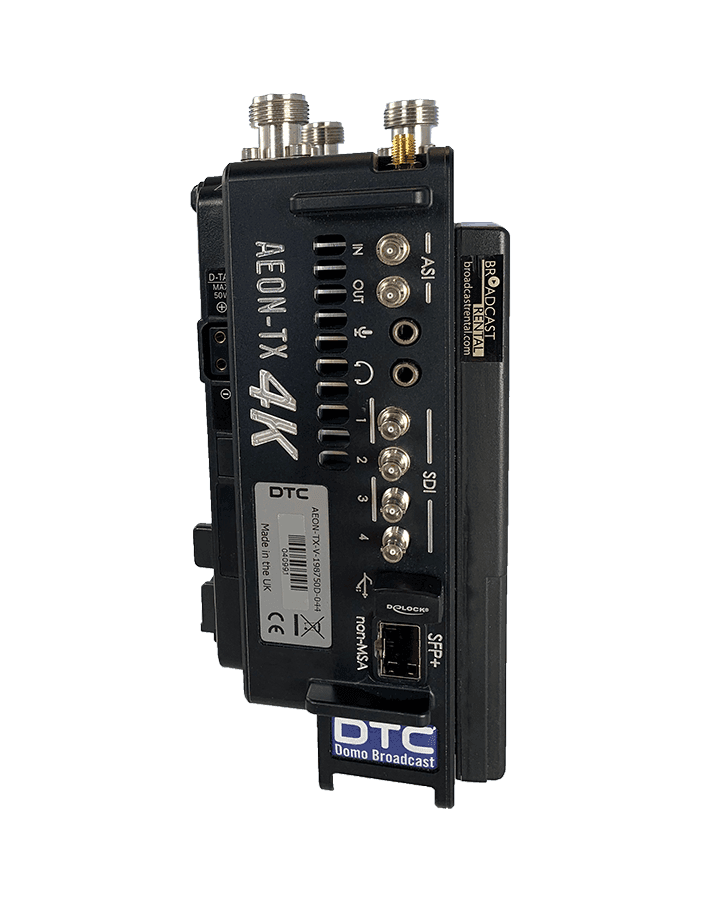

A compact COFDM digital video transmitter with integrated camera controlAEON-TX is a compact and feature-rich COFDM digital video transmitter, specifically designed for high quality wireless link applications. With proven Domo COFDM and next generation HEVC encoder technology at its core enabling Ultra High Definition images, the small size and actively cooled enclosure give maximum operational performance. Designed to offer future proof connectivity, the unit supports native 12G-SDI, dual 6G-SDI, quad 3G-SDI, as well as SFP+ expansion. Two true balanced audio inputs are included with phantom power. The transmitter has an integrated control panel with sunlight-readable OLED display covering all major functions and has 16 user-defined presets, as well as IP based control. The HEVC codec used in AEON products offers a step change in compression efficiency over H.264 systems, whilst maintaining low end-to-end latency suitable for live events.

A compact and feature-rich COFDM digital video transmitter, specifically designed for high quality wireless link applications. With proven Domo COFDM and H.264 encoder technology at its core enabling High Definition images the small size and ultra low power consumption give maximum operational performance. Designed to offer maximum flexibility, the unit has a variety of video input options including composite, 3G-SDI and HDMI plus true balanced audio. The transmitter has an integrated control panel with sunlightreadable OLED display covering all major functions and has 16 user-defined presets. A wide range of swappable frequency bands are available from 200MHz to 8.9GHz. Integrated UHF band Camera Control.

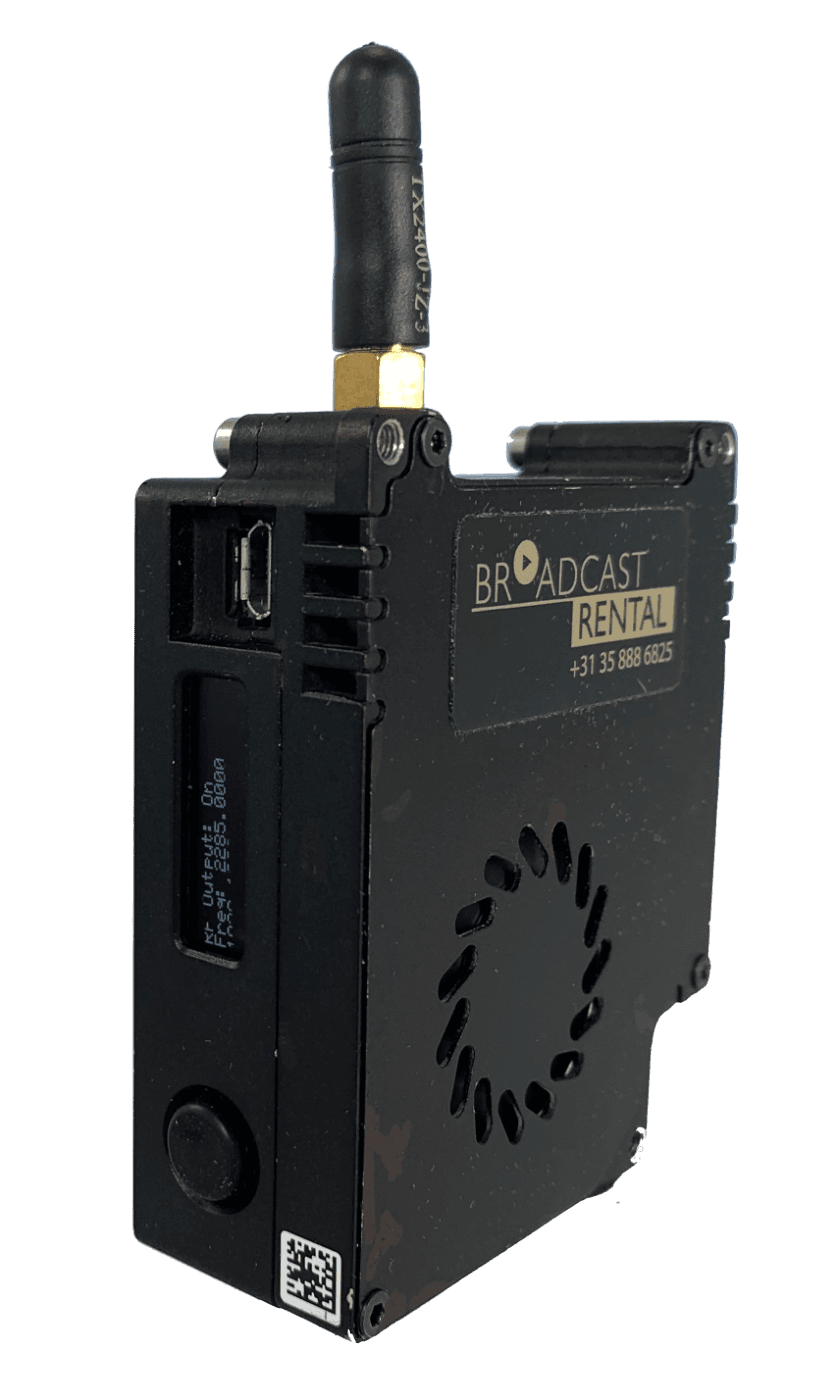

The SOLO7 Broadcast Nano Transmitter is a development of the original Nano now incorporating a control panel, robust broadcast standard connectors and forced cooling, providing much improved thermal performance. It enables production teams to offer viewers stunning high definition images using H.264 encoding with ultra-low latency, in situations not previously possible due to equipment size and battery runtime constraints.The small size and ultra-low power consumption make the Broadcast Nano Transmitter ideal for a range of uses from Point of View to body worn video applications. Whether it be live sports, live events, on-board motor sport applications or UAV drone installations, the Broadcast Nano provides true long range rugged HD broadcasting from these increasingly popular applications for the first time. Optional lightweight, low power consumption amplifiers are also available for even greater range capability.

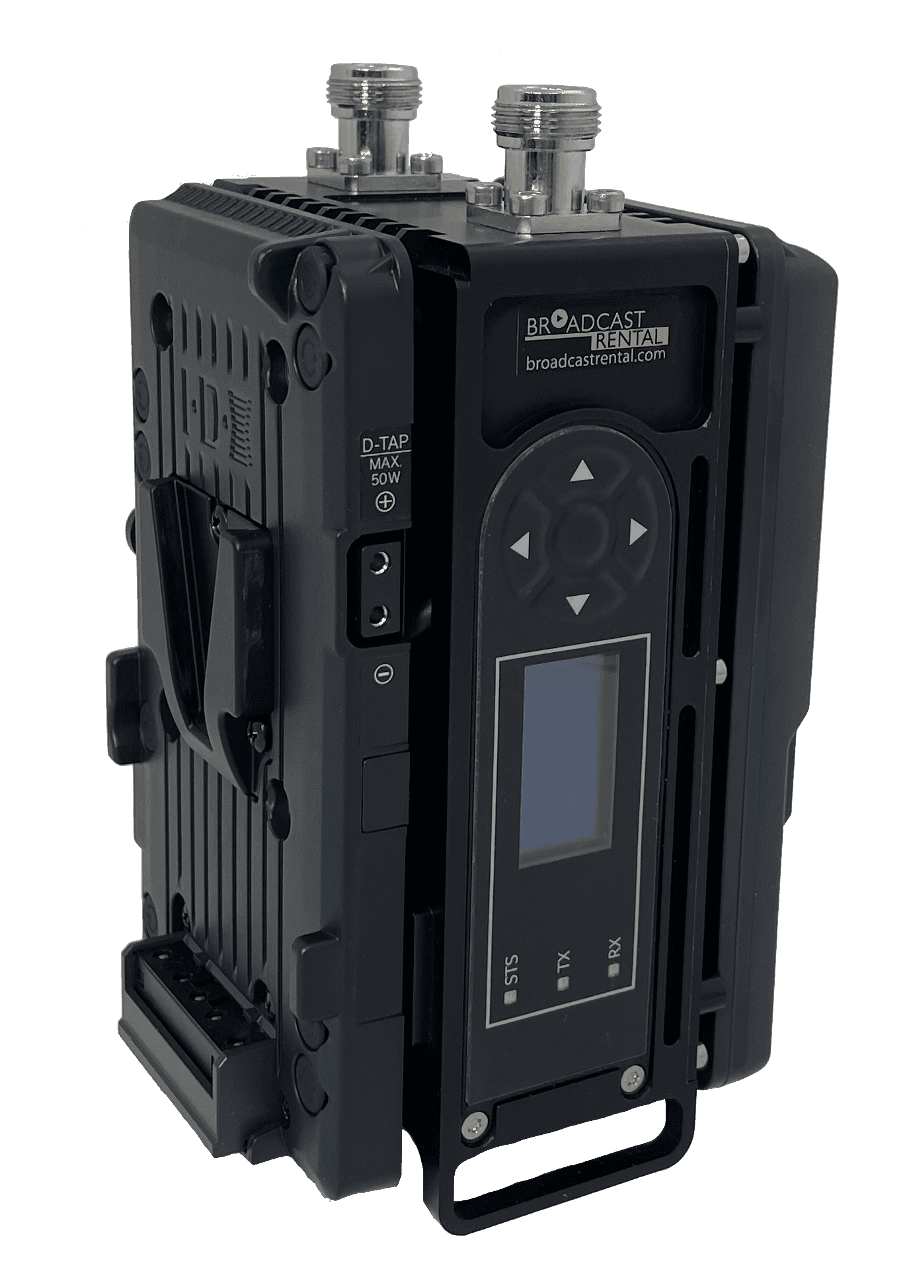

The Connected Live ecosystem offers an all-in-one, plug-and-play radio camera system for simplifiedwireless workflows, offering forward path video, return video, and camera control through a single unit.
The system is based on our new proprietary OFDM bidirectional data radio and an integratedencoder/decoder platform. This enables forward path and return video in 10-bit HDR 4:2:2 up to 1080p60frame formats, with a licensable 4K upgrade in the future. Our well-known camera control is integrated inboth the camera unit and the base unit to simplify the setup and minimise installation time.
IP trunk transparency, advanced network configurations, PoE, and flexible RF configurability (in bothlicensable and licence-free frequencies) add an additional layer of functionality that will suit more demandingusers. Simultaneously, a range of user levels and recallable configurations allow the end user to choose thelevel of complexity that is required, and ensure quick and effortless deployment.

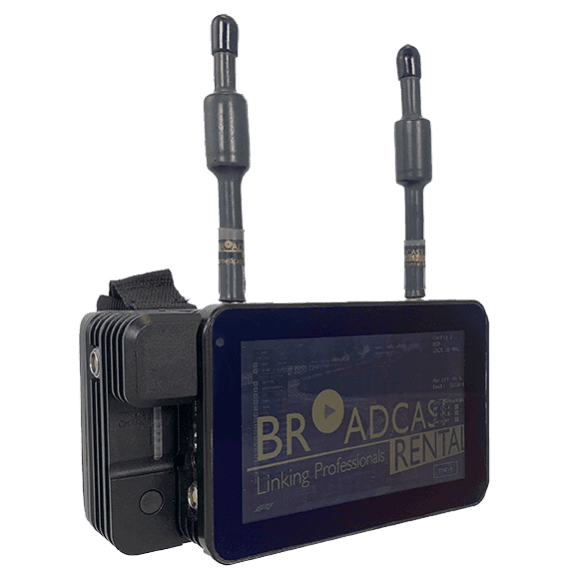

The Domo Tactical Communications (DTC) SOLO 7 NanoVue ‘HD’ Receiver is a fully portable digital diversity receiver. The enhanced faster microprocessor provides increased performance and responsiveness resulting in faster IP streaming. The NanoVue HD Receiver incorporates an extremely flexible decoding platform with low delay SD and HD H.264 decoding capability.
The NanoVue ‘HD’ receiver has a high resolution daylight viewable video touch screen with digital diversity receiver, antennas with optional clip-on battery in a proven, durable and compact lightweight housing. It is ideal for use as a confidence or monitoring receiver for tactical use, or for surveillance on the move, perimeter security and fire control.

DBSs' NanoIP is a revolutionary IP Mesh module that ensures you bring IP control to your broadcast workflow, making your job easier while ensuring high-quality performance.
Are you finding IP Mesh radio's user interfaces too tech heavy? The NanolP's easy-to-use front panel lets broadcast engineers configure remotely and see the network's status. With autofind mode, your NanoIP can search and discover your current IP mesh setup, removing the need for manual setup.
Based around DTC's game-changing SOL8SDR architecture and offering up to 2×100mW output power, the NanoIP provides access to a wide range of COFDM waveforms, including the latest high datarate MeshUltraTM platform.

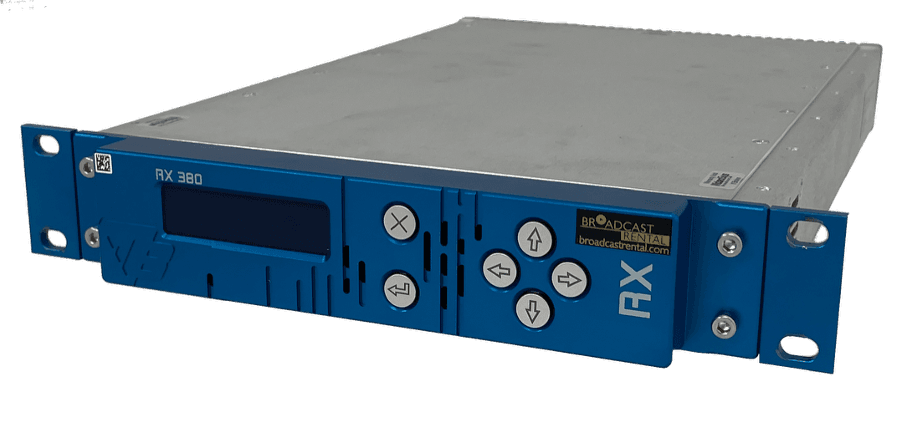

The RX380 is a standalone COFDM diversity receiver with 8 RF inputs, which can demodulate both DVBT-T and UMVL signals. When paired with our wide range of external downconverters, the RX380 can be used to receive a broad range of frequencies (single and dual pedestal), and when paired with one of our HEVC decoders (e.g. DEC150) it is ideal for receiving 4K video feeds from our COFDM transmitter range (e.g. TX160). With up to 4 seperate demodulators and 2 independent ASI outputs the receiver is very versatile, and can handle any broadcast requirement. The ASI inputs allow for more receivers to be cascaded to achieve a 16 RF input diversity system in order to expand the range and coverage.

The excellent RF performance is complemented by an extremely flexible decoding platform, with low-delay SD and HD MPEG2 and H.264 decoding ensuring compatibility with all Domo Broadcast and most third party encoders. An optional second decoder can be enabled, allowing two SD or HD signals to be decoded. Multiple output formats are offered with composite and SDI outputs in SD and HD-SDI including embedded audio. ASI transport stream in/out is available and HDMI outputs are provided for use with domestic TVs. A comprehensive graphical on screen display (OSD) is available for monitoring and diagnostics, which can be enabled or disabled separately on the two video outputs.

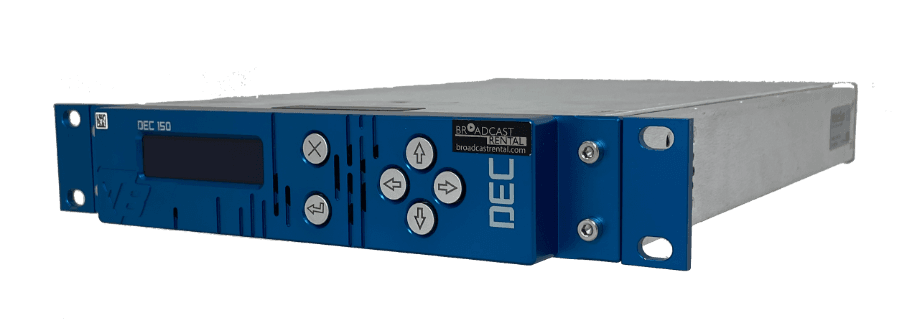

The Videosys Camera Control Decoder provides low latency HEVC decoding. Ideal for adding decode support for the Videosys Transmitter to existing receiver systems, as well offering Bi Directional capability with your CCIDU suitable for live events.The decoder has an integrated control panel similar to the other Videosys Family products that will aloud the user to access all major functions, as well as the Web Interface that enables you to monitor the health of the entire RF chain in real time. This innovation ensures optimal performance and reliability for all your broadcasting needs..

The AEON HEVC Rack Decoder provides low latency HEVC Ultra High Definition decoding from ASI/IP input. Ideal for adding decode support for the AEON Transmitter to existing receiver systems. Each decoder can support single 4K orup to 2 HD streams via quad 3G-SDI outputs, and has two stereo balanced audio outputs available. The decoder has an integrated control panel with sunlight-readable OLED display covering all major functions, as well as IP based control.
The HEVC codec used in AEON products offers a step change in compression efficiency over H.264 systems, whilst maintaining low end to end latency suitable for live events.

The system enables the antennas to be placed up to 1700m away with power on a SMPTE cable or up to 20kms if powered locally using TAC fibre. 12V power is provided for downconverters, allowing compatibility with DTC, VisLink and other manufacturer’s products. The camera control ODU (OutDoor unit) can be powered from the 12V XLR connector to control up to 4 cameras (Sony, Grass Valley, Panasonic, Hitachi, Ikegami).

The Videosys Tactical Ethernet Fibre System is an extension solution for outside broadcast and instillation applications. The solution offers many advantages including compact design, extended RF bandwidth state of the art RF modules and Ethernet over fibre data link. The Fibre system is be fitted with ST/FC-APC/S2000 connectors. It requires local 12v power and cover large distances (up to 20km) away from the base unit. 12V power is provided for down converters, allowing compatibility with DTC and other manufacturers products. Allows prime location of receive unit in OB area for maximum flexibility and monitoring. The optical levels can also be viewed by the Web GUI.

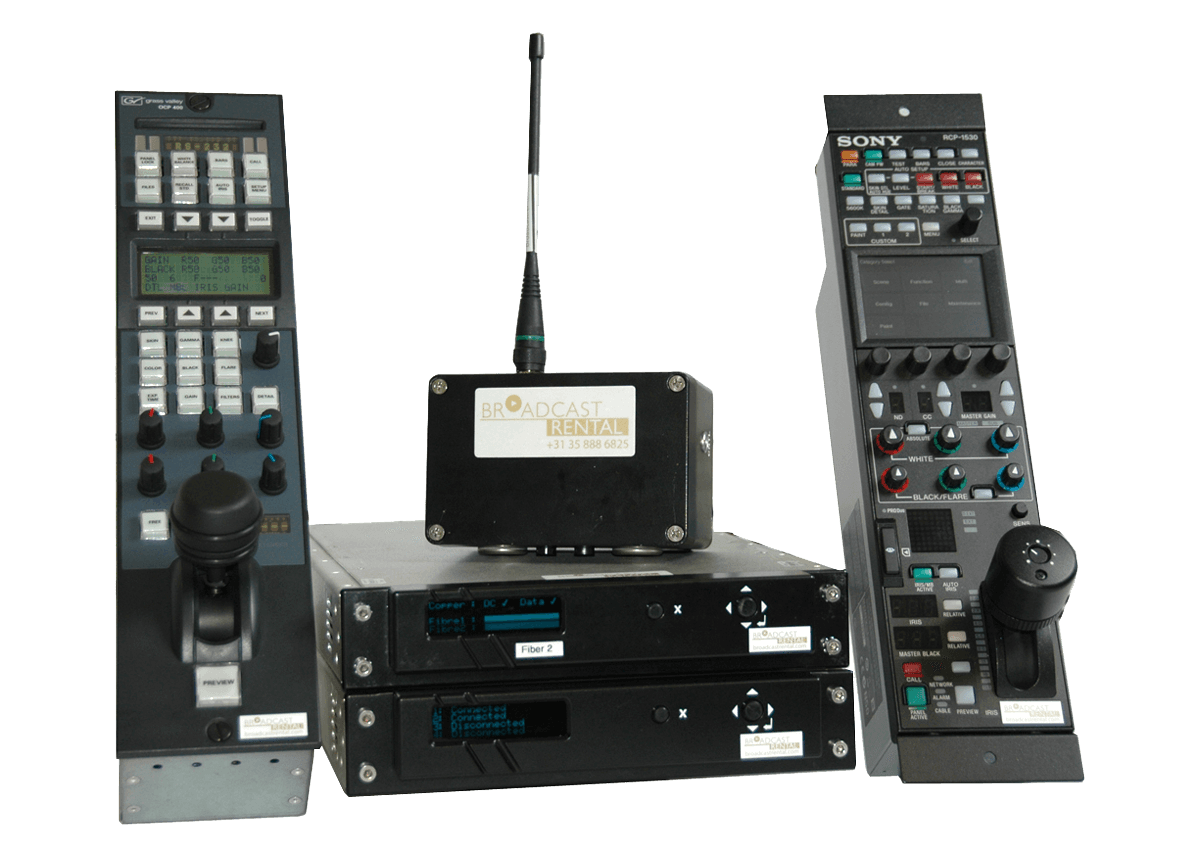

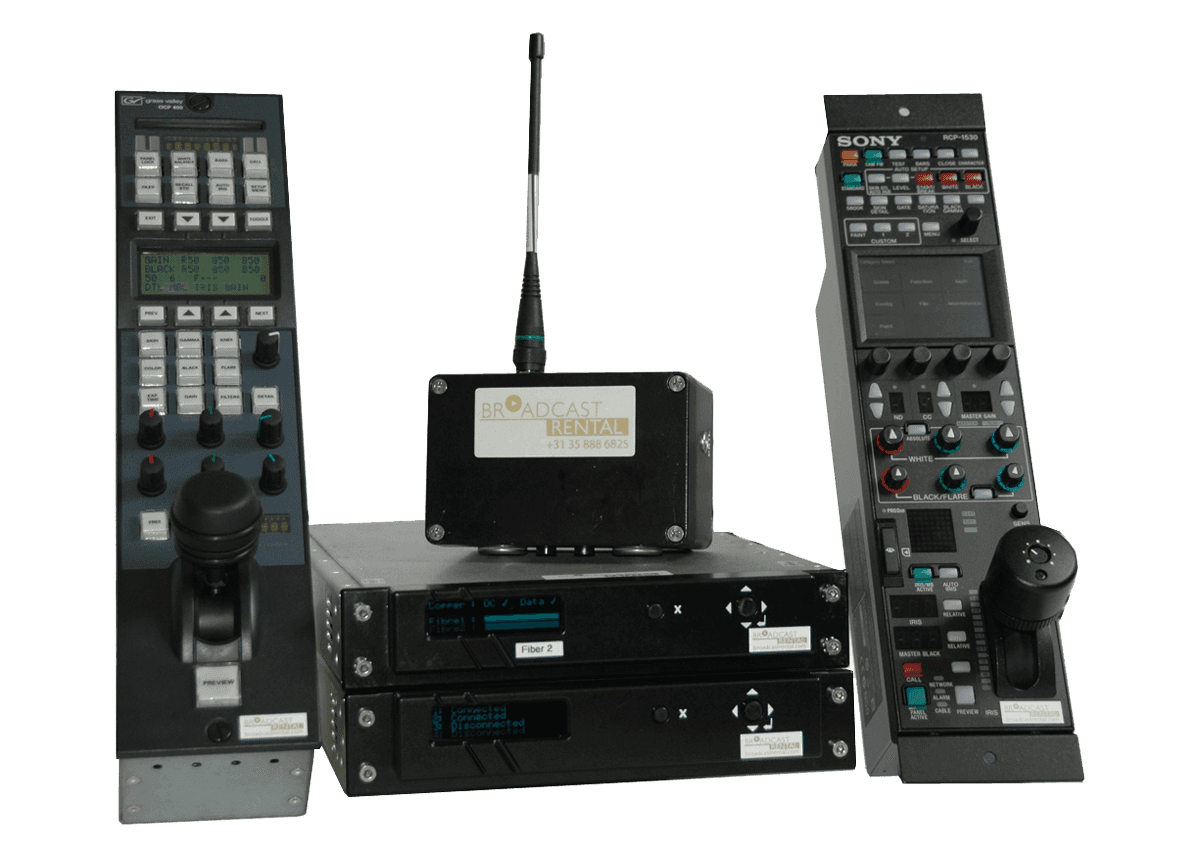

The two-box solution – an indoor unit (IDU) interfaces with the OB truck systems and an outdoor unit (ODU) to transmit the RF signal. Each IDU can accommodate up to 4 cameras. It supports Grass Valley, Sony, Ikegami and Panasonic camera’s. Control of most user camera functions via standard camera manufacturers RCP. Red and green tally are available through the camera or externally.
The system now supports legacy cabling or IP support for most camera manufacturers.

Streamline your live sports broadcasts with the Pico DTX Data Transmitter. Designed for operational efficiency, it puts full control of PicoTXR Video Transmitters at your fingertips. Fully integrated with CyanView RCP camera control, it minimizes the need to move around the venue, letting you focus on delivering top-tier coverage. Monitor battery levels and system status in real-time, switch to standby mode to conserve battery, and change frequencies at a moment’s notice to ensure seamless operation.

The Victor Matrix Router Series provides a full fan-out high performance. 16 Inputs x 16 Outputs Distributive Victor IF / Extended L-band (50-2500MHz - KA-band ready) Matrix with LNB powering, local and remote control and variable gain, all housed in a compact 1U high shelf.
Model VTR-80 provides enhanced features such as software enabled expansion, providing the flexibility of being able to purchase a part populated Victor (starting from 4 inputs x 4 outputs) and then expanding the inputs and outputs (up to 16 inputs x 16 outputs) via a software key.

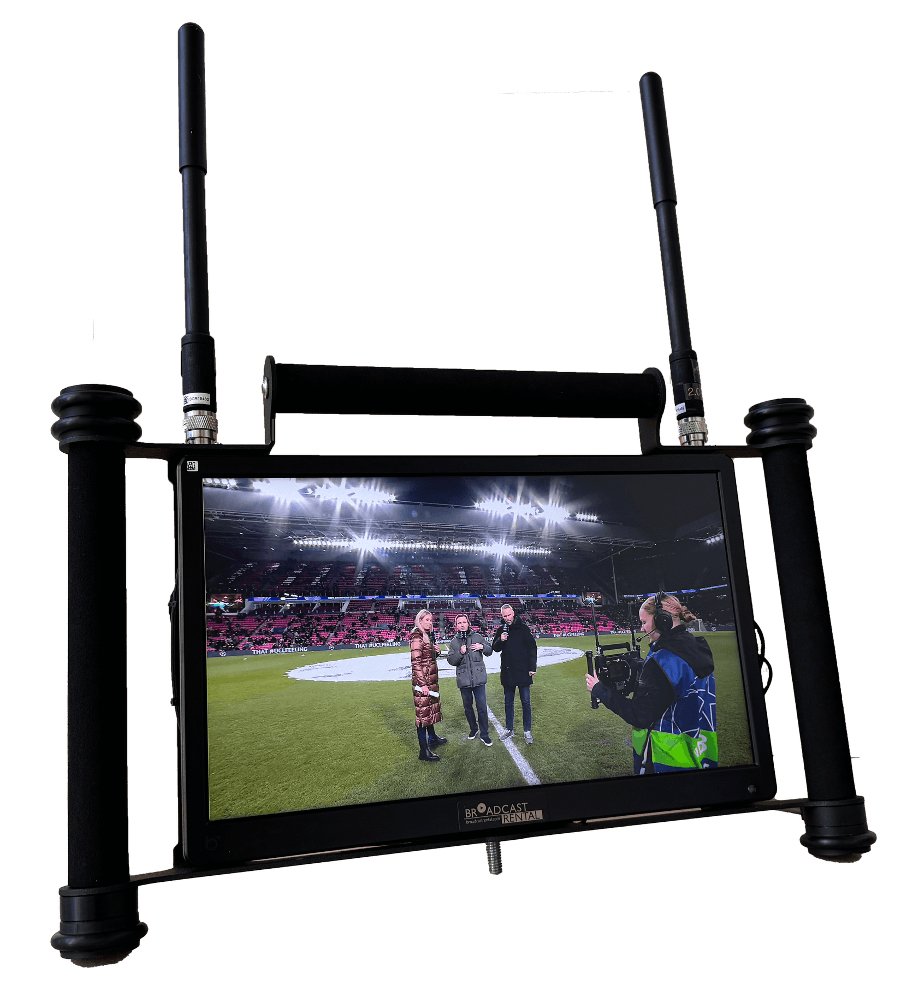

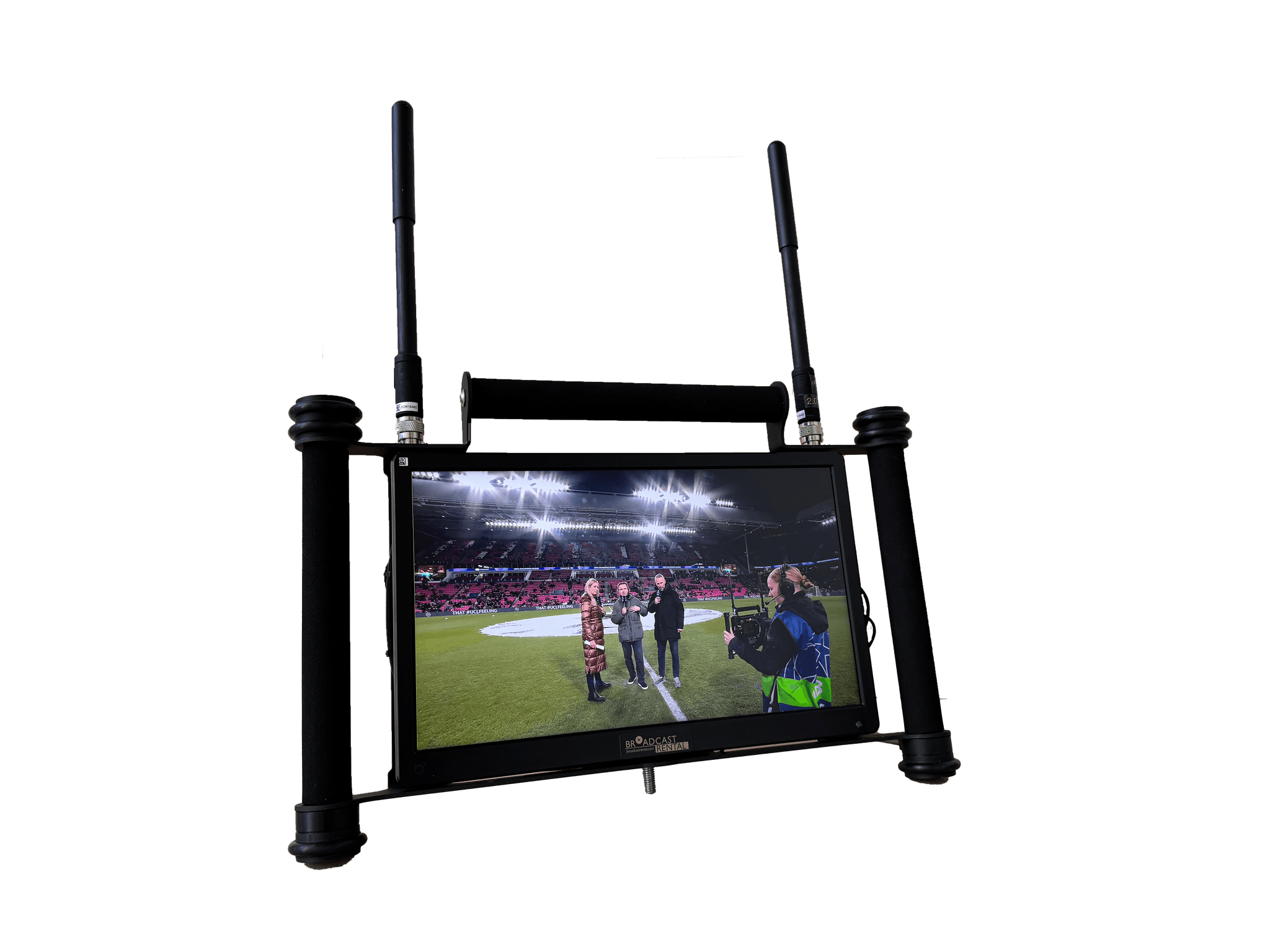

Broadcast Rental Wireless Monitor - Teletubbie

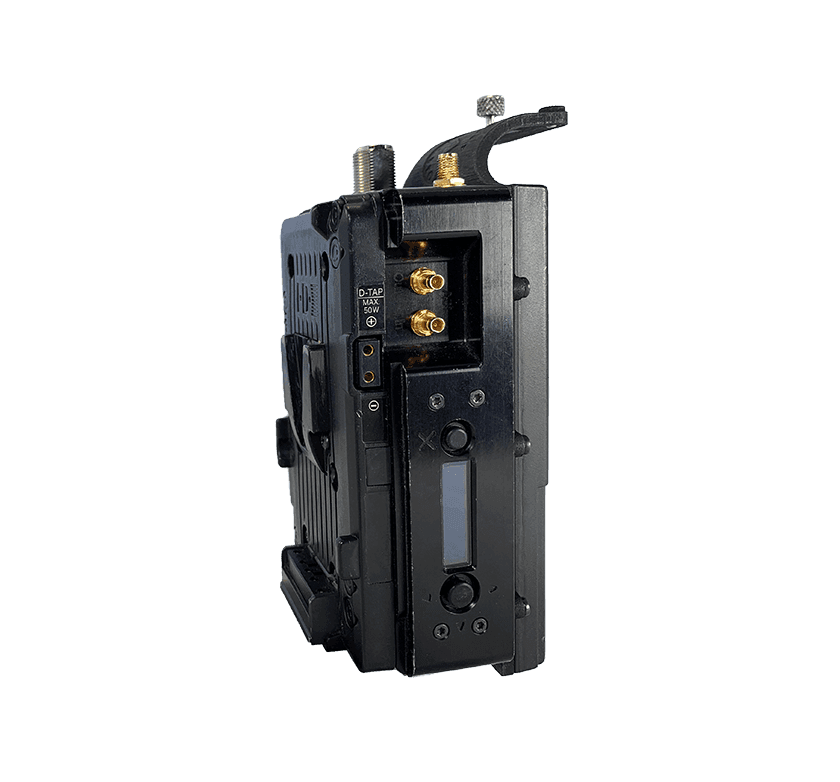

The engineering team at Broadcast Rental have designed their own version of the Grass Valley LDX transmission adapter.
Broadcast Rental LDX Databack is a replacement for the triax or fibre adapter on the Grass Valley LDX series camera. With VideoSys Camera Control integrated and together with the DTC OBTX, AEON or VisLink L1731 transmitter it’s a perfect RF Wireless camera for integration in any Grass Valley production. The camera can be controlled through the standard Grass Valley OCP 400.

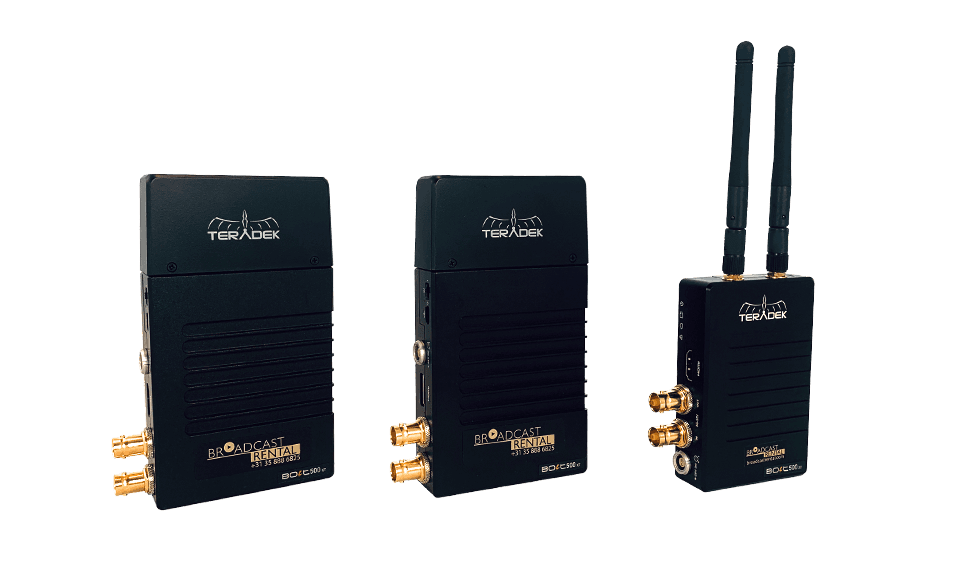

A key feature of the Bolt XT is its backward compatibility with any Bolt of the same range, Sidekick II / LT / XT, and 703 Bolt, giving users more flexibility building onto their existing systems or linking with others already on set. Unlike alternative wireless video systems, Bolt XT includes a unique AES 128 encryption algorithm to protect your video footage, ensuring that only authorized receivers can connect to your transmitter.
Each transmitter includes an HDMI, 3G-SDI and looping 3G-SDI output. Receivers feature an HDMI output as well as dual 3G-SDI outputs. While wireless performance is critical on set, so are practical mounting options that ensure optimal performance and a quick set-up.

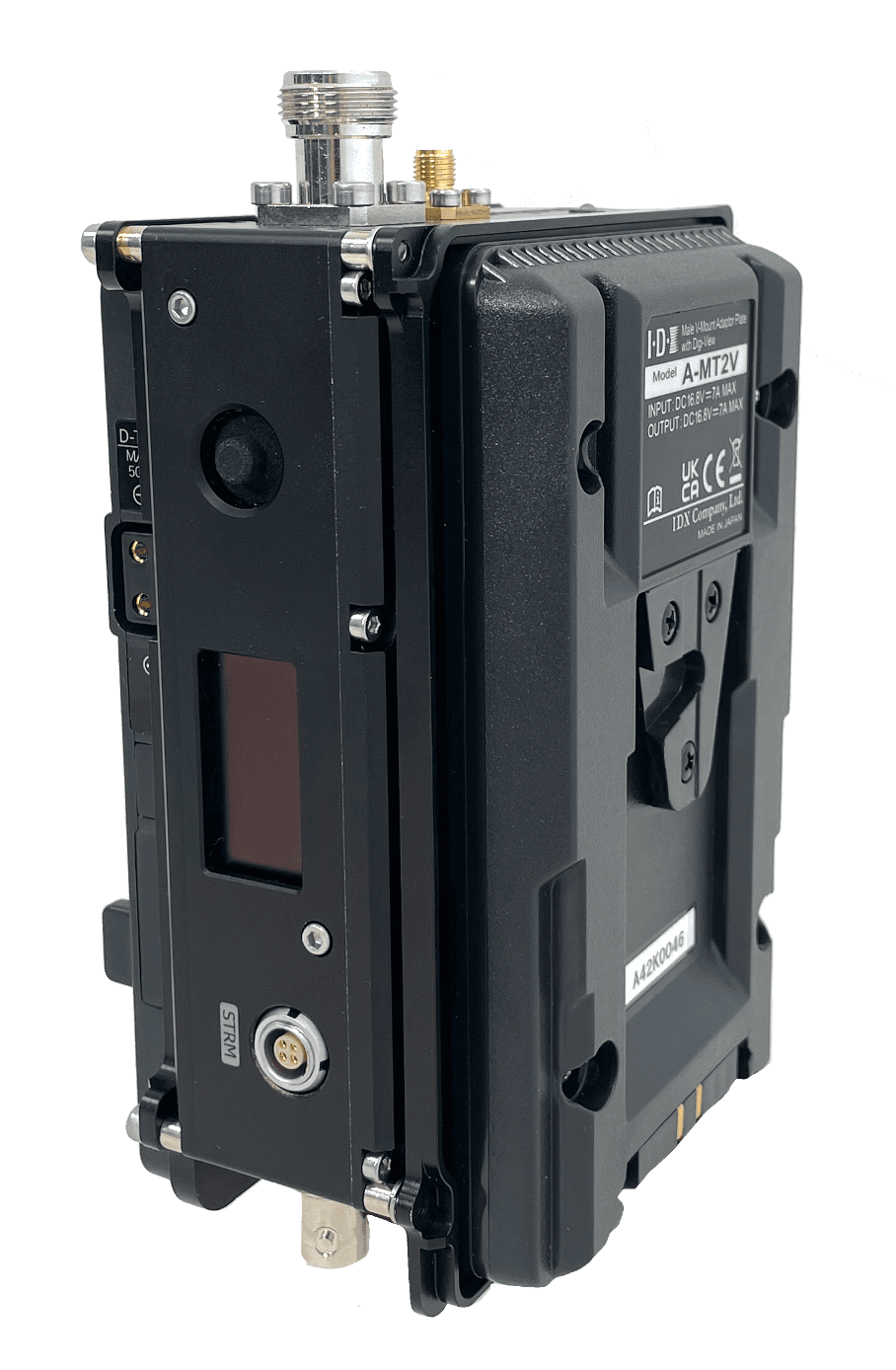

Videosys TX160 CC Transmitter

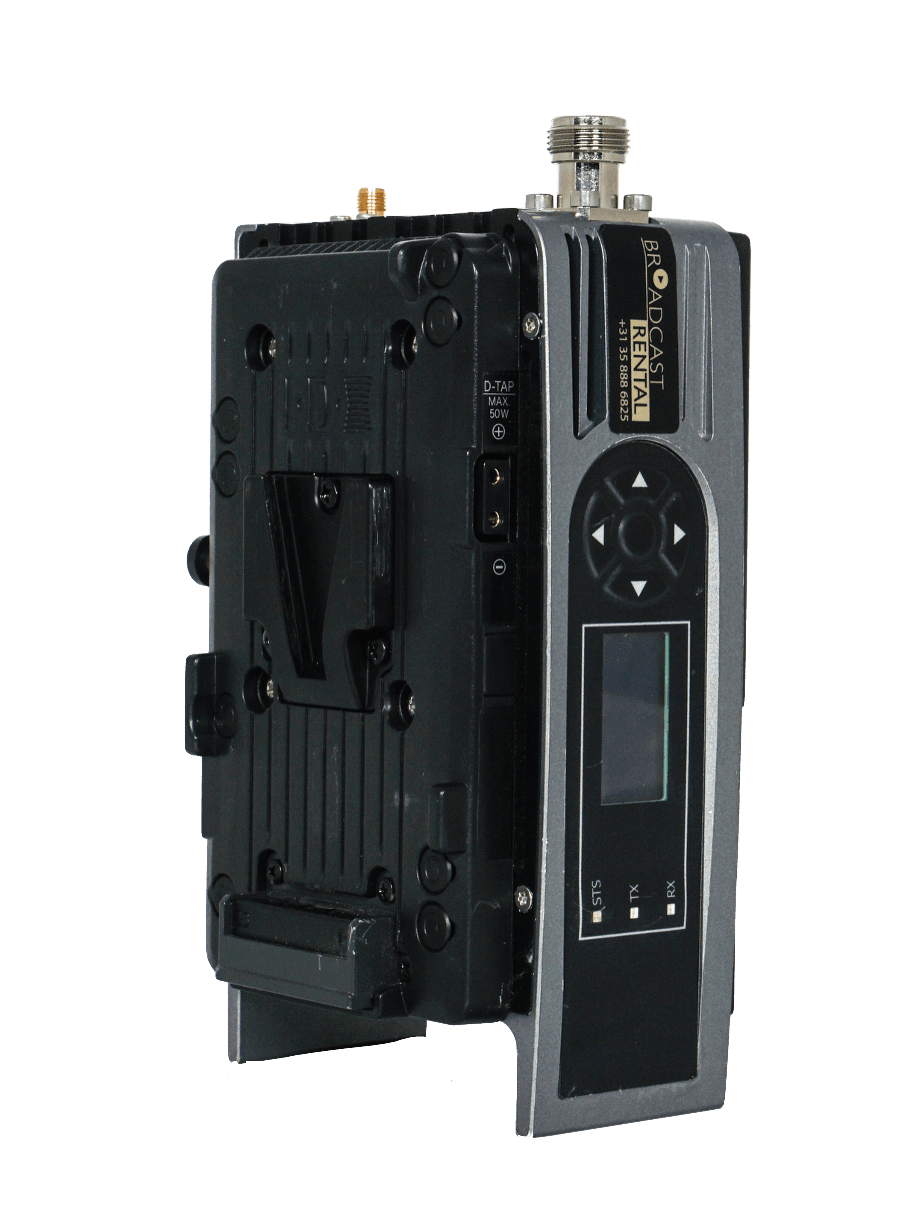

Videosys AEON CC Transmitter

DBS HEVC Nano 2.5 GHz Transmitter

DBS PicoTXR, 200250, Transmitter

DTC AEON-TX UHD, 2.5GHz, Transmitter

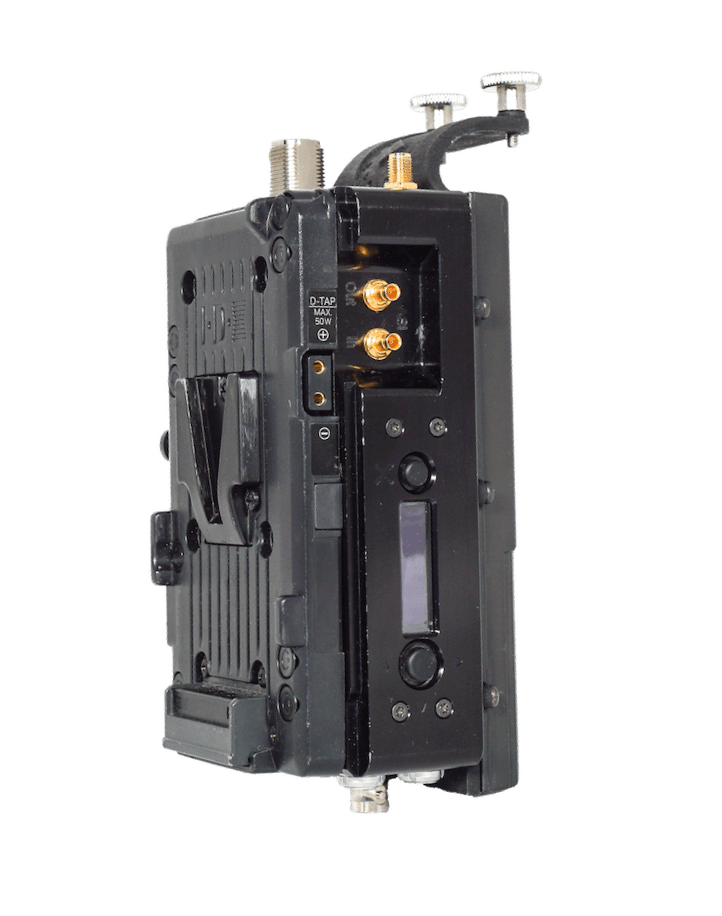

DTC OBTX Solo 7 CC, 2.5GHz, Transmitter

DTC Nano Solo 7, 2.5GHz, Transmitter

Videosys Connected Live System

DTC Solo7 NanoVue HD Receiver

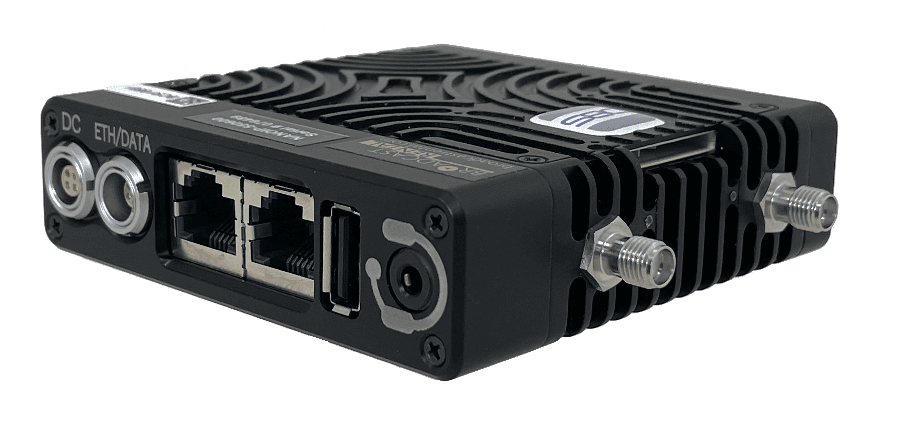

DBS SOL8SDR Mesh 5.5-6 GHz

Videosys RX380 Receiver

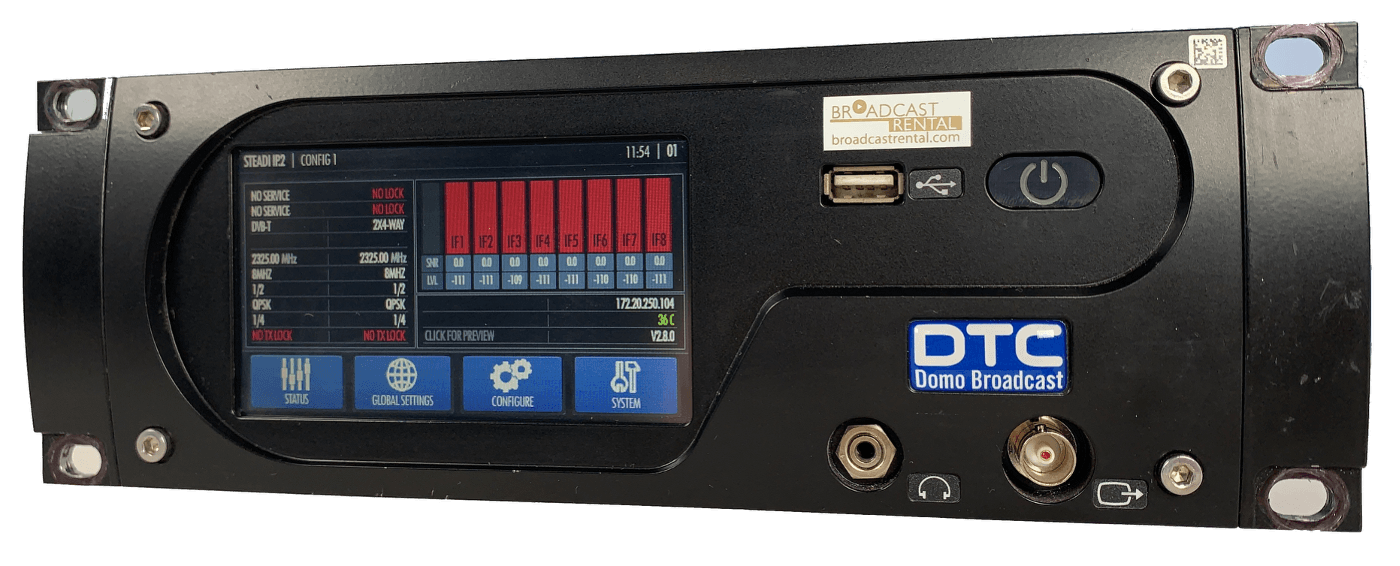

DTC ProRXD Receiver

Videosys DEC 150 HEVC Decoder

DTC AEON HEVC Decoder

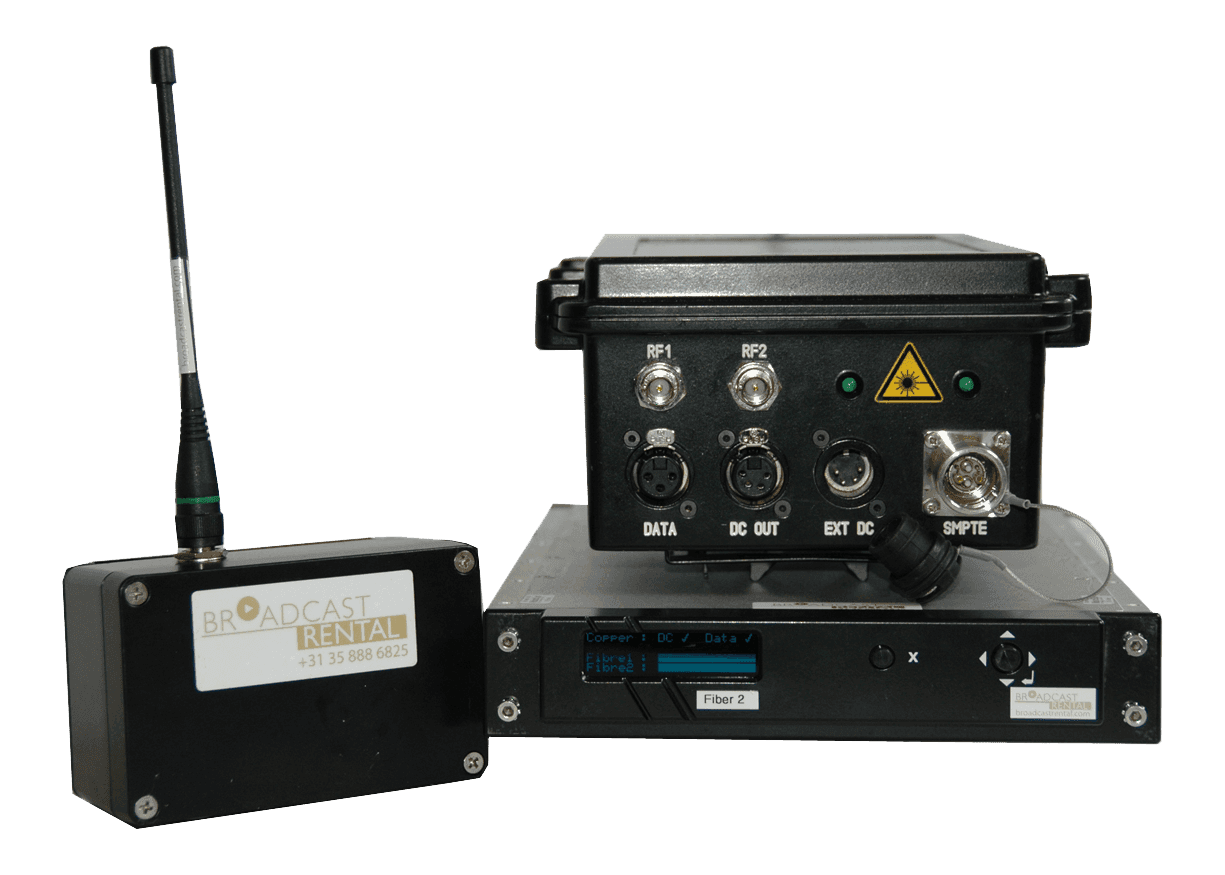

Videosys RF over Fiber

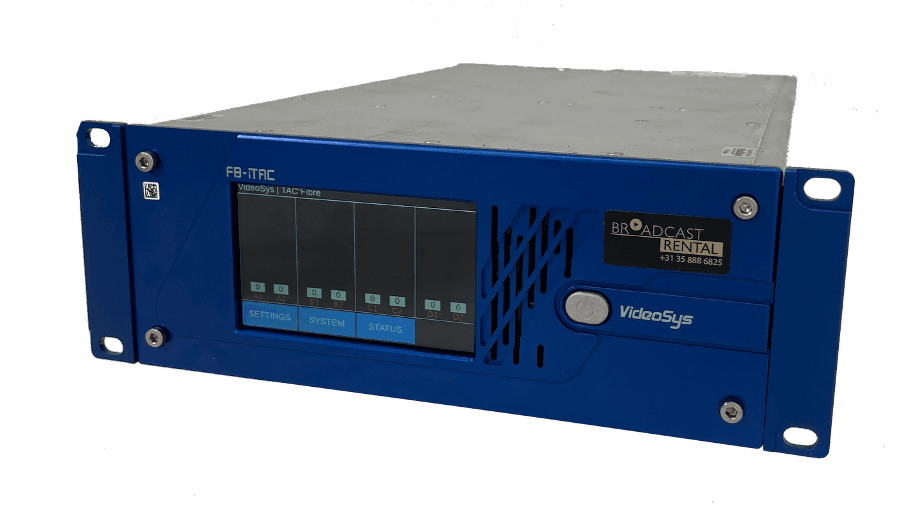

Videosys TAC fiber set SC/APC

Videosys Camera Control Set (capable to rack 4 camera's)

Pico-DTX-450480, Data Transmitter

ETL Victor Series Matrix 16x16 L-Band Matrix RF router

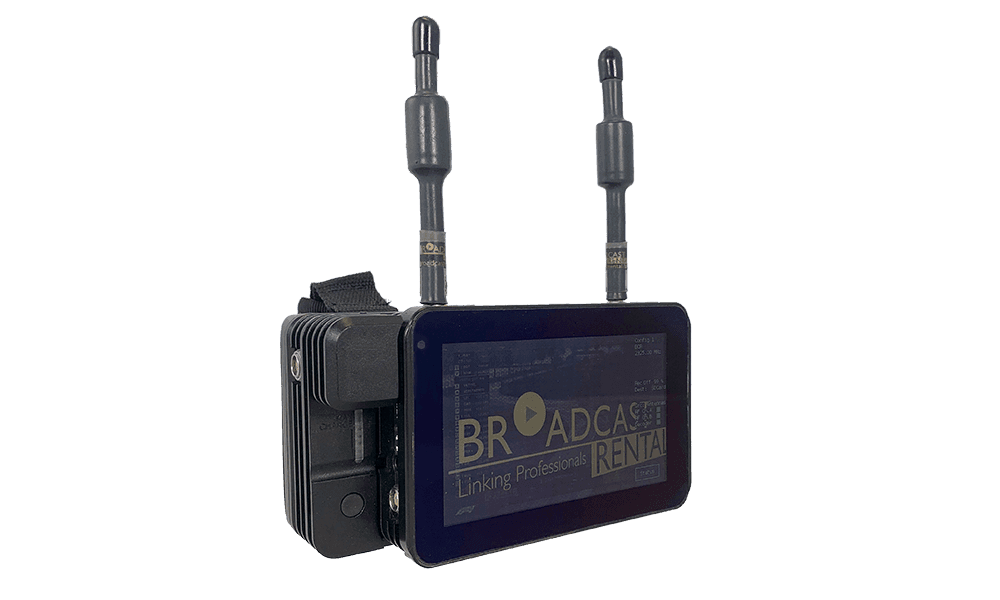

Wireless Monitor (Teletubbie)

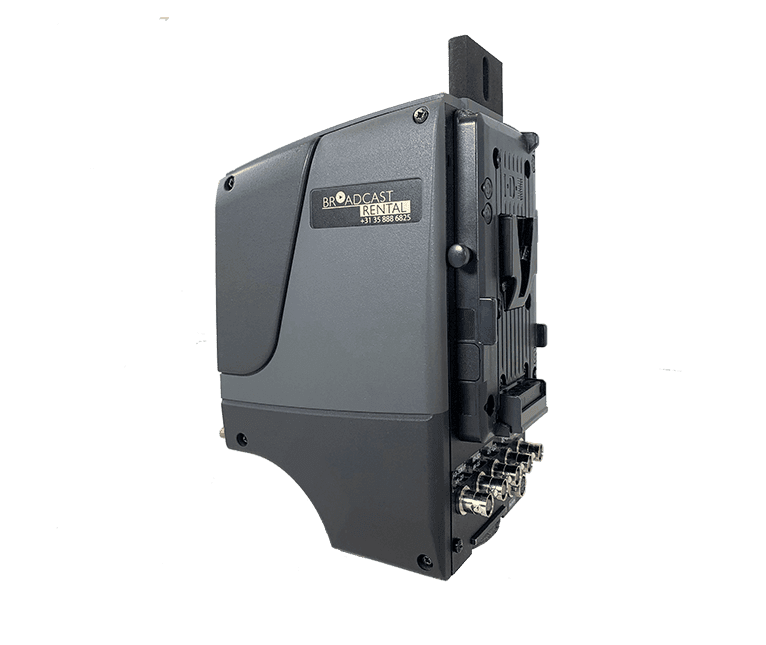

BCR Grass Valley LDX Data Back

Teradek Bolt 500 XT set
