Graphics / Video Mixer / Routers

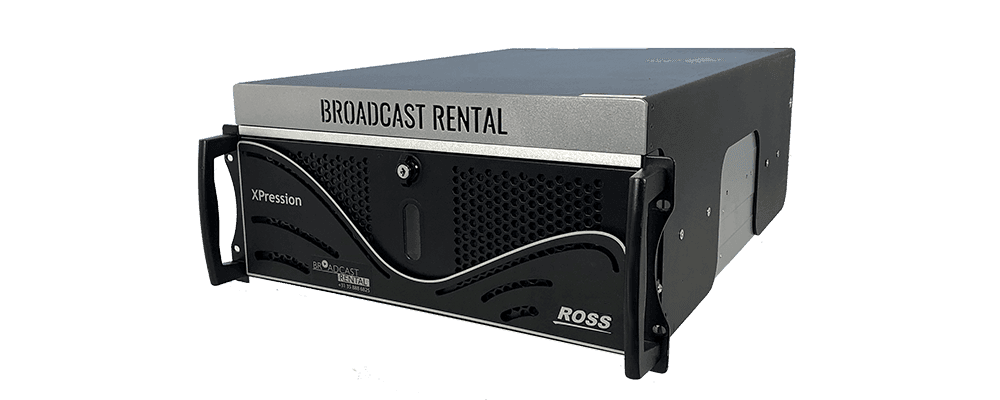

XPression is a true real-time motion graphics render engine with no lag between keyboard entry and system operation. Unlike other systems which depend on constant disk access and seek times on the drive, XPression uses intelligent caching to provide real-time access to content.
XPression software editions now define the channel configurations. Standard Definition all the way to UHD/4K in SDI, NDI™ and now SMPTE-ST; XPression can provide the right configuration for your productions. With up to 8 active Video I/O ports on the 4RU HD-SDI system, select the edition which is right for you. Users can assign video I/O ports as active video inputs, video or key outputs and hardware preview outputs.
Choose between HD-SDI, 12G or IP-based video configurations, and have the confidence that the 4RU XPression engines will scale with the needs of your facility. Increase the channel capacity by upgrading the XPression Software edition.

You can find all the info at this link.

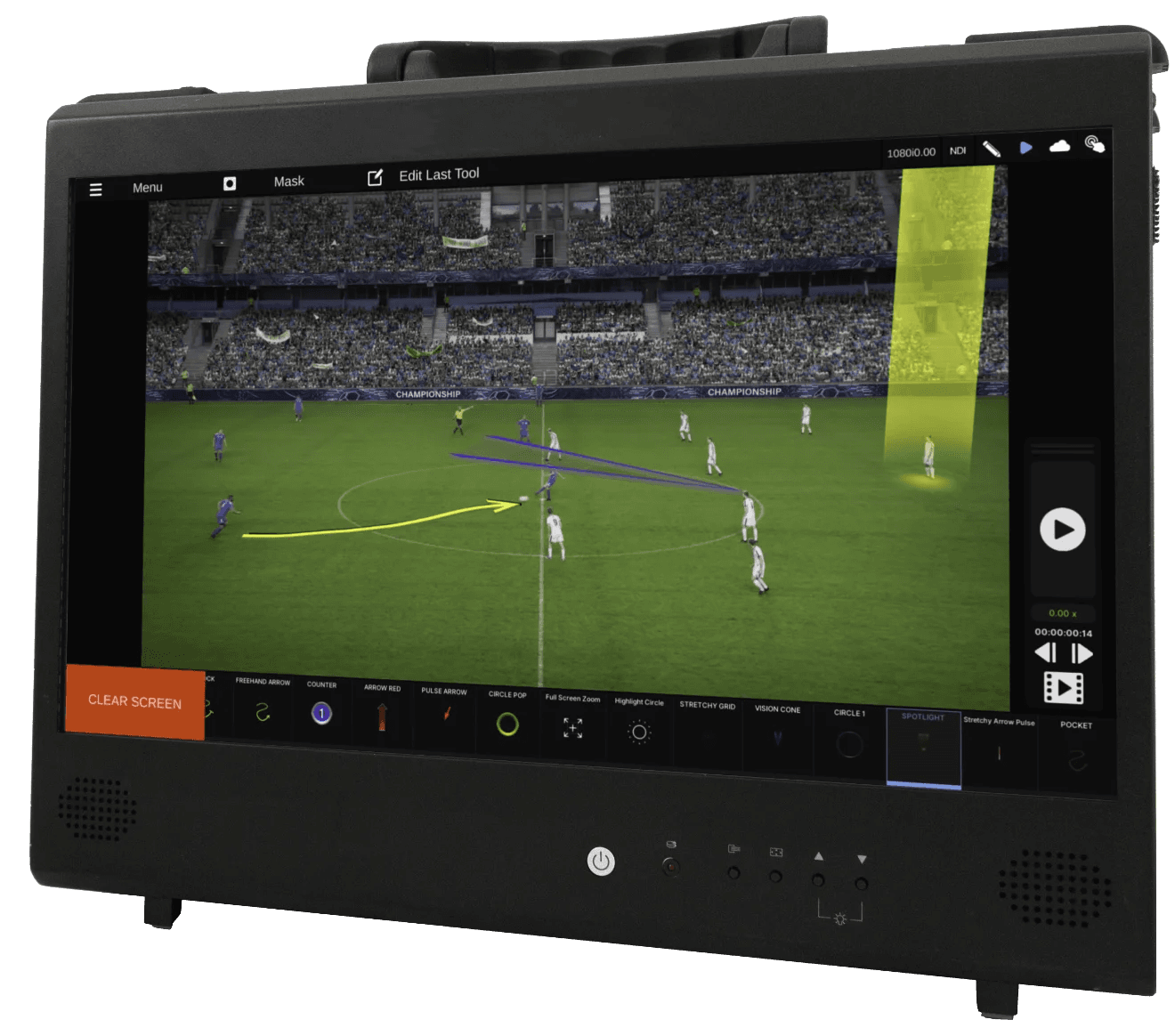

https://chyron.com/products/all-in-one-production-systems/telestrated-replay-and-sports-analysis/

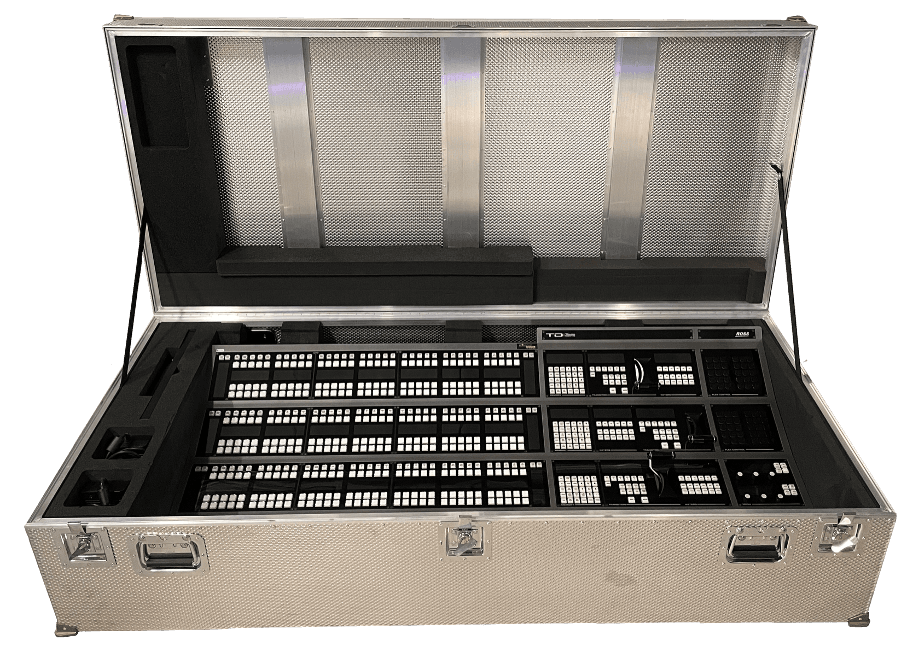

TouchDrive™ production control panels provide unprecedented efficiency and ease of use. The high-res, touch-enabled LCD displays on the panel provide an unmatched level of system control and allow operators to quickly and easily modify effects, bus maps, and more.
The stunning TouchDrive control surfaces can be paired with Ultrix Acuity, Ultrix Carbonite, Carbonite Black Plus, Carbonite Ultra 60, Carbonite Ultra or any Graphite all-in-one platform.
https://www.rossvideo.com/products/production-switchers/touchdrive-control-panels/

The Ross Video CB2-PANEL Carbonite Black 2 Control Panel is a professional-grade 2 ME production switcher designed to bring the award-winning performance of the Carbonite series into a compact and efficient form. Boasting 16 programmable buttons, the CB2-PANEL is built for control rooms and mobile production environments where space is at a premium but performance is non-negotiable.
Delivering the same processing power and advanced features as its larger siblings, the CB2 is ideal for broadcasters seeking full functionality without a large footprint. With powerful MEs, 4 built-in MiniMEs, 4 MediaStore channels, frame synchronizers, format converters, dual-head MultiViewers, and Ross LiveEDL support, the CB2 is engineered for seamless live production workflows.
Whether you’re upgrading your OB truck or building a compact broadcast studio, the CB2-PANEL puts professional-grade switching at your fingertips.

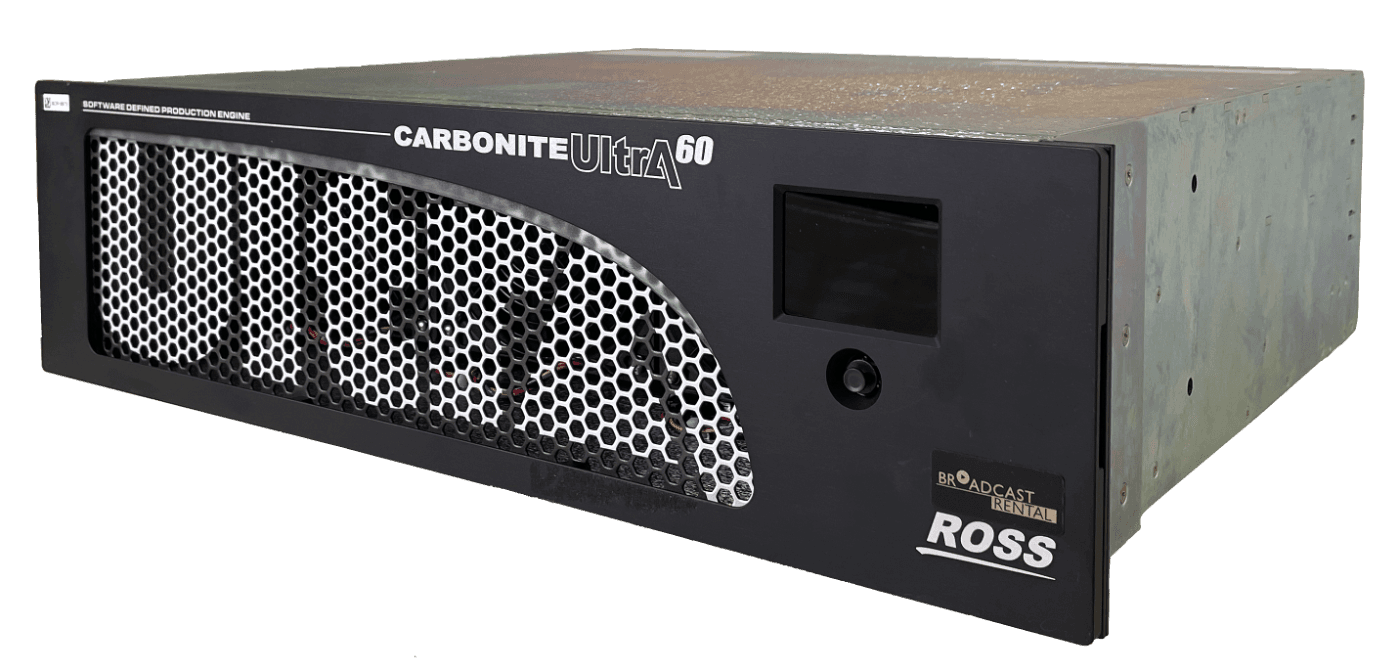

Bigger. Faster. More PowerfulSince its introduction, Carbonite Ultra has become the benchmark for performance and ease of use for mid-sized production switchers. So how do you make a really good thing even better? Grow it bigger!Introducing Carbonite Ultra 60, a totally new class of production switcher from Ross that stands on the shoulders of Carbonite Ultra – an industry-leading product that has won the hearts and minds of operators around the world.

Get professional broadcast style workflows!For the ultimate in professional control you can add an optional ATEM Advanced Panel! Although you can use ATEM Constellation with the software control panel, using an ATEM Advanced Panel is so much faster! ATEM Advanced Panels open up the power of your ATEM Constellation because they give you an enormous amount of control, allowing you to setup more complex effects. It's also a nicer way to work because you have physical broadcast quality buttons, knobs and a t‑bar fader so you can access all features in the switcher, all at the same time. Imagine using the 4 M/E model to access all M/Es simultaneously, with an input button for every single SDI source on the ATEM Constellation switcher!

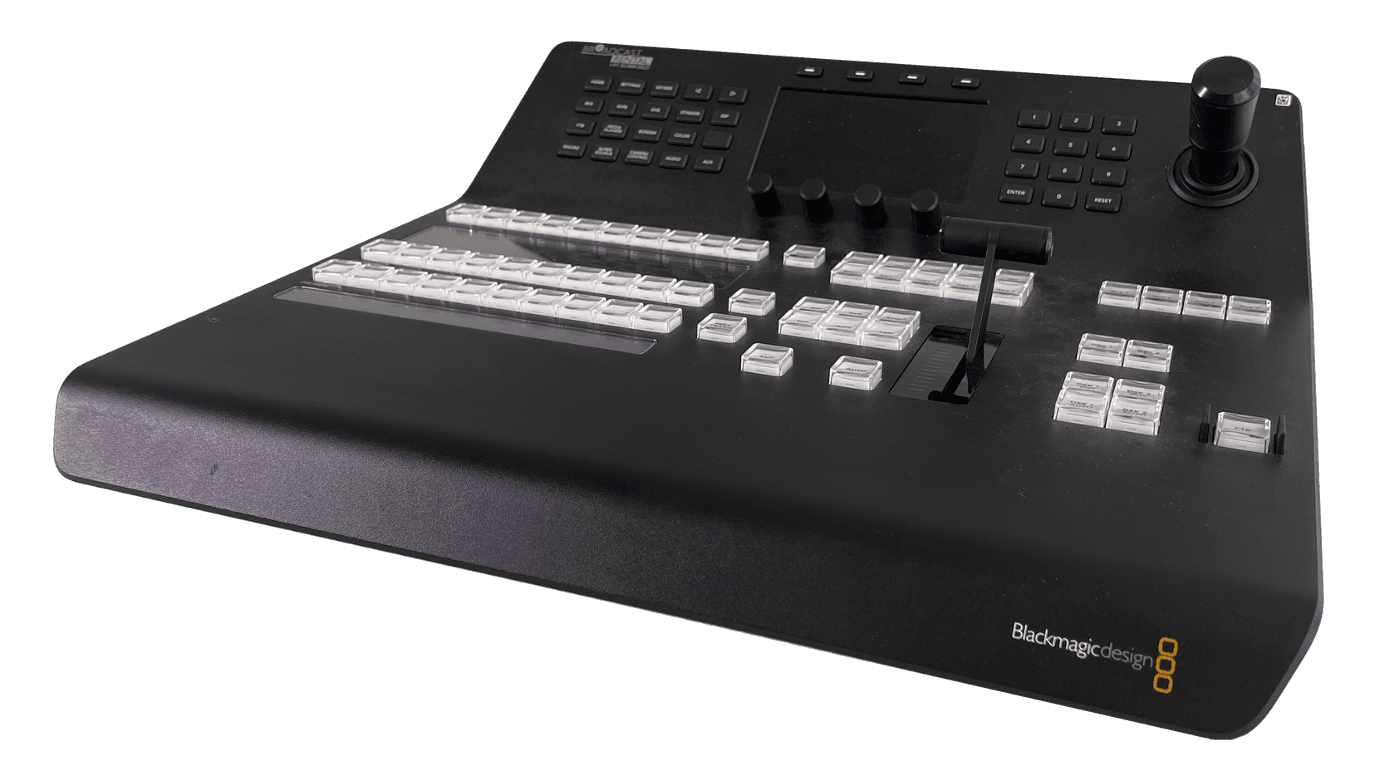

ATEM 1 M/EAdvanced Panel 10Compact 1 M/E hardware panel with 10 buttons and 1 system control LCD screen with customizable button colors and input labels. Includes a joystick for DVE positioning and a professional T‑bar fader.

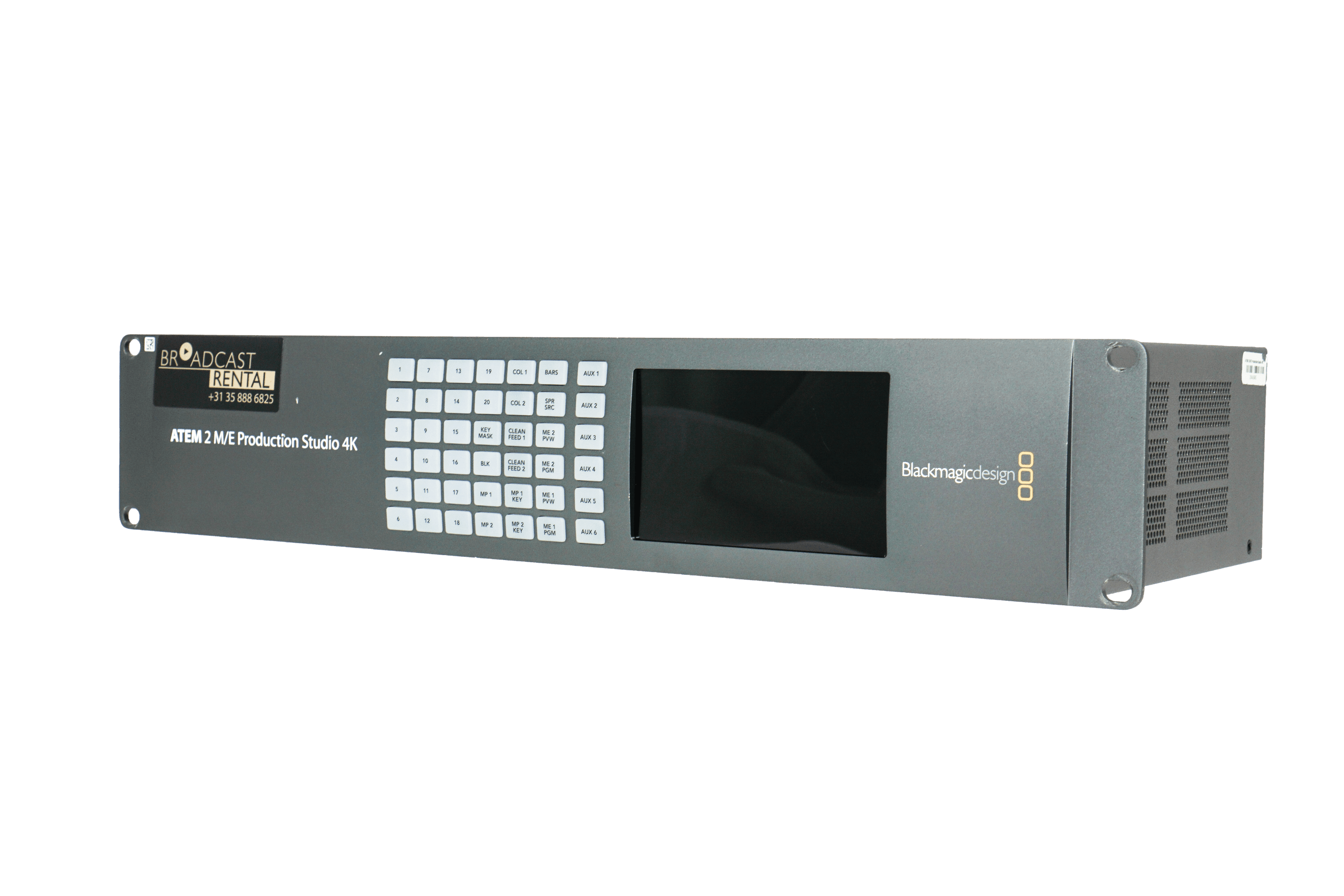

The ATEM 2 M/E Production Studio 4K includes 20 independent SD, HD or Ultra HD 4K video inputs with each input featuring a full frame synchronizer. ATEM 2 M/E Production Studio 4K also includes all the features expected from a professional switcher, including chroma key, transitions, DVE, media pool, downstream keyers, audio mixer, two multi view outputs and 6G-SDI and HDMI 4K video connections.

The FR12 is as attractive as it is clever, with its appealing smart door that’s an LCD display designed to help you with monitoring your system, troubleshooting, configuring, and control via a high-resolution, full-size touchscreen panel.
The FR12 is powerful too, boasting up to 288 x 288 SDI ports with a 6144 x 6144 TDM audio fabric, up to 288 frame syncs, 288 clean quiet switches and up to 48 x 100 PIP multiviewers. It also has up to 8 SDPE blades that can be configured as a single 8ME Ross Acuity switcher, 8 independent Ross Carbonites or even a 4ME Acuity and 4 independent Carbonites. In short, the routing, processing, and switching capability in the FR12 is very hard to beat.

Ultrix is a state of the art platform that uses a variety of great technologies to provide users with a flexible, fast, and intuitive router that improves workflows, save costs, and provides the satisfaction that comes with a reliable system designed with the future in mind.

Ultrix simplifies live video production by integrating routing, signal processing and switching equipment into a compact, format-agnostic platform — reducing costs and maximizing flexibility.
Ultrix’s all-in-one design minimizes infrastructure equipment, reducing setup time, cabling, and operational complexity. This streamlined approach allows your team to focus on delivering high-quality productions without the hassle of managing numerous separate components.
Ultrix significantly lowers capital expenditure by minimizing the number of required devices, space required, and weight, reducing the transportation costs of mobile production. Its energy-efficient design also minimizes power use and cooling requirements, resulting in substantial operational savings.
Ultrix’s software-defined, modular functionality makes it easy to expand I/O capacity, scale your production, and adapt it to new formats and standards. That ensures your system remains current with evolving workflow demands, extending the lifespan of your investment and keeping your technology relevant.

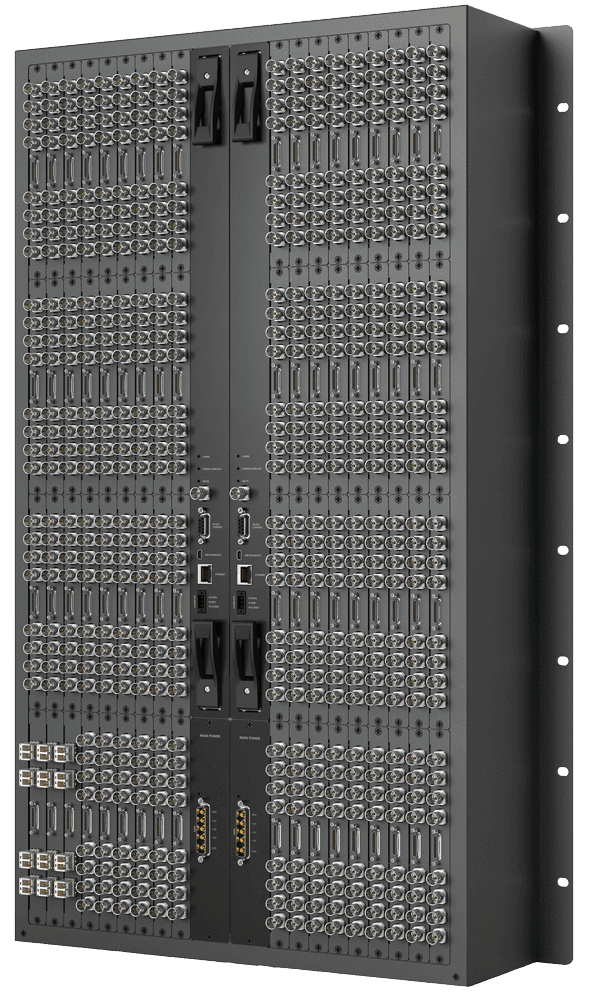

The BlackMagic Universal Videohub can be configured with 3G HD-SDI or with optical fiber interface. Any configuration up to 288×288 is possible.True redundancy is achieved with the failover crosspoint board and redundant power supplies. The router can be controlled through BlackMagic Smartpanels or a computer (with touchscreen interface).
The BlackMagic Universal Videohub 288×288 will be delivered in a full rack flightcase.

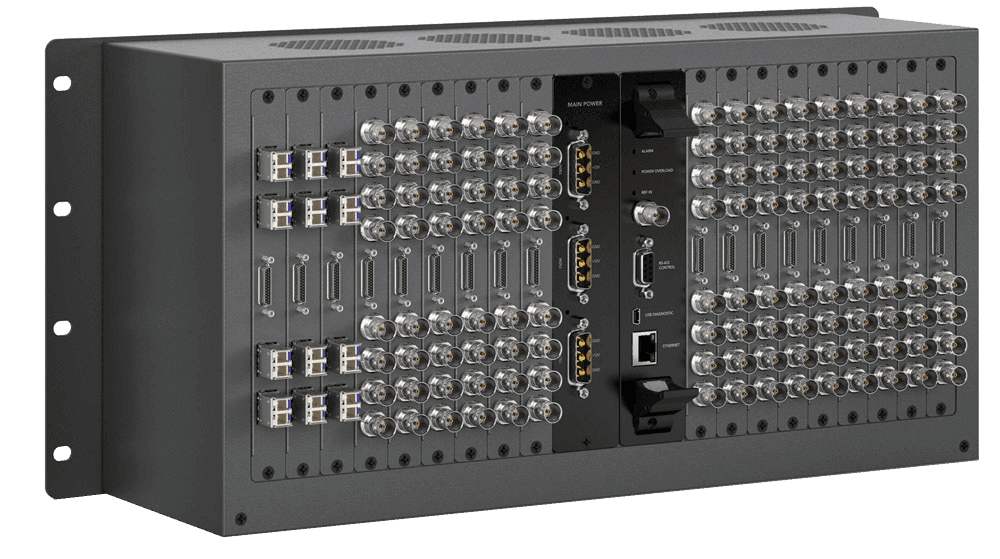

The BlackMagic Universal Videohub can be configured with 3G HD-SDI or with optical fiber interface. Any configuration up to 72×72 is possible.The router can be controlled through BlackMagic Smartpanels or a computer (with touchscreen interface).

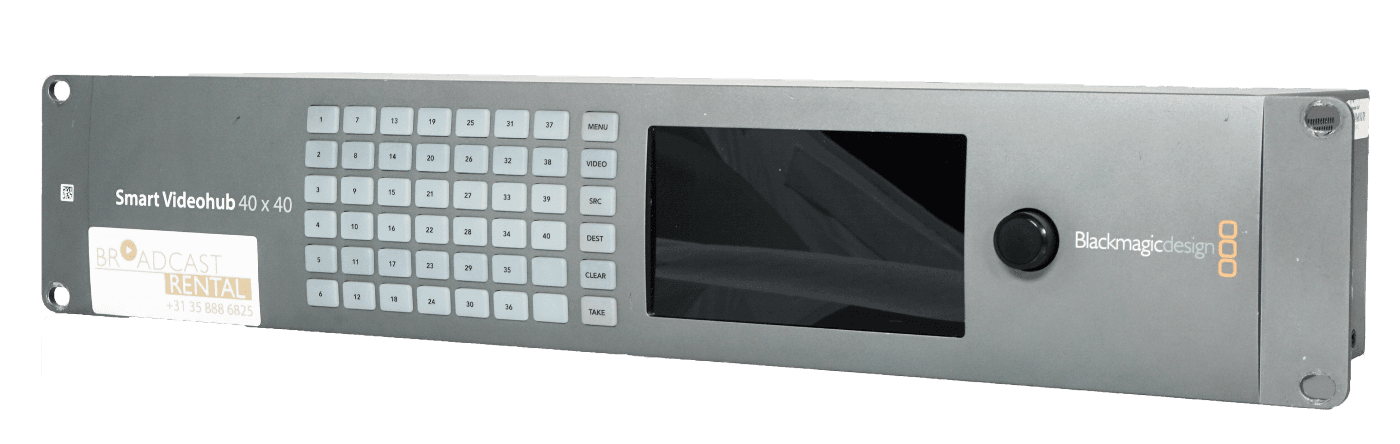

The Smart Videohub family of professional SDI video routers are the world’s first Ultra HD mixed format routers to include built in large 5 inch high resolution video monitoring and spin knob router control. The Smart Videohub 40 x 40 includes 6G-SDI technology so customers can simultaneously connect and route any combination of SD, HD and Ultra HD video all on the same router at the same time. Even if a customer has 40 different television formats connected to the router inputs, Smart Videohub 40 x 40 would route any of them to any combination of the outputs, all simultaneously.
Smart Videohub 40 x 40 also includes an elegant machined metal front panel with full router control as well as built in LCD monitoring. Using the front panel, customers can perform direct entry of router cross points using buttons, or they can use the spin knob control.

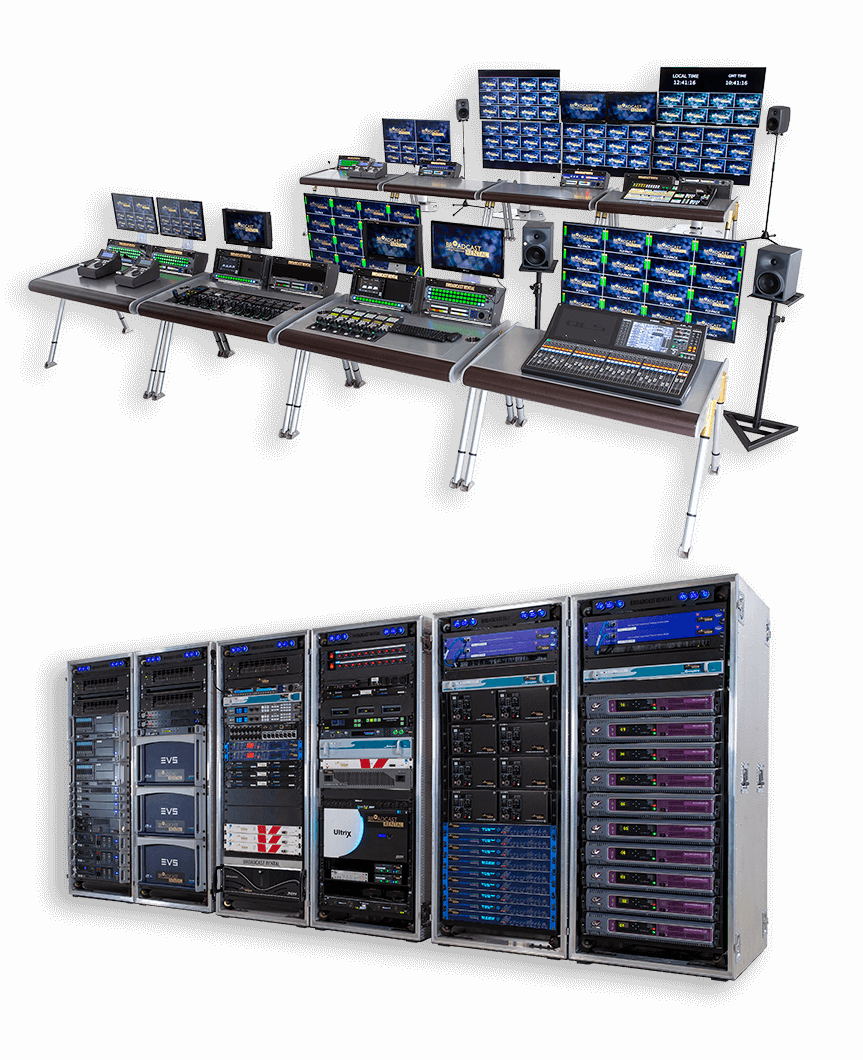

A scalable and lightweight UHD Fly-PackBroadcast Rental’s new modular and UHD-capable Fly-Pack system is an ultra-compact portable solution that delivers a powerful workflow to simplify and support complex live productions anywhere in the world.
The set up is prepared for up to 16 camera channels, but is easy to expand to up to 24 camera channels by adding another CCU module.The customer can decide on the brand and type of camera to be used.  Fly-Pack can not only accommodate common B4 mount cameras like Grass Valley and Sony, but can also accommodate large sensor cinema cameras  – in combination with Ereca Camracers – such as the Sony Venice, F55 or Arri Alexa. The Fly-Pack affords the use of any brand desired.
In addition, the brand of the intercomsystem, audiodesk, and videoswitch are flexible if required. You can choose any brand you prefer.

Ross Xpression Graphics System

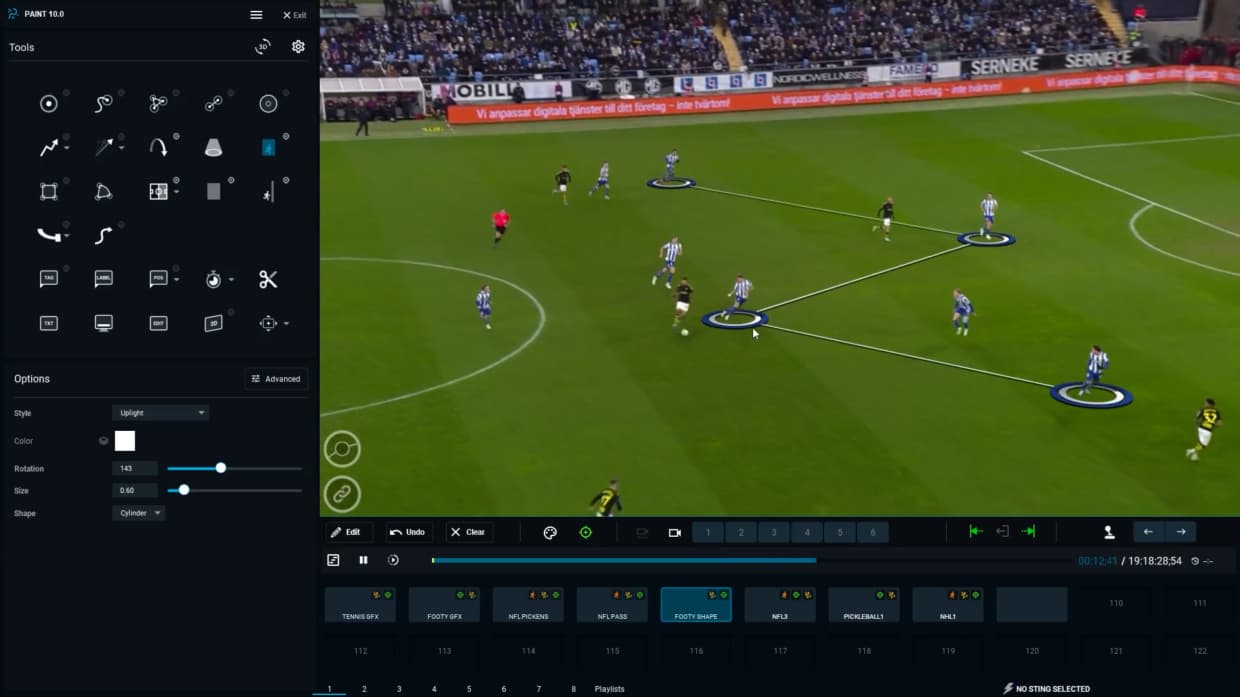

AKI ChyronHego Paint

Ross Carbonite TD4 Panel

ROSS Carbonite black 2M/E panel

Ross Carbonite Ultra60 | 3 ME |

Blackmagic ATEM 1 M/E Advanced Panel

Blackmagic Atem 2M/E Production Studio 4K

Ross Ultrix FR12 12U 288x288 12G incl. 16x Multiviewer & Madi Router

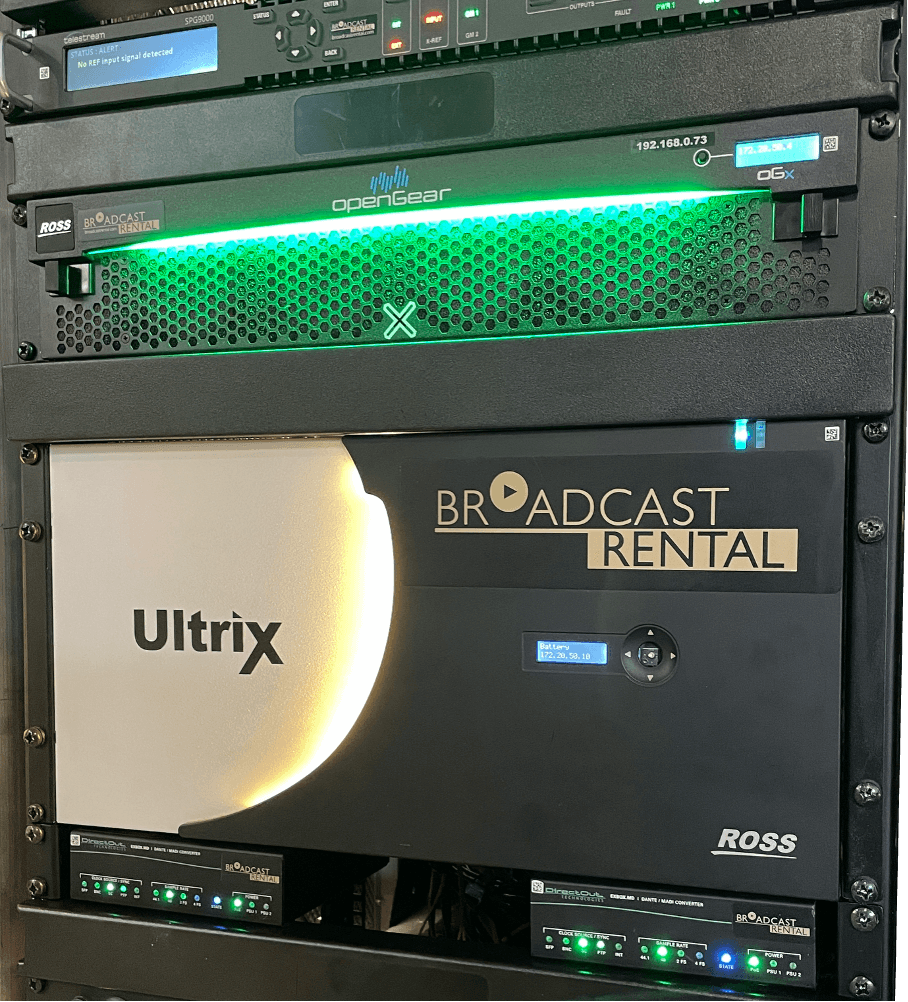

Ross Ultrix FR5 5U 144x144 12G incl. 8x Multiviewer & Madi Router

Blackmagic Videohub 288x288

Blackmagic Videohub 72x72

Blackmagic Smart Videohub 40x40

BCR Fly Pack 144x144

BCR Fly Pack 288x288
