Audio & Intercom

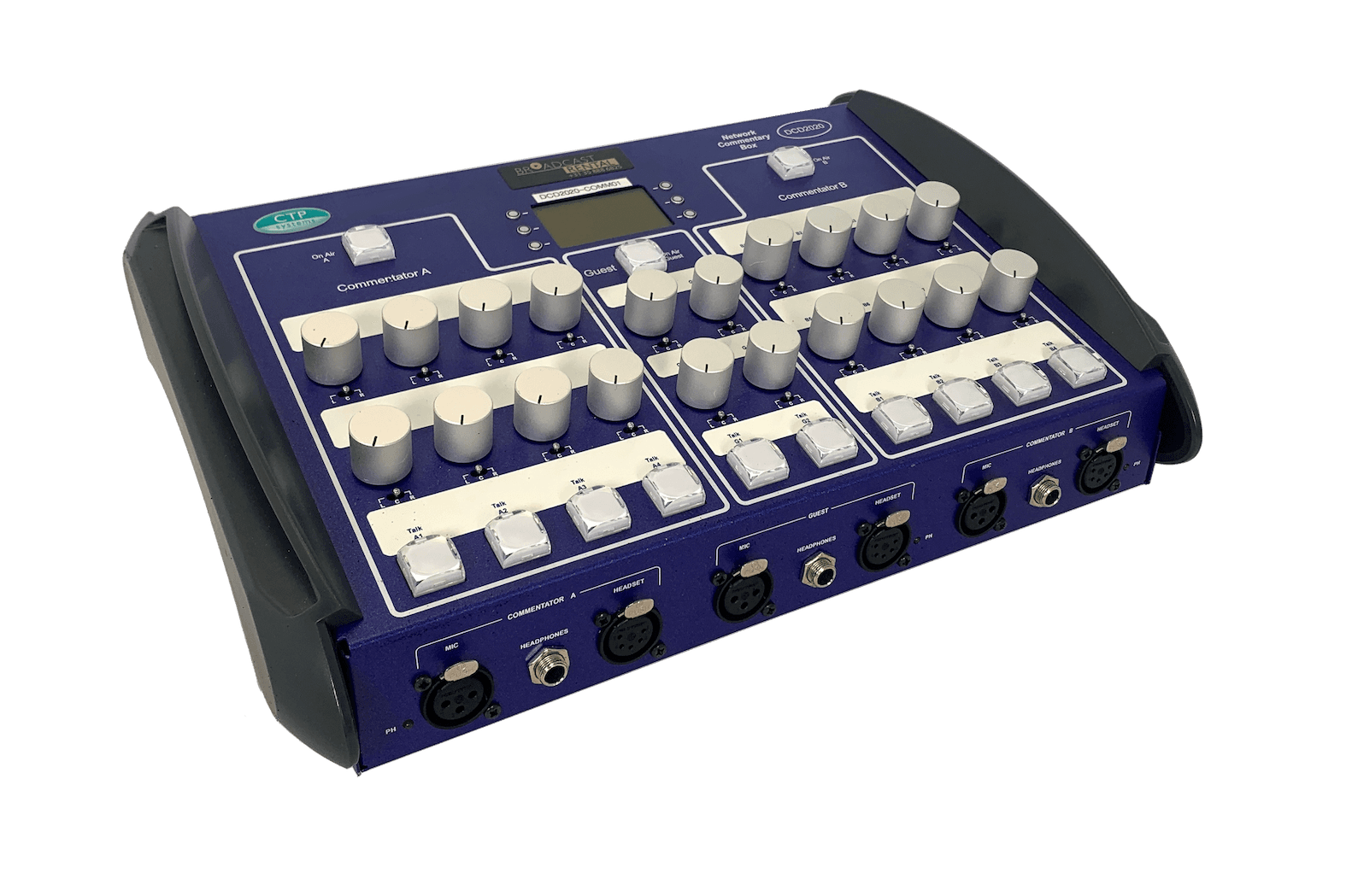

The DCD2020 is a Dante enabled Commentary box supporting 2+1 commentators. Network connection may be fibre or copper and it has full network redundancy. Microphone amplifier gains and many other adjustments such as phantom power and limit levels may be made on the local lockable LCD screen or remotely via the DCD2020’s web pages. In addition to the commentary box functions there is a built in Dante breakout box with six analogue inputs and eight analogue outputs. These inputs and outputs have level controls and may be assigned to commentary box functions with or without network connections, the DCD2020 may even be used as a standalone analogue unit. With 240V mains, 12 volt and PoE powering and a built in ethernet switch the DCD2020 can truly be the hub of your commentary system.

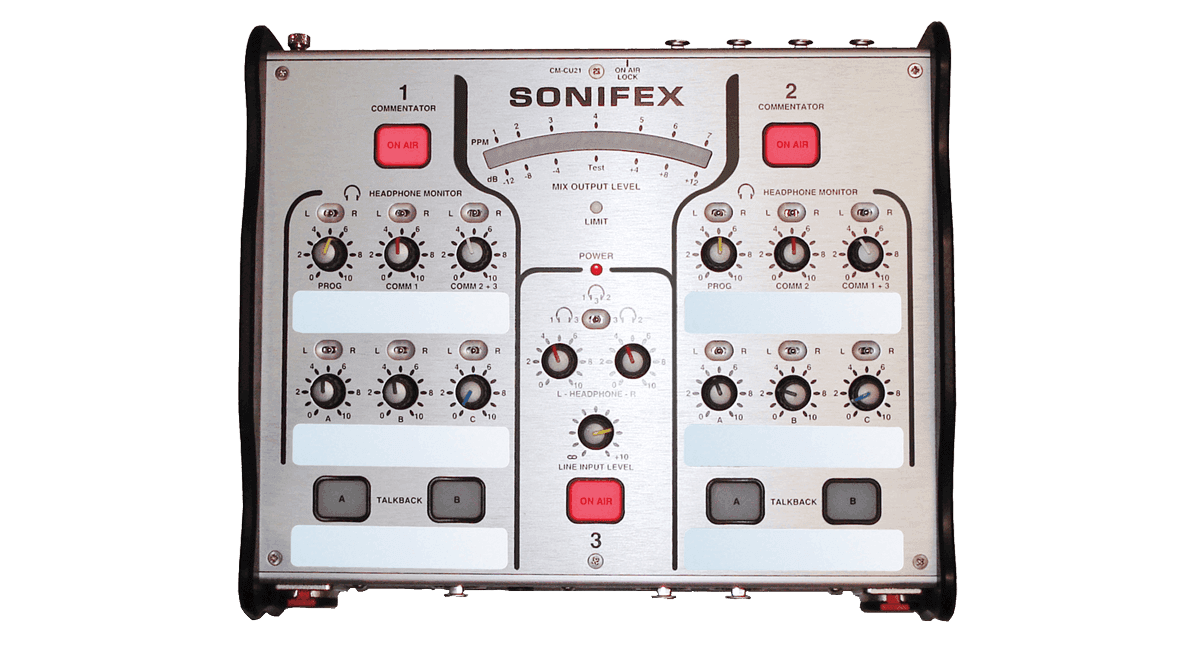

The CM-CU21 is a high quality, portable Commentator Unit. Its sturdy construction and flexibility of features make it suitable for use in a wide variety of environments.
2 Commentator positions plus a guest position, each with individual outputs; plus 2 mix outputs.
Talkback outputs selectable by the two main commentators, with built in limiter.
4 Return audio circuits that are routed to headphones along with all the commentator inputs. Any source can be individually level controlled and sent to left, right or both ears.
A wide input gain range and switchable phantom power on each commentary position allows support of a variety of microphone types including low output ribbon, headsets and high output phantom powered microphones.
Transformer balanced inputs and outputs.
User preset adjustable limiter on main mix outputs with limit activity indication.

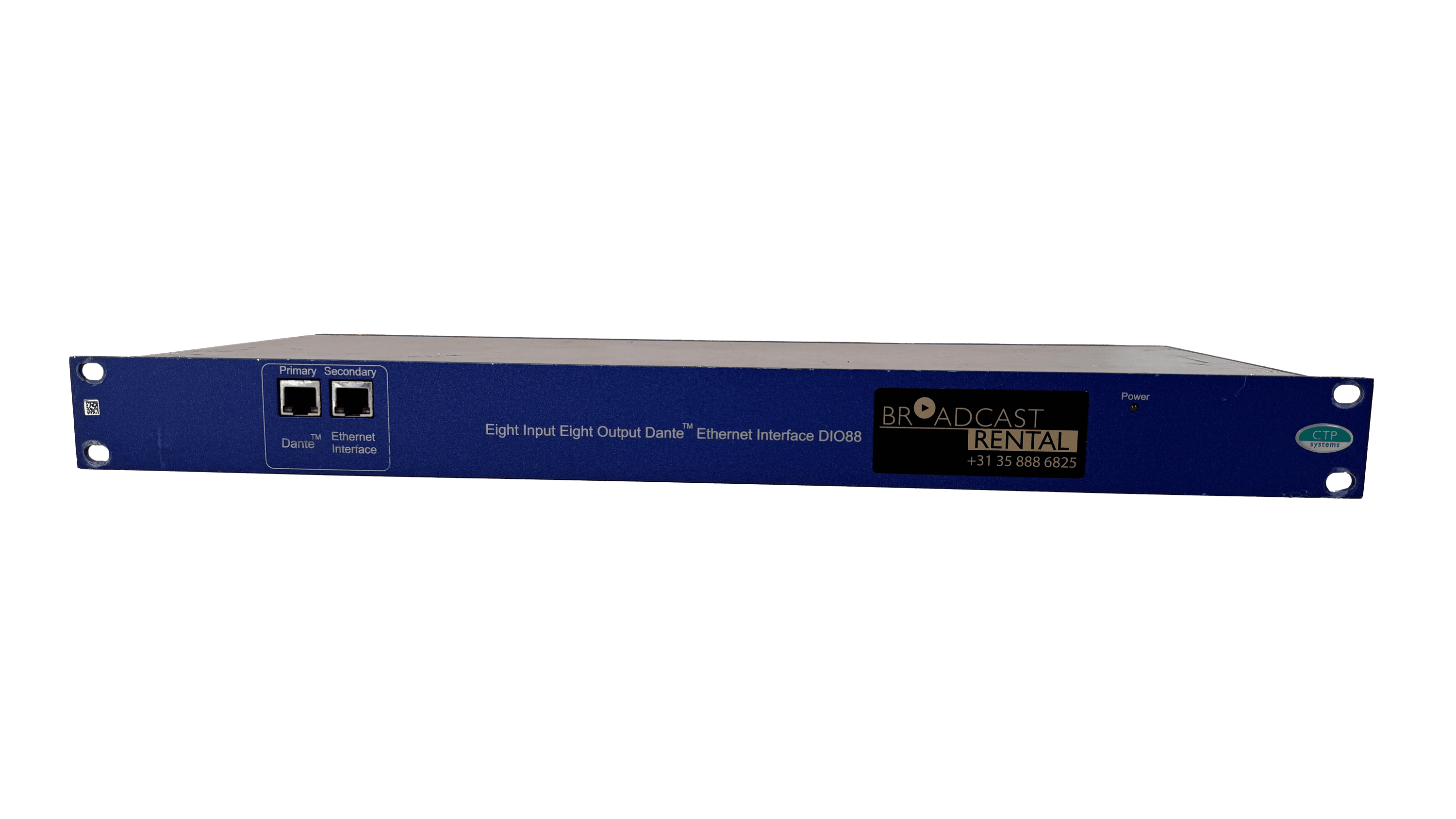

The DIO88 is an inexpensive way to get your analogue signals into and out of the Dante network. The unit has eight XLR inputs and eight XLR outputs. It includes a secondary port for Dante Redundancy or a switch output. Both ports include network activity LEDs.
The DIO88 should be used in conjunction with Dante Controller software available from https://www.audinate.com/products/software/dante-controller .As supplied the DIO88 will appear in Dante Controller as DIO88-nnn.The inputs are labeled ‘Input 1” to ‘Input 8’, Outputs are labeled ‘Output 1’ to ‘Output 8’.
Connect the primary RJ45 to your router. If redundant operation is required connect the secondary RJ45 to the redundant network router. Alternatively the secondary RJ45 may be used as a router output for forwarding on to additional Dante equipment. This feature may be configured in Dante Controller.
When the unit is powered and after successful network connection the LEDs on the RJ45 connectors will illuminate. The right LED will be amber if you have a gigabit connection or green if operating at 100 Mbps. The left LED will blink green to show activity on the port or will be off if no link has been established.
It takes the unit some 10 seconds from application of power to be ready to operate

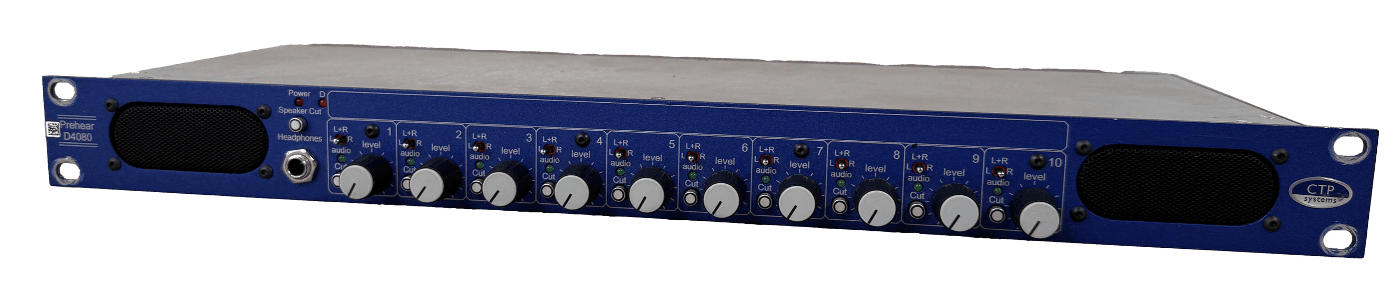

The Prehear D4080 is a Dante enabled version of our analogue Prehear 1020. The unit is unusual in that it is Dante equipped but is also fully functional in stand aloneanalogue mode or even both at once, particularly useful for de-rigs. The unit presents itself to the network as a ten input, two output device but also has ten analogue inputs and two analogue outputs. All inputs are selectable to either or both of the two internal speakers, line level speaker outputs and headphone socket with individual volume controls, cut buttons and signal input LEDs. The unit includes a secondary port for Dante Redundancy or a switch output. Both ports include network activity LEDs. The Prehear 4080 covers all those ‘listen’ feeds required by production. Pre-fade listen feeds of presenters, off air feeds, and all those other bits and pieces that waste talkback matrix inputs can be fed directly to these units with convenient local control. There are both primary and secondary network connections to allow for redundancy. The unit is suitable for Gigabit network operation which is highlyrecommended.

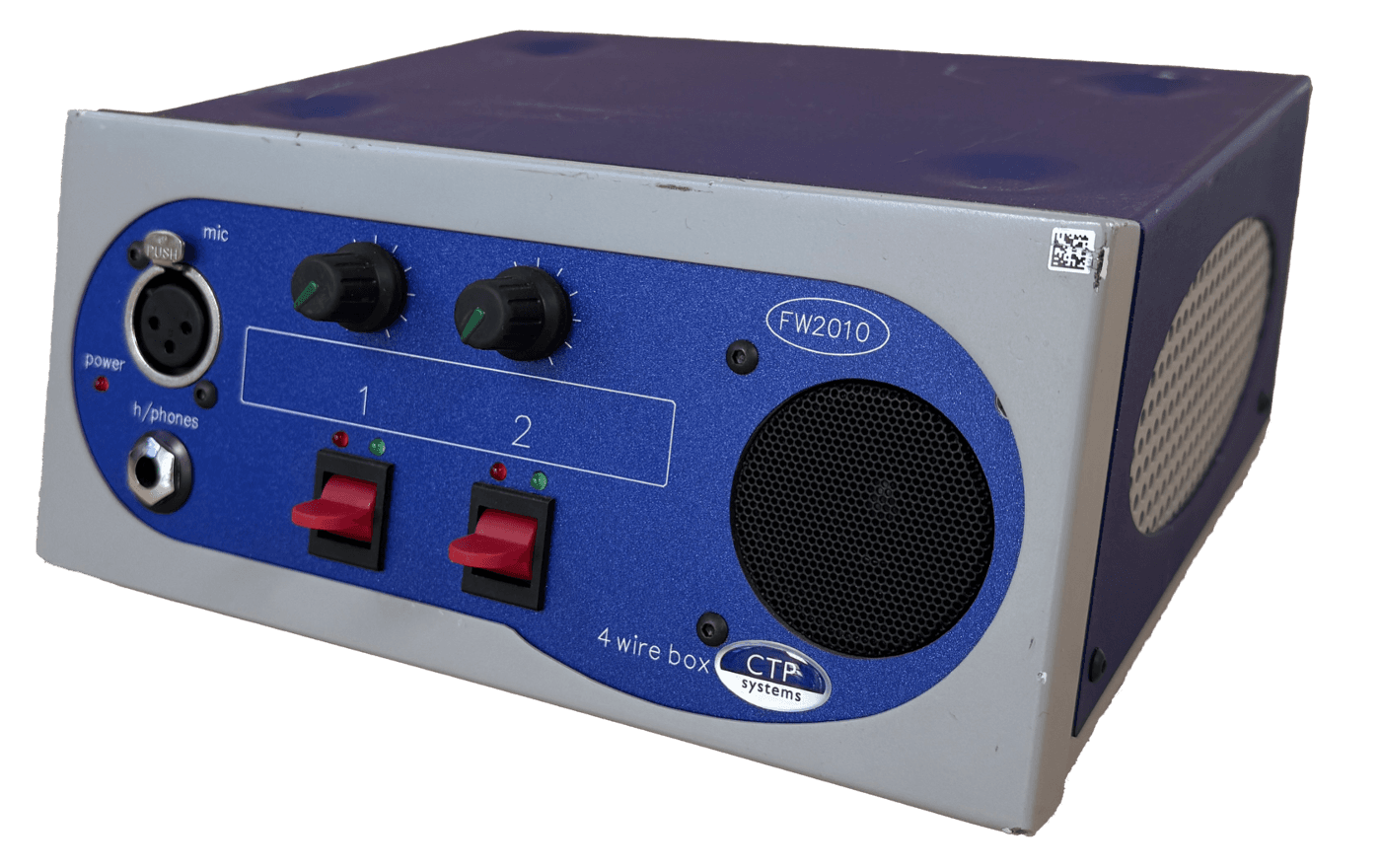

The FW2010 is a simple but high quality 2 input, 2 output four wire box with IFBs.

Switchable open talkback on output two.
Both four wires operate as IFBs without loss of four wire inputs.
Talk keys momentary (down) and latching (up).
Rear panel switch to defeat key latching.
LED talk key indicators.
LED VOX indicators.
Auto speaker off when headphone jack inserted.
Earth lift switch.
Rear panel speaker off switch.
Selectable 12 volt phantom power on mic XLR.
Rear panel multiturn mic output level trimmer
Rear panel speaker on/off switch.

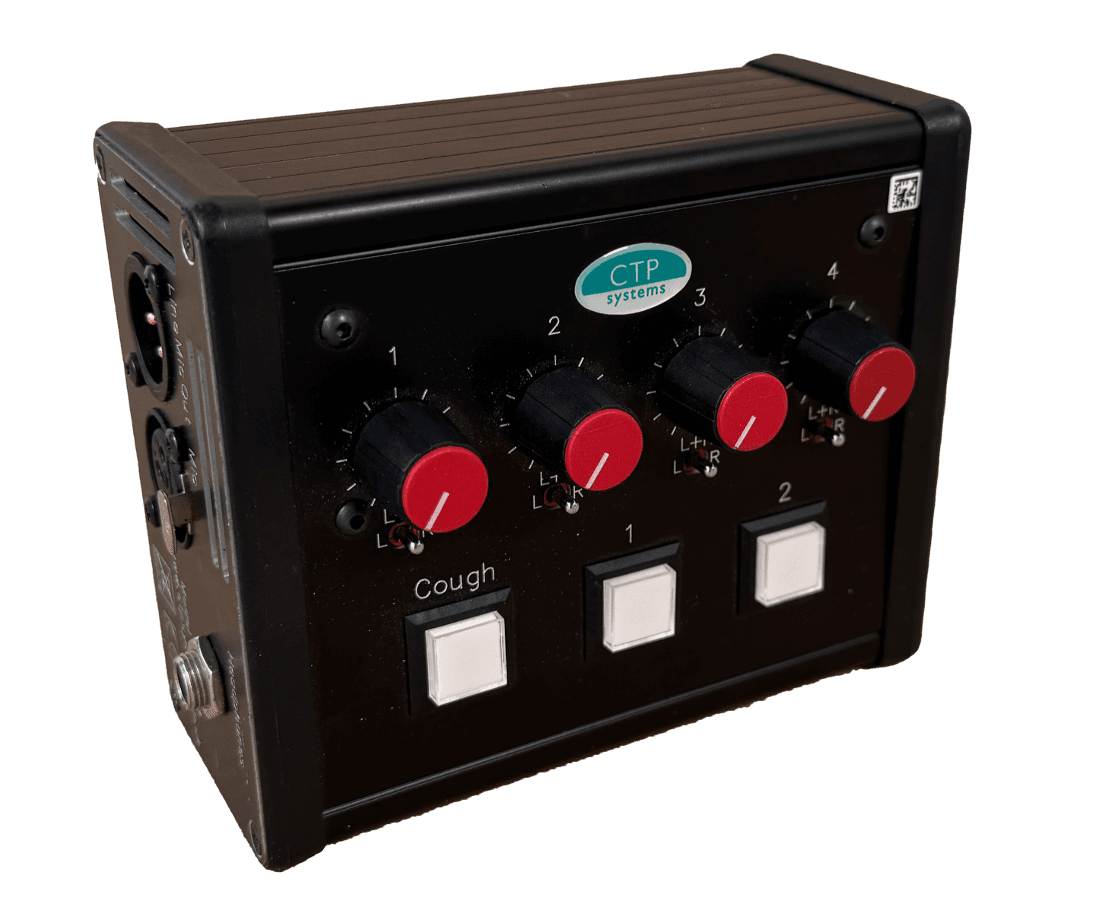

The DCU304 is a Dante enabled Commentary / Announcer unit. It has four inputs, one programme output and three talkback outputs.
The DCU304 is a Dante enabled Commentary / Announcer unit.
The unit has four inputs, each selectable to left/right/both ears, one programme microphone output plus three ‘lazy’ talkback outputs. On pressing a talkback key the programme microphone output will be silently muted and redirected to the selected talkback output(s). The microphone also has a local line level analogue output which also mutes when a talkback key is pressed.
Network connection may be either a Neutrik ethercon or a standard RJ45 connector. A LED indicates network status.
Microphone gain is adjustable in 1dB steps from +70dB to +15dB and +5dB via the OLED display and lockable push buttons. 48 volt phantom power may also be selected.
The DCU304 may be powered PoE or via an external 12 volt power source.
The DCU304 can also be used as a cost effective Dante four wire box or as a top quality analogue or Dante mic amp.

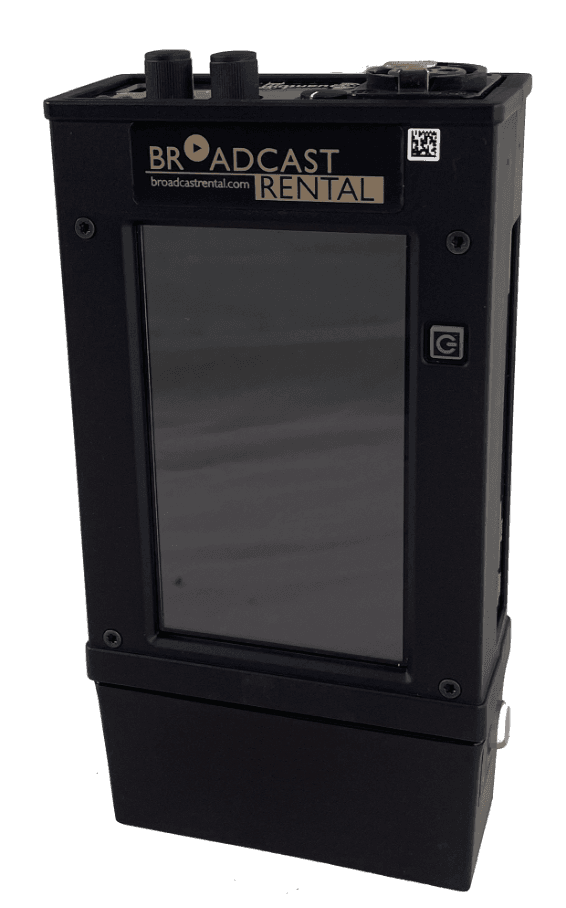

Quantum Lite Prodys is a small, handheld IP audio codec designed for broadcast professionals that enables reliable live audio contributions from remote locations using wireless networks like LTE/5G. It uses concurrent IP connections, built-in recording, and professional audio features to ensure high-quality, stable audio streams for news reporting and commentaries, while avoiding common smartphone issues like incoming calls interrupting service.

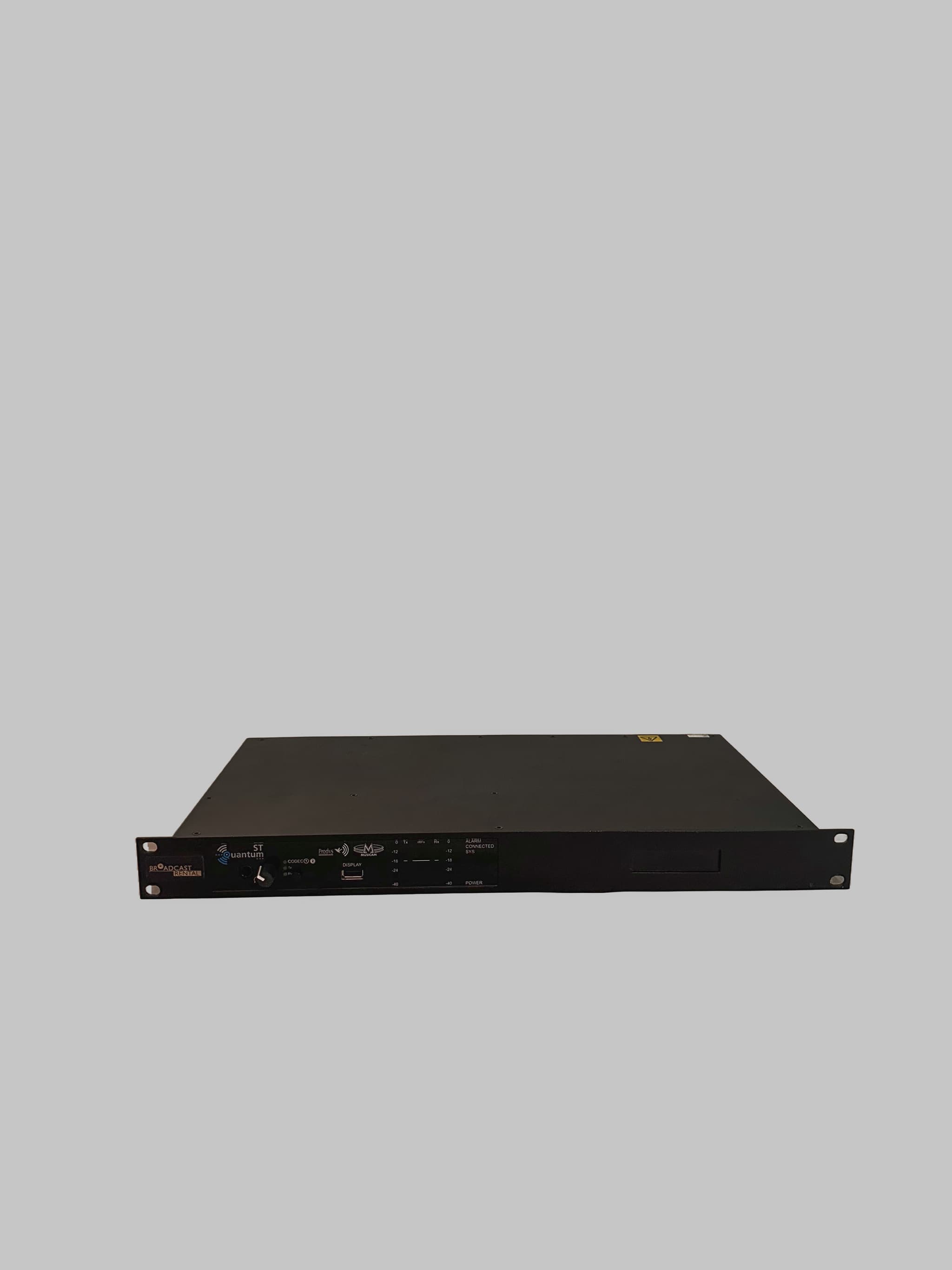

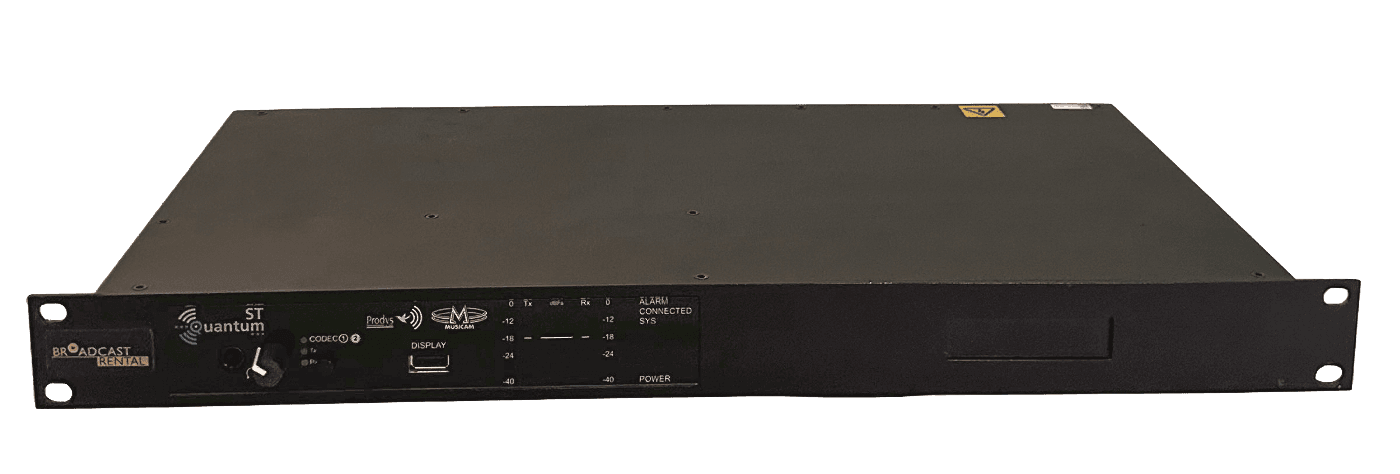

The Prodys Quantum2 ST is an advanced, 1U rack-mount IP audio codec designed for connecting broadcasting studios and mobile vehicles for reliable audio links.
Quantum2 ST provides highly reliable, steady audio connections using IP-based streaming and offers options for one or two stereo audio programs, with support for analog, digital (AES/EBU), and various audio compression formats like OPUS, AAC, and G.722. Point to multipoint distribution is supported (multi-unicast 1:10) or unlimited with multicast
Dante/AES67 or Ravenna/AES67 is available to provide an interface for uncompressed digital audio over a single Ethernet cable replacing all the individual audio inputs and outputs.
This unit can be controlled from its built-in web graphical interface, its front panel display menu, or from the ProdysControlPlus application. The new WEBMONITOR is also available to listen to the unit’s audio from ProdysControlPlus or an Internet browser on a distant location. This makes the equipment fully manageable remotely, facilitating the work of supervisors.

The Prodys Quantum2 W is a portable, all-in-one, broadcast-grade IP commentary unit designed to send high-quality, two-way audio and optional video from a remote location to a studio. It combines audio/video encoding, multiple network interfaces for IP bonding and diversity, a video decoder, and an embedded mixer to create a complete solution for on-site commentary, allowing for dual-language broadcasts, video return feeds, and advanced audio management using standard protocols like AES67 and SIP.

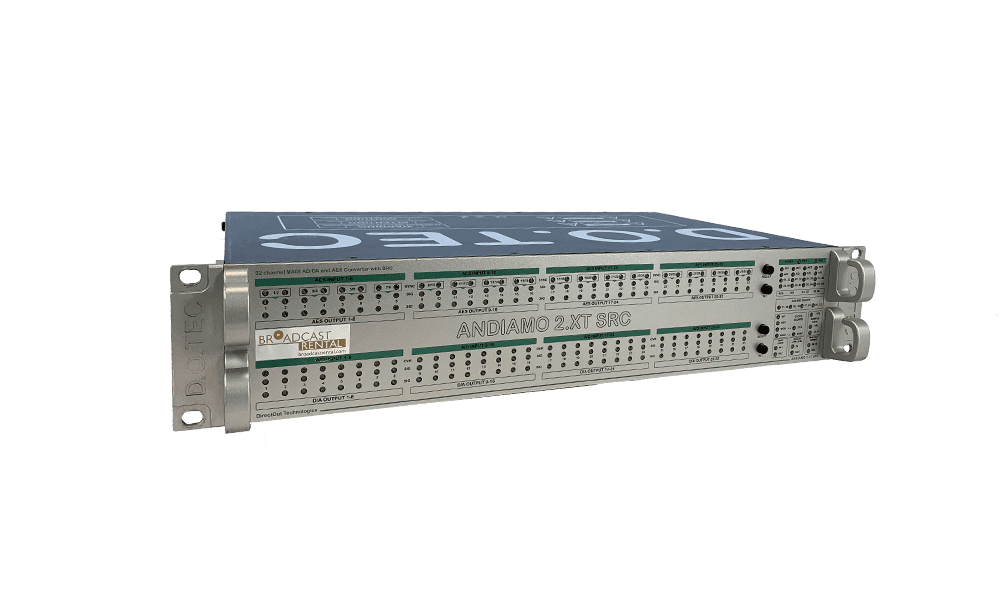

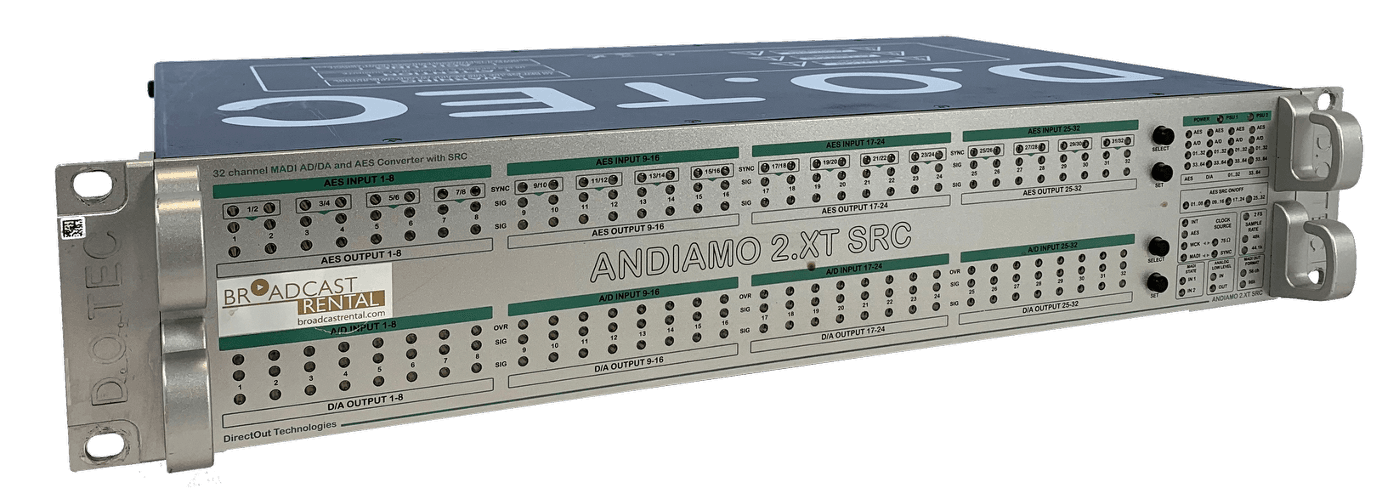

The ANDIAMO 2.XT is a high quality AD/DA converter for MADI and AES signals. It provides two MADI inputs and outputs, 16 AES3 inputs and outputs and 32 channels analog inputs and outputs.With two RU height, two redundant power supplies and excellent sounding converters the device offers best and safe audio quality at a minimal need of rackspace.The AES inputs of the SRC version are equipped with sample rate converters – switchable in groups of eight channels.

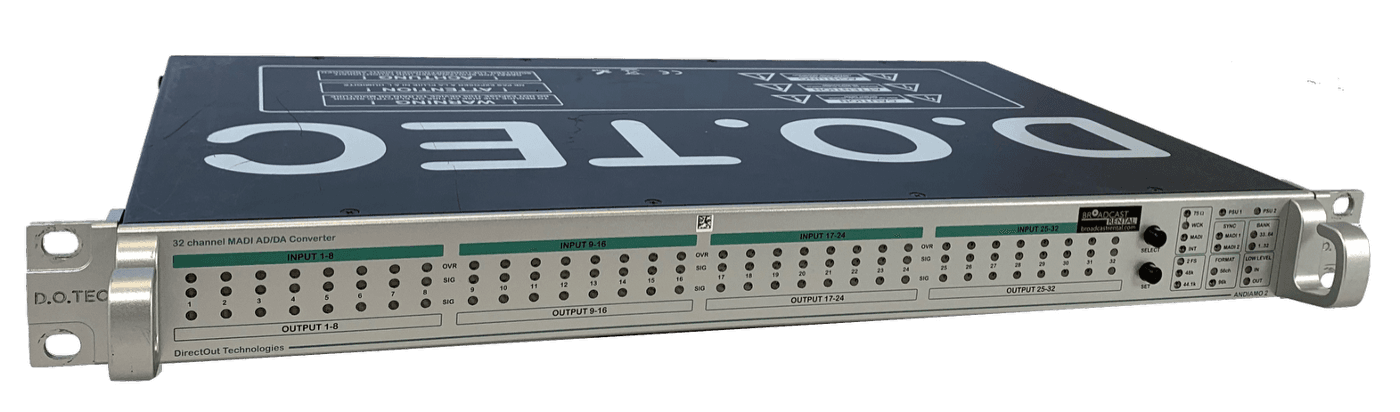

ANDIAMO is a powerful, high-end AD/DA converter offering simultaneous conversion of 32 audio channels from analog to digital and vice-versa and sharing the extremely high sonic quality with the PRODIGY Series. The third generation of ANDIAMO takes the features that made the product famous worldwide and expands them to reach a new level.
Housed in an elegant, space-saving 1U 19” casing, it allows conversion to and from MADI via two SFP ports, while the optional network audio cards support RAVENNA/AES67, Dante or SoundGrid, bringing the total channel count of the device up to 288 inputs and outputs.

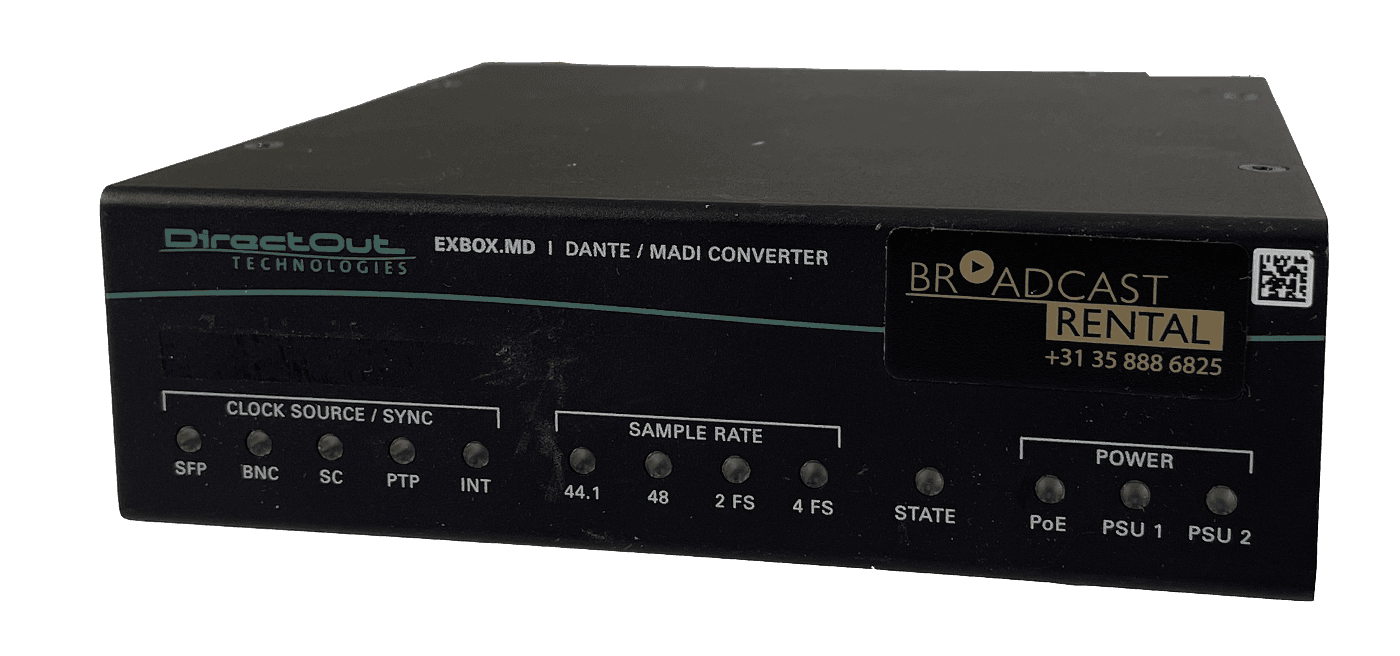

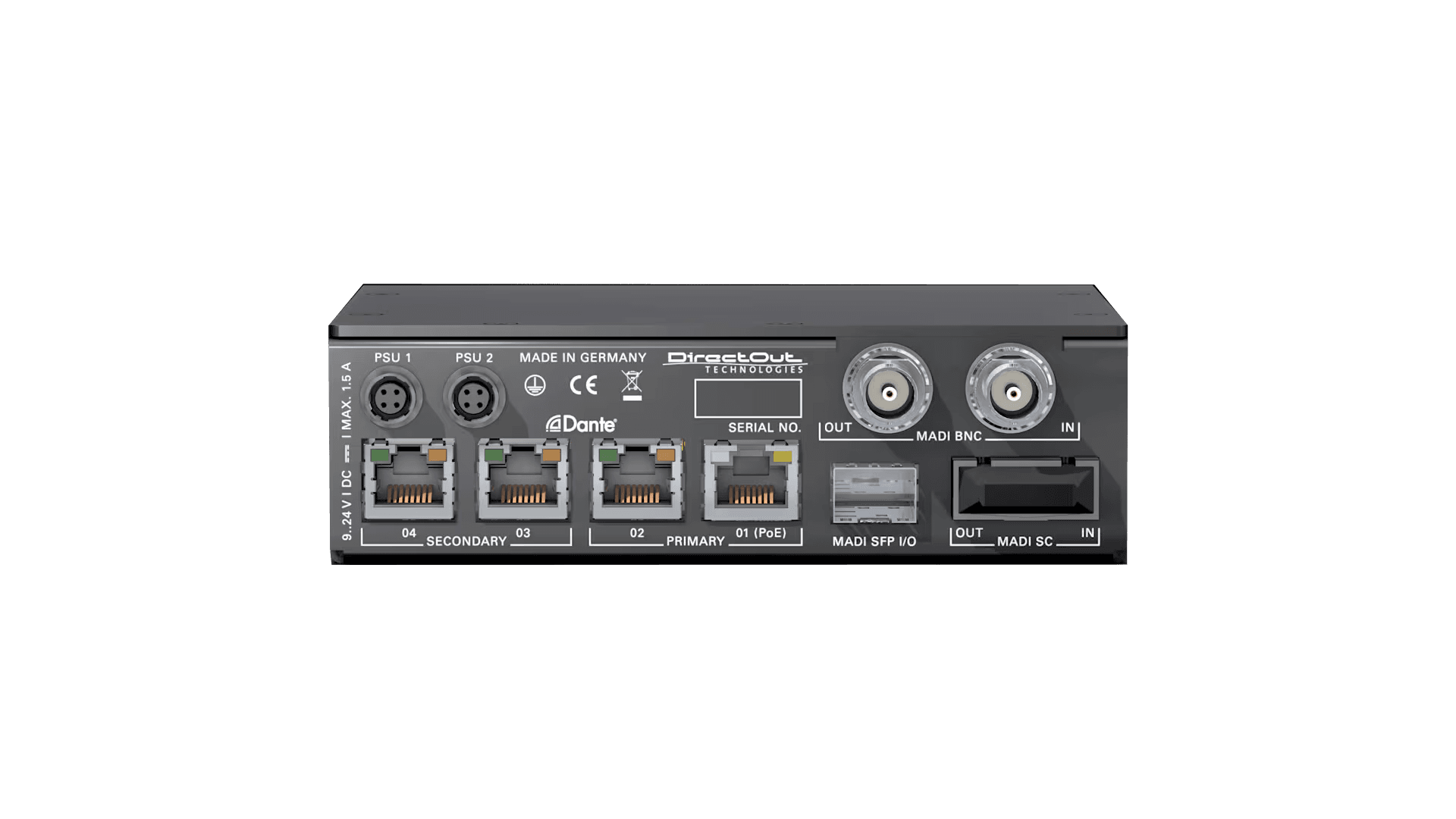

EXBOX.MD is a Dante / MADI converter linking Audinate’s audio networking technology Dante and MADI (AES10). Equipped with three MADI ports and four network ports it offers straight-forward conversion of 64 audio channels between MADI and Dante.
The handy size of the popular EXBOX series (1/3 of 19’’), combined with the rock-solid housing and redundant power supplies, makes the EXBOX.MD a perfect connectivity tool for touring live shows, OB vans as well as studio applications.

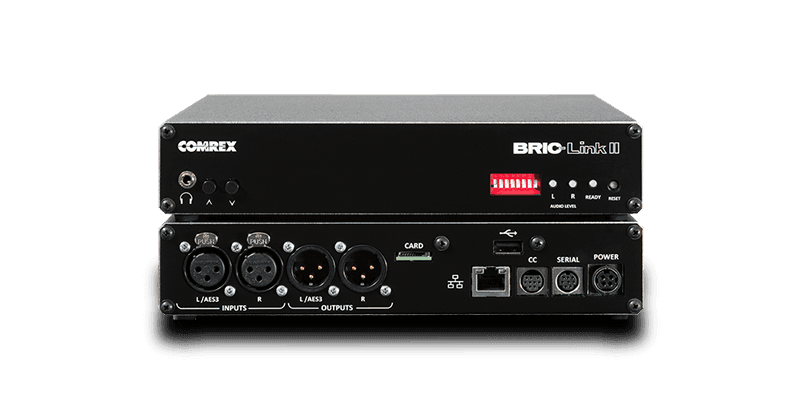

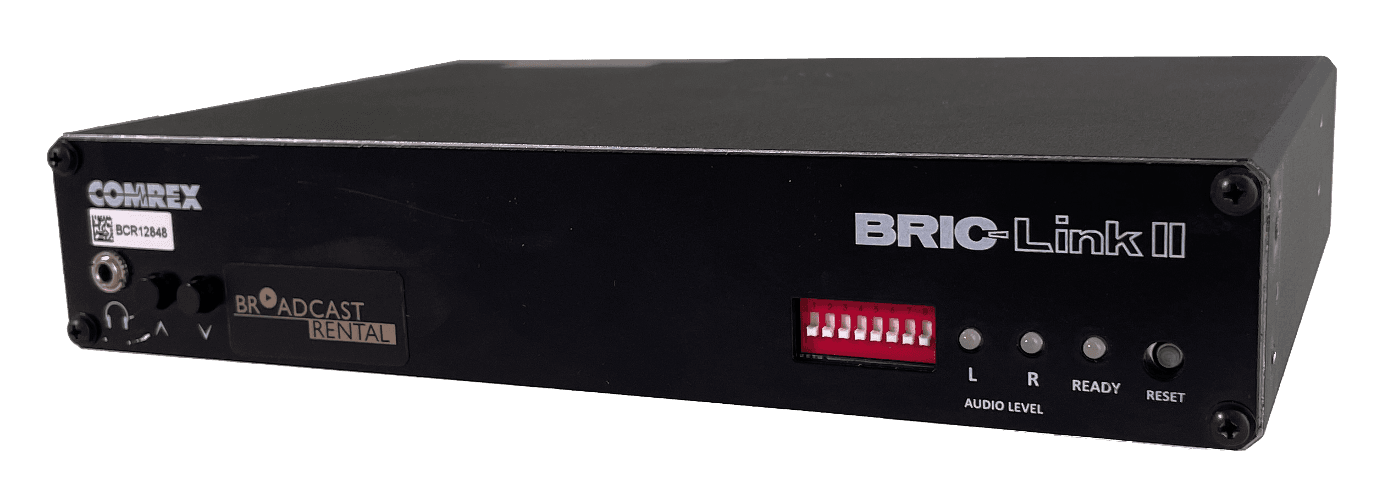

BRIC-Link III is a work-horse codec, ready to handle everything from a studio-transmitter link to a home studio connection.
Featuring our proprietary CrossLock VPN technology, BRIC-Link is designed for ultra-reliable IP transmission of high-quality, low-delay audio. Perfect for point-to-point connections, streaming, and more, our entry-level IP audio codec offers versatility in a small package.
Now with a new, more powerful processor for improved performance and enhanced front panel for easy contact closure firing and auto-connects.

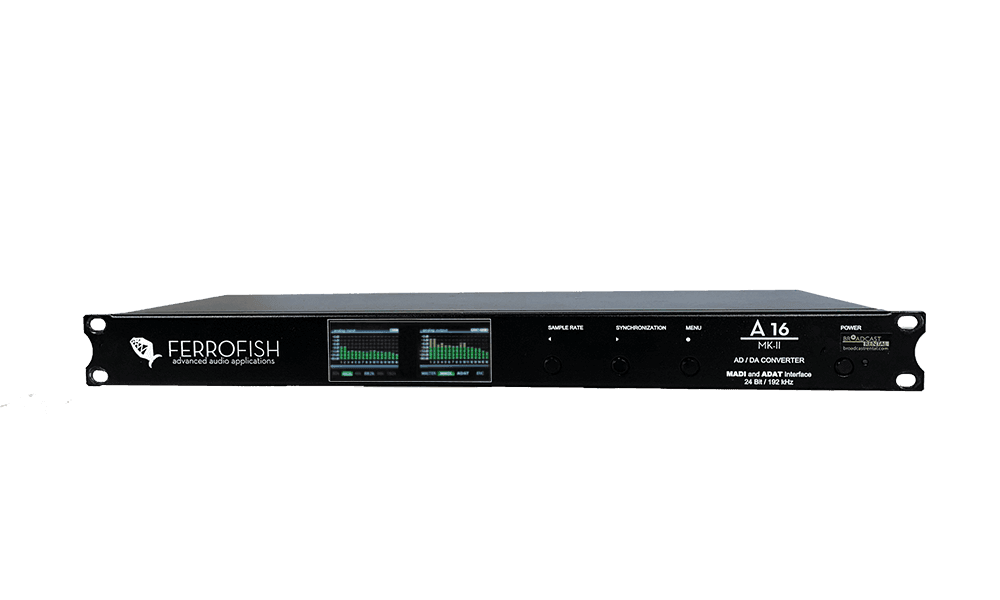

The Ferrofish A16 MK-II is an extremely powerful AD/DA converter with 16 professional balanced analogue inputs and 16 outputs, as well as flexible digital I/O and an outstanding user interface. With one or more of these units in your arsenal you can easily expand your analogue I/O capacity to meet any challenge.

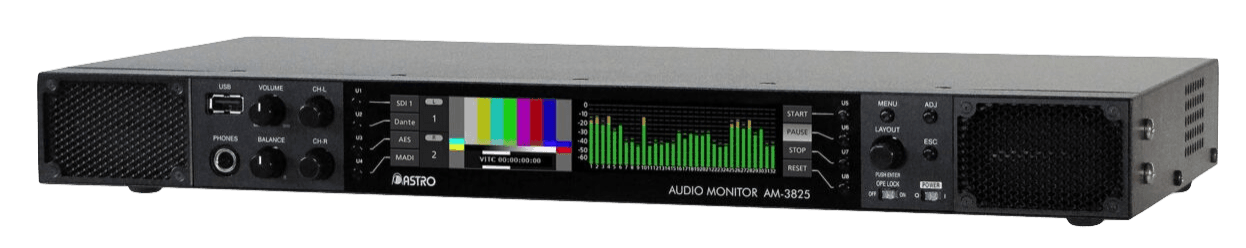

The AM-3825 audio monitor separates the audio signal (embedded audio) superimposed on each SDI signal of 12G, 6G, 3G, HD, and SD from the video signal, and monitors the audio using the built-in speaker or headphones.
It features AES, MADI, Dante (ST 2110-30 compatible), analog and abundant audio input / output interfaces.

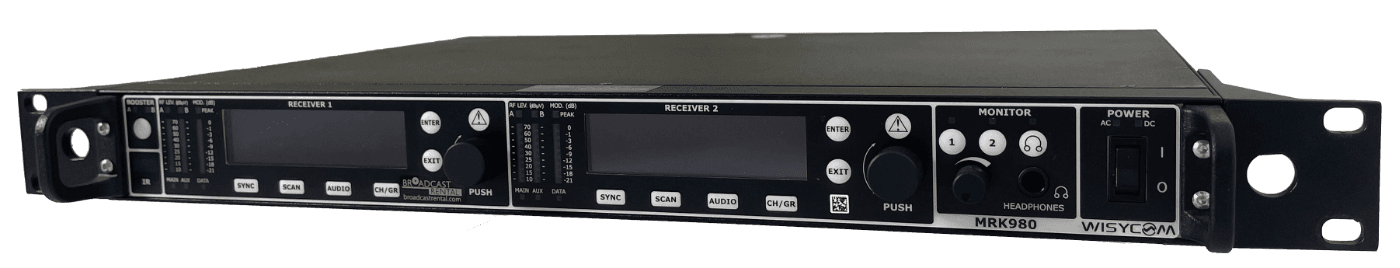

Wisycom MRK980 is a true diversity, ultra-wideband dual channel receiver. With its 1090MHz of band switching, it ensures the users an exceptional band flexibility, combined with a superb selectivity and intermodulation immunity, for best operating performances of the wireless microphone systems. MRK980 also features an internal DSP processor, Wisycom famous Multicompanding system, new Dante compatibility and a completely and renewed user interface, which make this system easy and quick to setup.

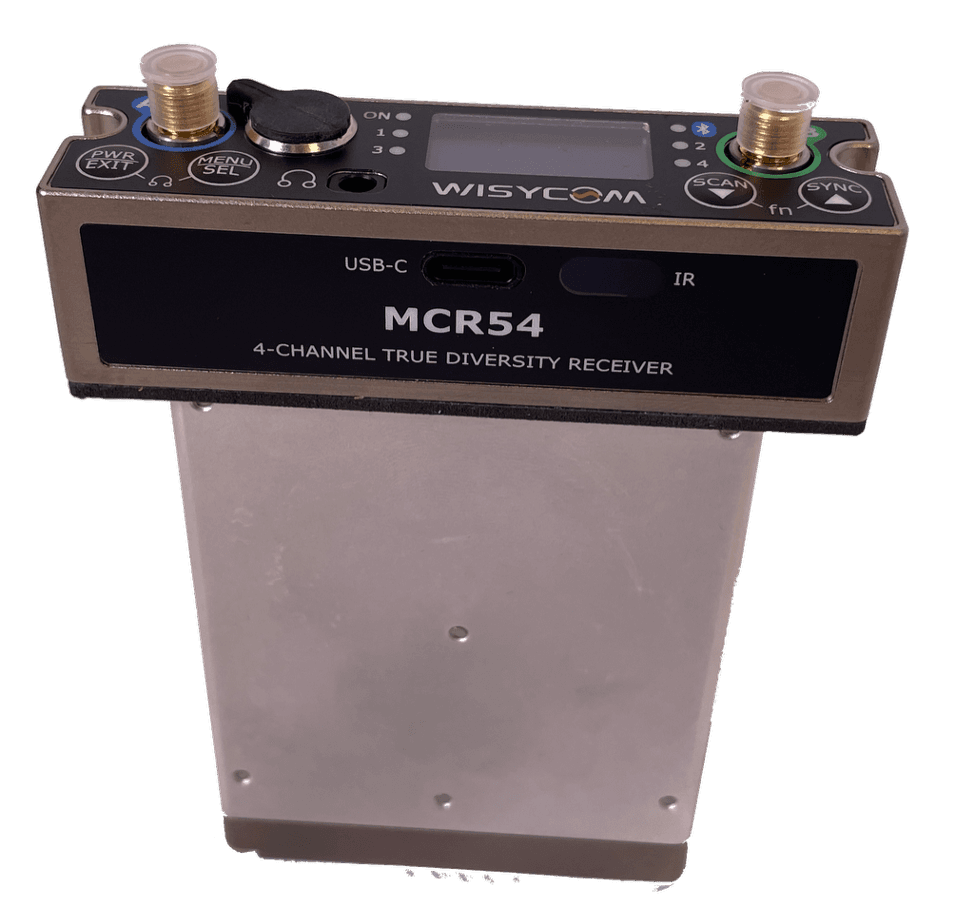

MCR54 is a camera quadruple true diversity wireless microphone receiver system in a modular stand alone or slot in configuration. It’s compatible with most camera’s slots and “multi-slot” mixer accessories.

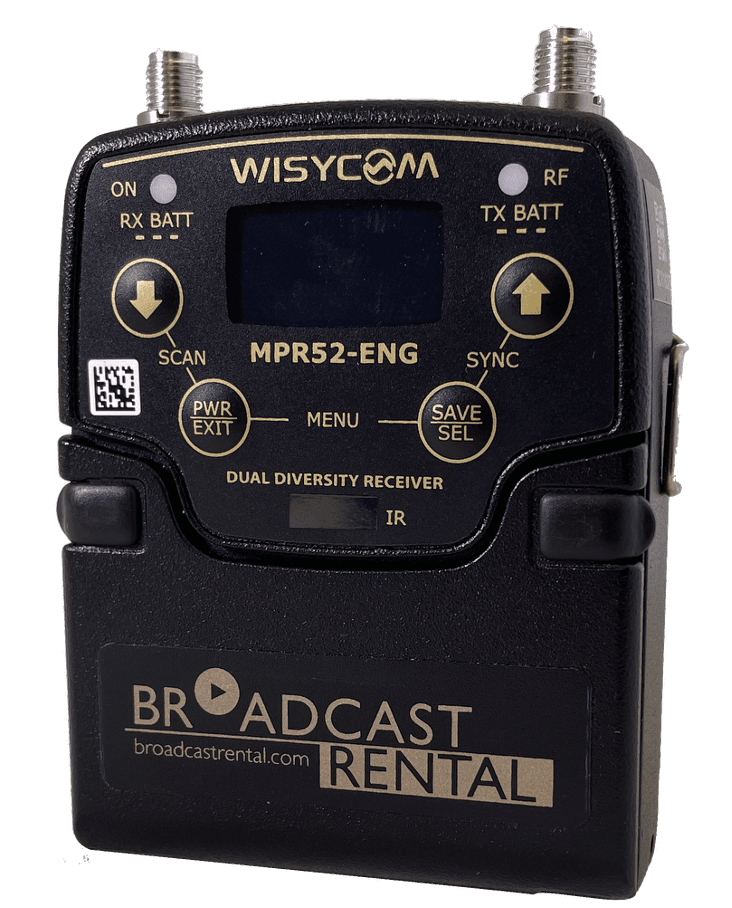

MPR52-ENG is a compact two channels receiver designed for professional ENG applications.The new MPR52 has two built-in diversity receivers with both analogue and digital outputs. With up to 790 MHz bandwidth in the 470/1260 MHz range, the MPR52 features next generation multiband front-end filtering.
The software selectable wideband and narrowband DSP-FM operation gives users options based on their project needs.Country specific Surface Acoustic Wave (SAW) filters are also available (USA: 935-960 MHz and Japan: 1240-1260 MHz).
The receiver also offers convenient function buttons, including a dedicated frequency scan option.Battery management is flexible as it features standard battery packs that can be charged with the dedicated charger or through the micro-usb-B connector.

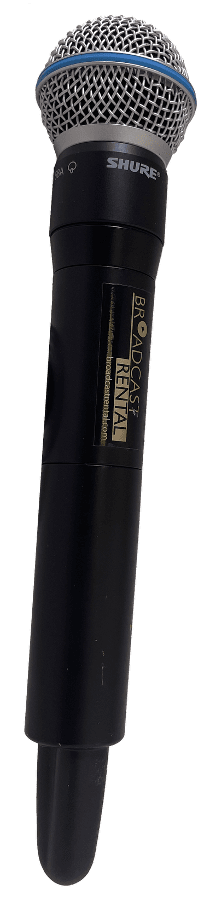

MTH410 is a handheld transmitter especially designed for professional wireless microphone applications.It is very easy and quick to use thanks to OLED display and 1 joggle selector and 2 buttons for straight setup of gain and channel.It has been especially designed for robustness against noise and self-interference thanks to a dual power amplifier and a special “intermodulation cancellation” circuit.MTH410 benefits of the LINEAR technology allowing EQUALLY SPACED frequency allocation intermodulation free.
It is the only handheld transmitter able to change the modulation by software working as Wideband or Narrowband.Thanks to the LINEAR and NARROWBAND features, it allows EQUALLY SPACES frequency allocation intermodulation free:

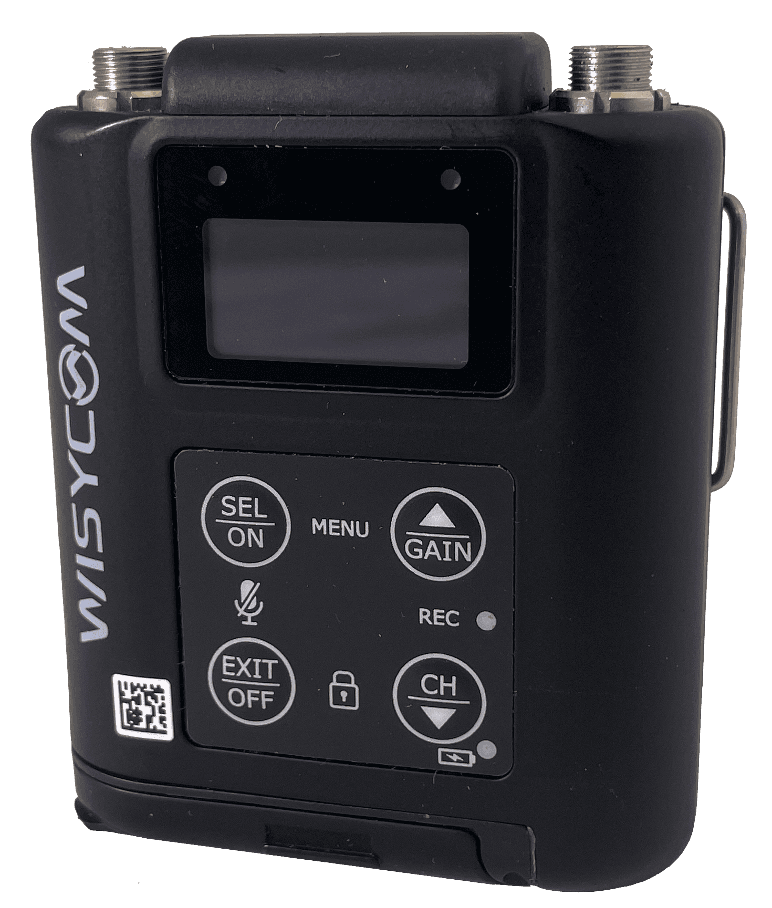

MTP60 is a pocket transmitter specially designed for professional wireless microphone applications, which integrates a enormous amount of new features that will take the Wisycom users into a completely new working experience.
MTP60 currently has the widest tuning range of any wireless transmitter on the market (from 470 to 1075MHz).
It is equipped with a Bluetooth Long range module which allows to adjust parameters in real time via mobile device apps.
It offers embedded recorder to record directly on the MTP60 memory card and an integrated Linear Time Code decoding.

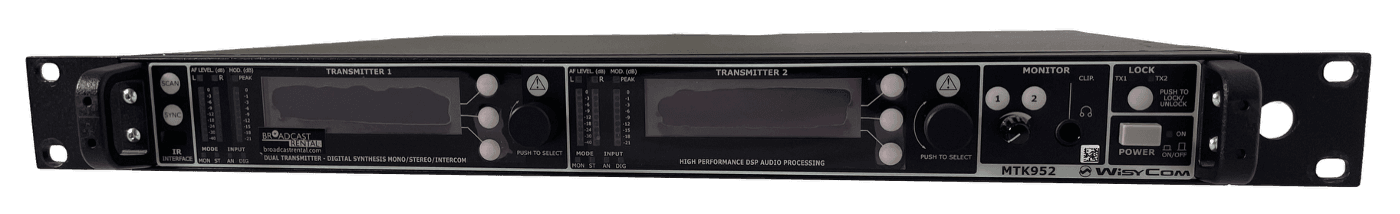

MTK952 is a versatile dual transmitter capable of working in a huge UHF bandwidth and of generating any kind of narrow-band modulations, with very high quality and low spurious emissions.
Options:DC: DC power supply (10-16VDC)MS: Master Slave configuration for iso-frequency network
FEATURES
330 MHz BandwidthDirect Digital Synthesis (DDS) of signal for the highest flexibility and quality (&gt; 70 dB stereo separation)Stereo, mono, intercom audio modulationDSP audio processing (40bit floating point / 2Gflops) with multi-compandingLow interference output stage with wideband intermodulation phase cancellation2400 user-defined frequencies (40 group by 60 freq.)Analogue &amp; digital input (AES3)Output power up to 2 Watt (-2W0 option)Redundant power supply 230/110 Vac &amp; 12 VDC (DC is optional)SWR (Stationary Wave Ratio) sensing on antenna outputsReference In/Out for iso-frequency transmission (with option MS)

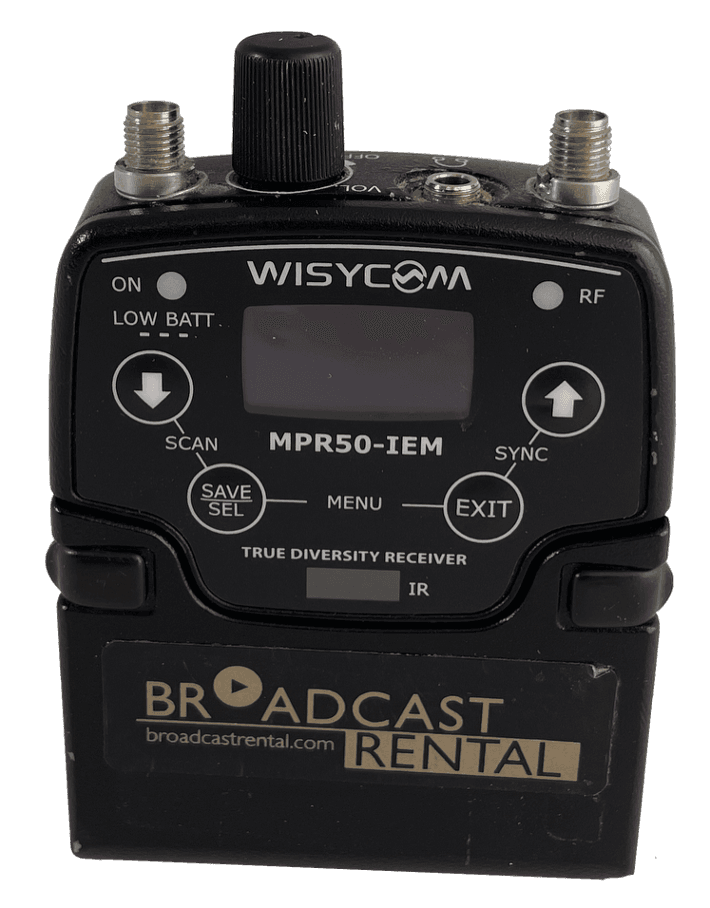

MPR50 is a compact true diversity receiver designed for professional in-ear monitoring aapplications.
This receiver features a real TRUE DIVERSITY configuration along with a unique wide-band tuning range up to 232 MHz. Audio processing can be Stereo MPX or mono based.
The output audio stage is especially design to have maximum audio peak-dynamic of 200 mWatt.Very easy and versatile thanks to its Oled display, navigation button controls, infrared and automatic scan.
Battery management is very flexible since MPR50 allows use of standard battery pack:– 2 AA NiMH or Alkaline– C3-V3 battery pack– MPRLBP (Cameron Sino reference No: CS-WMR500SL) or CR-V3R lithium (i.e. DR9708 duracell)Charging can be done with dedicated charger or thru the integrated micro-usb-B connector.

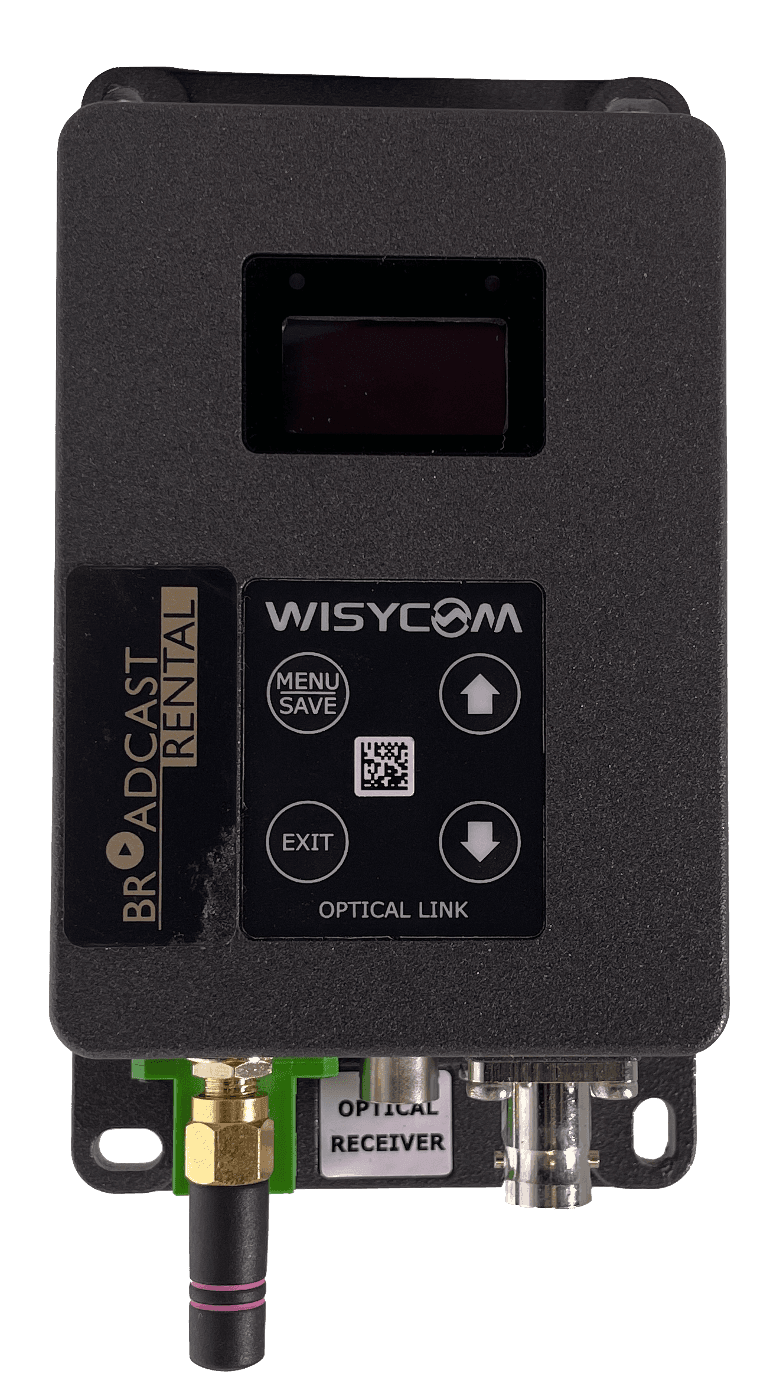

BFLT1/BFLR1 is a single RF over Fiber module with selectable filters and Bluetooth long range.
BFLT1 is equipped with an optical laser which trasform an RF signal to an optical signal.BFLR1 is equipped with an photodiode which trasform an optical signal to an RFsignal.
Both the module BFLT1 and BFLR1 can work in
IFB mode: to send low power IFB/IEM signal over fiber to a remote areaANT mode: to receive signal from an antenna placed on a remote area

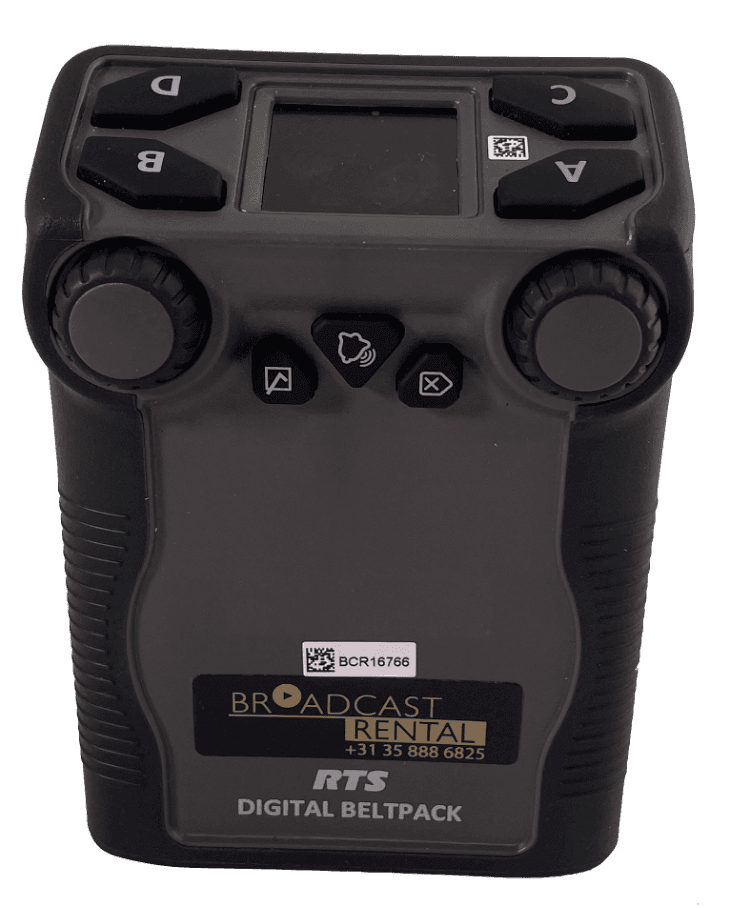

DBP is a four-channel/four-button wired beltpack that runs on PoE+ (Power over Ethernet 802.3af and 802.3at) and connects using OMNEO IP technology. Its unique hybrid design supports both digital partyline and matrix keypanel modes: for use as a digital partyline device, DBP connects to an OMS; for use as a portable keypanel, including functionality like point-to-point communication, DBP can be connected to any RTS digital/IP matrix product using OMNEO – including OMI cards in ADAM/ADAM-M frames or OMNEO ports on ODIN frames. DBP automatically selects the correct mode of operation (digital partyline/OMS or keypanel/matrix) when connected and switched on.

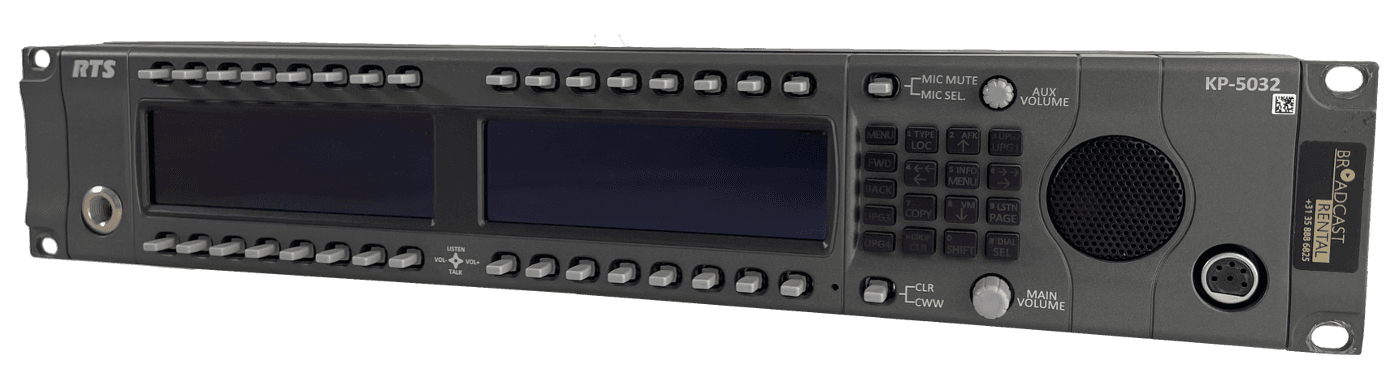

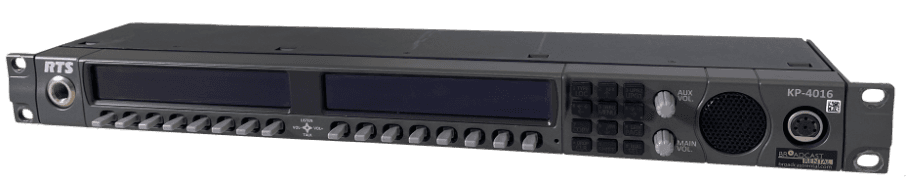

KP-Series keypanels deliver superior digital audio using the Bosch-developed OMNEO technology with Audinate's Dante audio over IP, via either copper or fiber. The KP-Series provides top-notch audio quality, free of noise, delay and other artifacts present in older technology. The family includes a rich set of connectors as standard, including GPIO and RC. As with other RTS products, emphasis has been placed on backward compatibility with previous generations of matrices, including analog technology. KP-Series keypanels utilize the latest generation of wide angle TFT displays, providing superior clarity, resolution and longer display life.

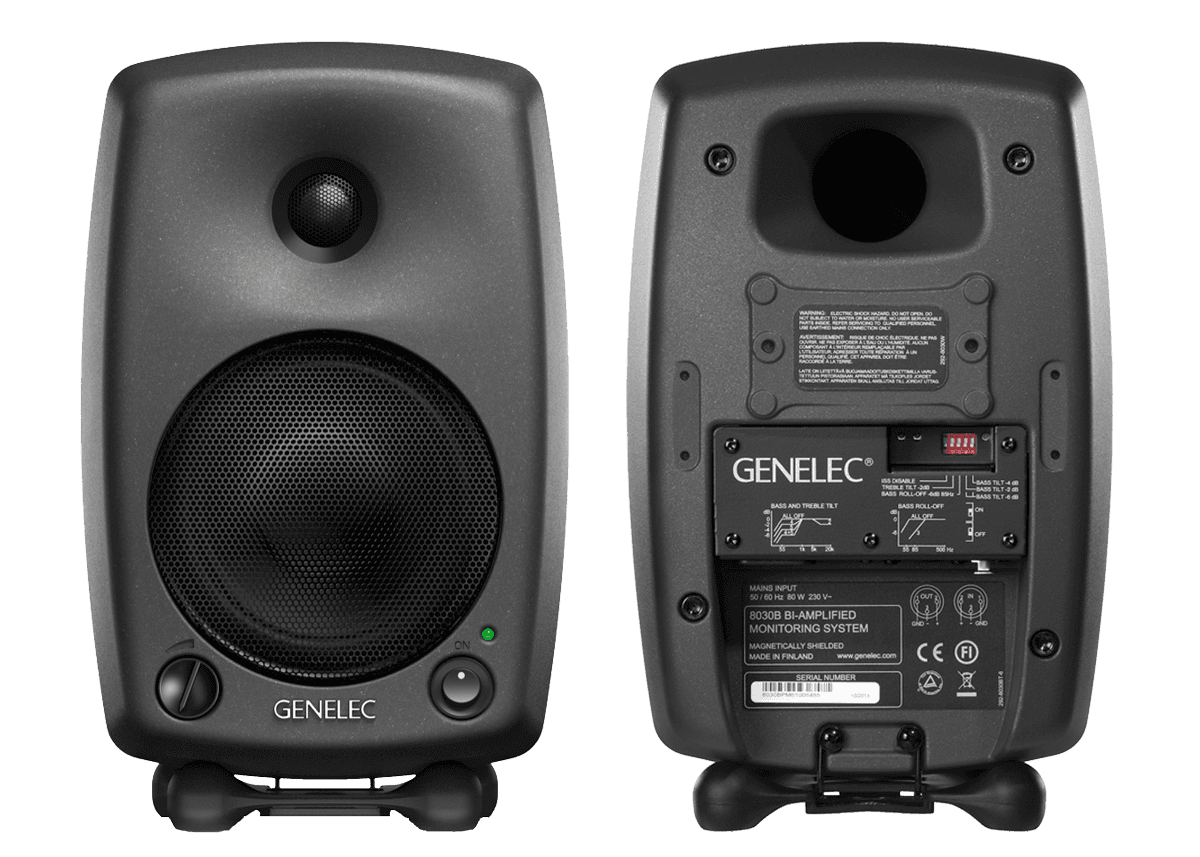

The Genelec 8030B studio monitor is a powerful monitor ideal for a wide range of applications and listening environments.
The 8030B features the rounded edges Minimum Diffraction Enclosure (MDE™) which incorporates the advanced Directivity Control Waveguide (DCW™). The all-aluminium 8030B enclosure offers a rigid structure with thin walls and maximised internal volume. The curved reflex tube is flow optimized to increase the woofer’s low frequency extension and SPL capacity. 8030B features Genelec Intelligent Signal Sensing (ISS™) circuitry which switches the monitor to standby when no audio input is detected (ErP 2013 Directive).


CTP Systems DCD2020 Commentary Box

Sonifex CM-CU21 commentary Unit

CTP Systems DIO88

CTP Systems prehear D4080

CTP Systems FW2010 4 Wire Box

CTP Systems CDU304

Prodys Quantum Lite | IP Commentary Set

Prodys Quantum ST | Dual Receiver

Prodys Quantum W | IP Commentary Codec

DirectOut Andiamo 2, XT/SRC

DirectOut Andiamo, 32 Channel MADI AD/DA Converter

DirectOut ExBox.MD MADI to Dante converter

Comrex BRIC-Link II audio codec

Ferrofish A16 MK-II AD/DA Converter

Astro Design - Audio Monitor AM-3825

Wisycom MRK980 receiver

Wisycom MCR54_ 4-channel true diversity receiver

Wisycom MPR52-ENG Dual reciever

Wisycom MTH410-EUX B7 Wireless Microphone

Wisycom MTP60-EUX Multi-band bodypack transmitter

Wisycom MTK952N, IEM transmitter

Wisycom MPR50-IEM Receiver

Wisycom BFLT1/BFLR1

RTS DBP Digital Partyline

RTS KP-5032 Intercom Panel

RTS KP-4016 Intercom Panel

Genelec 8030BPM active speakers
