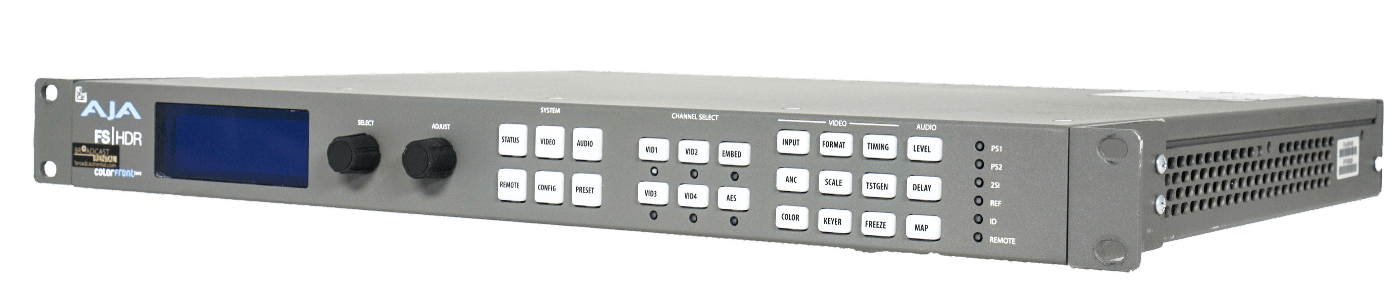

The new AJA FS-HDR Crossconverter is a 1RU rackmount crossconverter/synchronizer/delay unit specifically designed for the High Dynamic Range (HDR) and Wide Colour Gamut (WGC) broadcast environment. Realtime conversion of 4K/UHD signals and multiple HD signals customizable through the simple to use webinterface makes the life of every broadcast engineer easier.

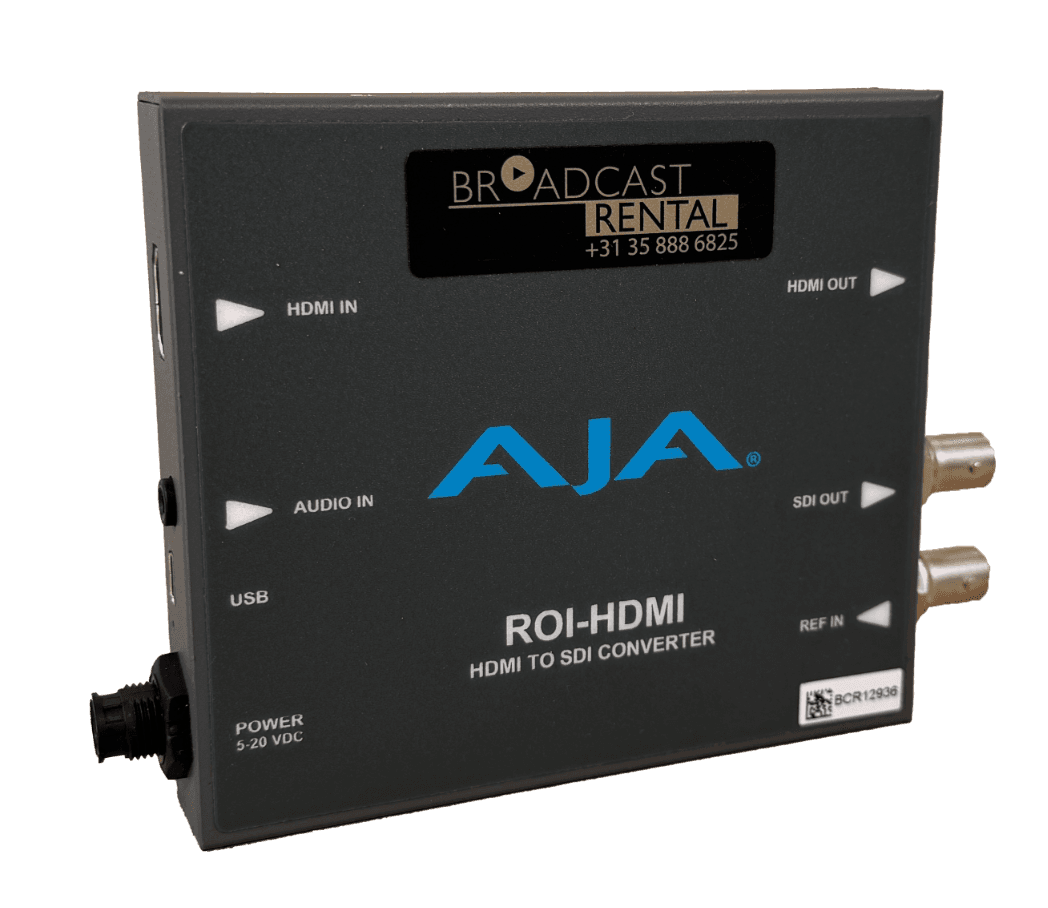

AJA’s ROI-HDMI Scan Converter allows exceptionally high quality conversion of computer and HDMI outputs to baseband video over SDI at an affordable price and a very portable size. With extensive audio functionality, incredible image scaling as well as aspect and frame rate conversion, ROI-HDMI fulfills the growing need to properly incorporate computer signals into the video world without sacrificing budget or space.

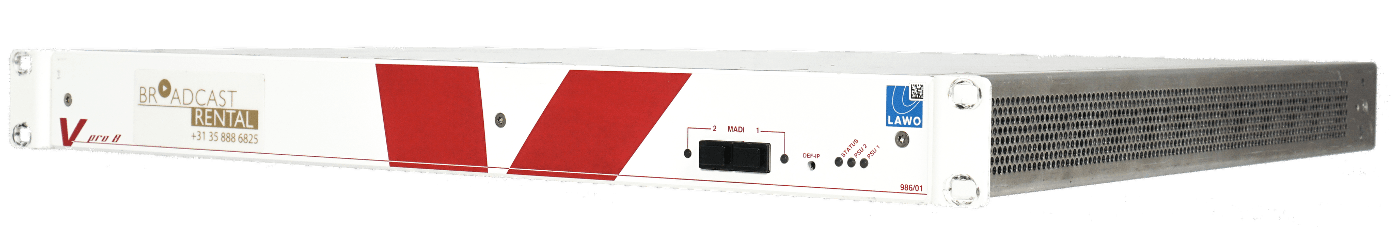

The “Swiss knife” of video products; the Lawo V__Pro 8 allows the broadcast engineer to handle up to 8 video signals. Colour correction, frame synchronization, embedding and de-embedding, Dolby E, a built in multiviewer and much more. The Lawo V__Pro 8 has it all!
Through the built-in webinterface it’s easy to setup and manage all the signals passing through the Lawo V__Pro 8. With Ember+ integration it’s easy to remote control the unit from VSM or Axon Cerebrum.

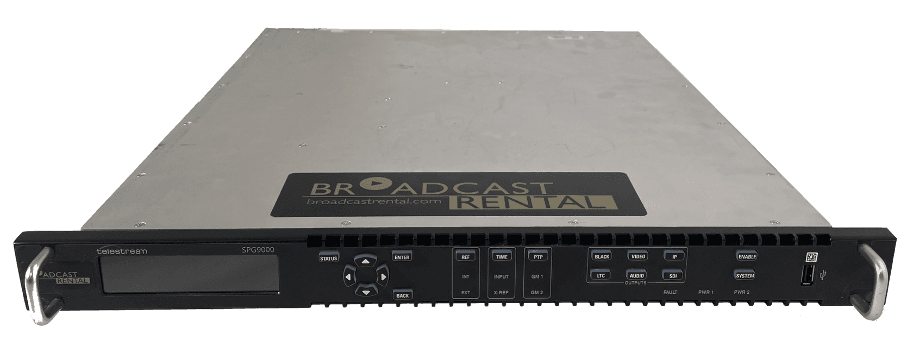

Flexible Configuration Options for Any System ArchitectureThe SPG9000 offers a complete set of reference inputs and outputs, supporting a wide variety of system designs. The base configuration includes all the features of a complete sync pulse generator, and all options are licensed so that they can be purchased with the base unit or any time later to upgrade the system.
The SPG9000 has multiple options for setting the internal clock reference (frequency and time-of-day). It can lock to a received GNSS signal, to another PTP grandmaster, or to another sync generator or an external atomic clock using the analog genlock input.
The loop-through genlock input can lock to many different types of analog synchronization signals, including NTSC and PAL black burst, HD tri-level sync signals for all common 1080-line and 720-line frame rates and formats, and continuous wave (CW) signals at 10 MHz.

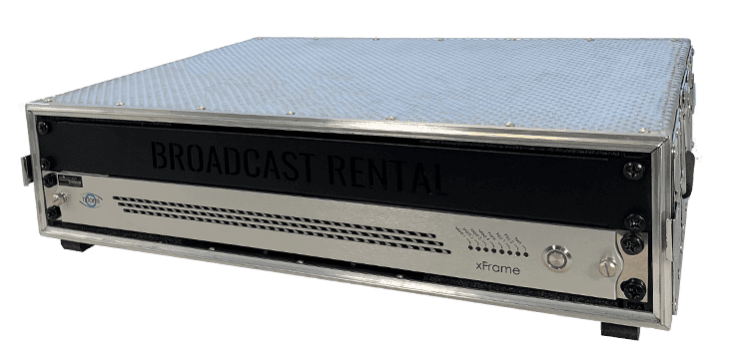

With Hitomi MatchBox, accurate synchronisation on departure can be demonstrated, as can misalignment on arrival. Evidence based data can mitigate liability. It solves lip-sync, coherence, line identification and audio level monitoring problems.
The 1RU xFrame hosts up to 4 MatchBox modules of any combination. xFrame boasts a distributed frame reference and single Ethernet control interface for access to all MatchBox Modules. With the trusted rock solid Matchbox technology inside.
Broadcast Rental designed a sturdy flightcase for the Hitomi with patch panels for easier use.

The LV5350 WAVEFORM MONITOR is compact without sacrificing performance, supporting SDI signals from SD through 12G rates. The LV5350 is a 3U half-rack, short-depth waveform monitor with a built-in 7-inch touch screen display and a full array of buttons and control knobs.The waveform, vector, picture, and audio displays enable simple yet comprehensive measurements and quality control of the widest range of audio and video formats. The status display allows you to assess errors and system stability with both event logs and long-term charts. Audio embedded in SDI signals can be shown on the level, Lissajous, and status displays.
The LV5350 has a DC power input, which enables it to be used in locations where AC power supplies are not available. Additionally, the LV5350 can be battery-operated by installing a battery mount option, ideal for onset work or any location where power is a challenge. With its combination of touch screen, dedicated buttons and knobs, and user-defined screen layouts the LV5350 allows complex measurement and monitoring tasks to be quickly completed.


Make Live Television Safe
Eliminate nudity, offensive language and obscene gestures from live broadcasts while maintaining program continuity with a flexible, feature-rich digital delay that offers a variety of video and audio masking techniques. The built-in masking techniques such as variable video defocus and unique audio Jumble eliminate the requirement for auxiliary content and simplifies production workflows. The simple set up, operation and personalization minimizes operator errors for concealing undesirable video and/or audio content.

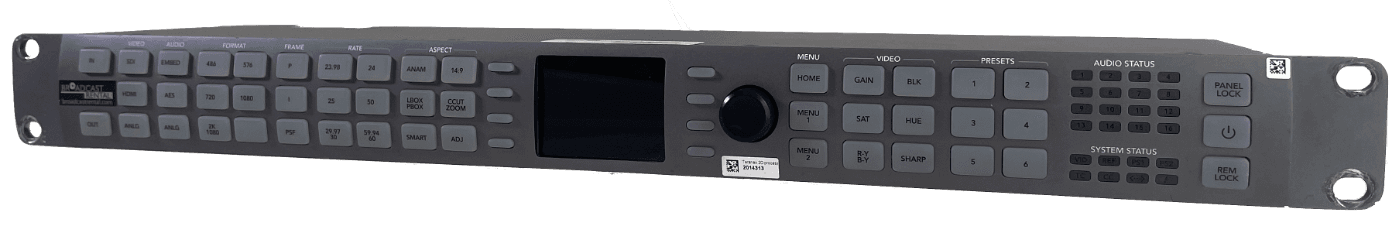

The Blackmagic Design Teranex 2D Processor is a high-quality standards converter, video format converter, and capture and playback device. It can convert between most any television format, including SD, HD, and Ultra HD, in real time. It also has a built-in Thunderbolt connection, so you can connect it to your computer for capture and playback of video and audio.

Now you can convert Quad Link SDI to 12G-SDI for connecting equipment that uses four BNC cables to the latest Ultra HD equipment using only a single cable! This lets you integrate older equipment with the latest high performance Ultra HD routers, switchers, monitors and more. You also get support for Level A and B 3G-SDI equipment, and can even add an optional Smart Panel with LCD monitoring and push button controls!

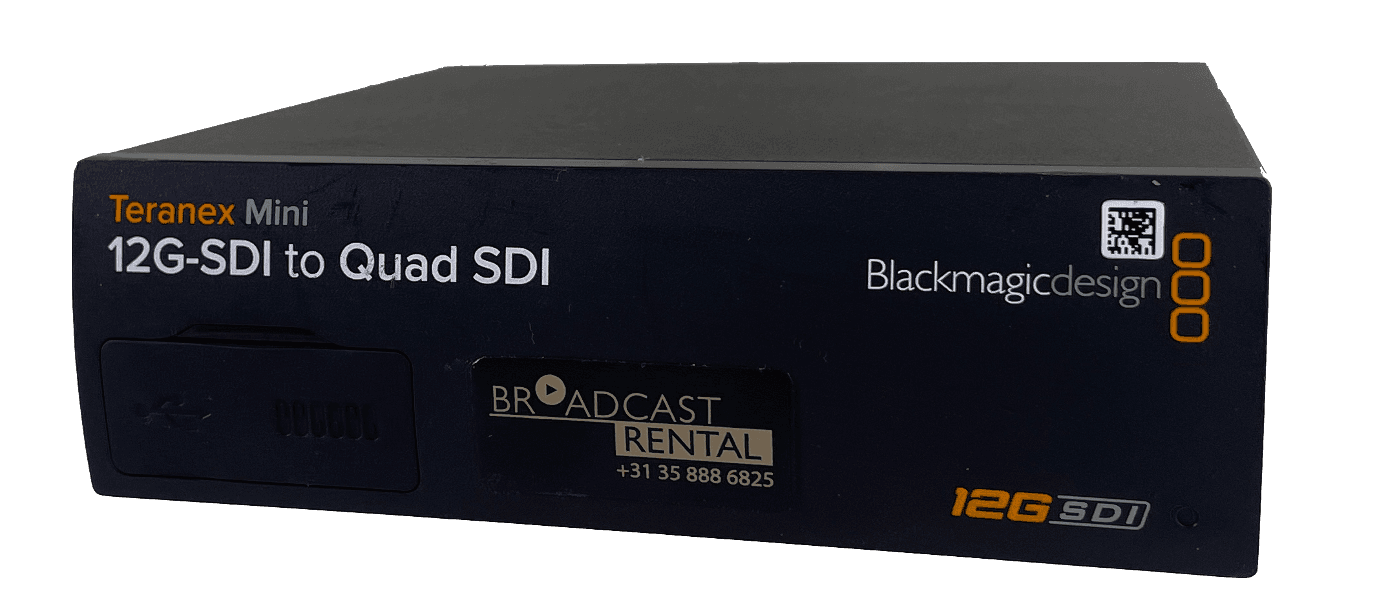

Convert 12G-SDI to Quad Link SDI so you can connect the latest 12G-SDI Ultra HD equipment with Quad Link Ultra HD equipment. Also allows Ultra HD SDI to be separated into four HD SDI outputs for using regular HD displays for creating video wall style displays. Includes 12G-SDI loop through and support for both Level A and Level B 3G-SDI equipment.

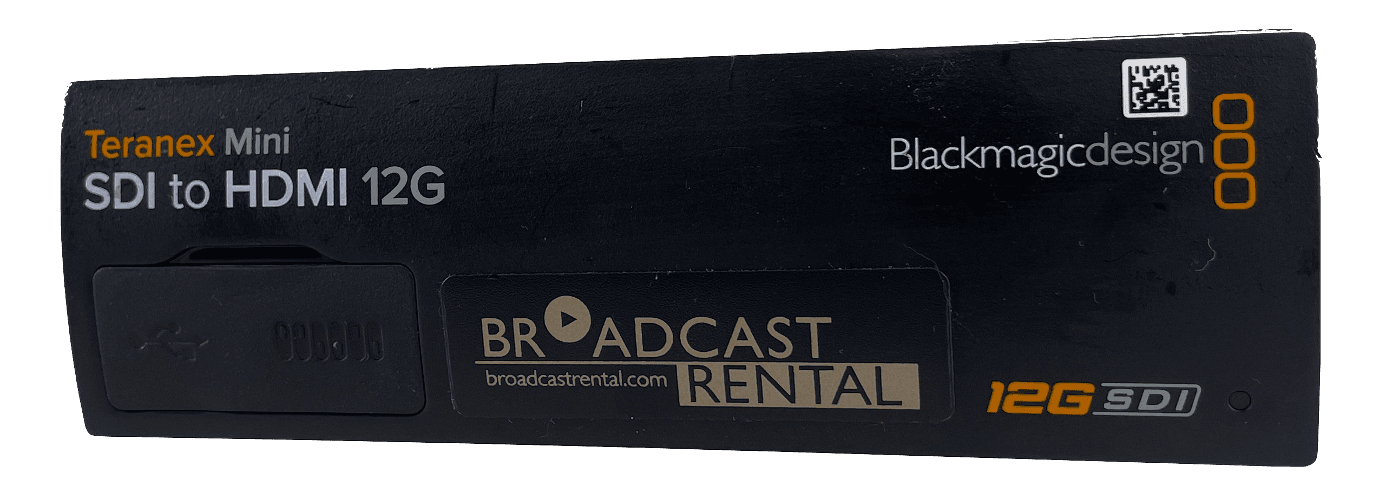

Convert from 12G-SDI to HDMI. Supports all video formats including SD, HD, 6G and 12G-SDI rates and includes down converter when working with a HDMI monitor, which will select the best format it can support. De-embed audio to balanced analog or AES/EBU formats and timecode output. Also includes Instant Lock on HDMI output as well as 33 point LUT. Perfect for using HDMI televisions as SDI broadcast monitors and for connecting to video projectors.

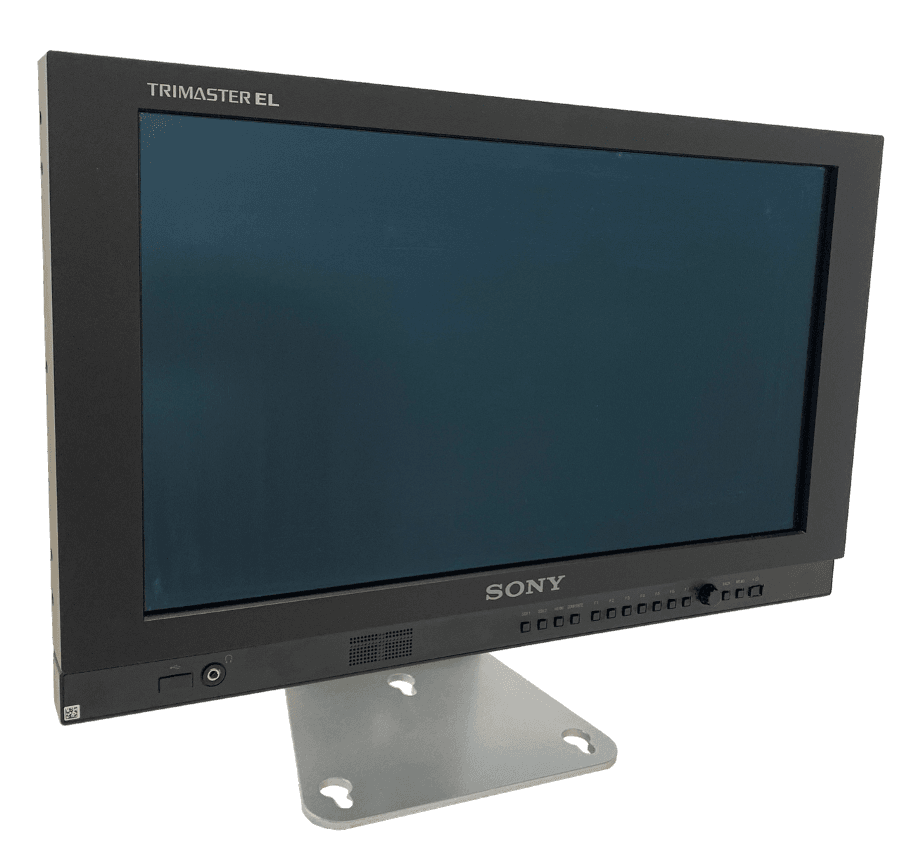

Slim and lightweight – easy to carry, The PVM-A170 monitor achieves the industry-leading lightweight and slim body* – the PVM-A170 weighs 4.2 kg and is approx. 40 per cent thinner than the previous PVM-1741A model. This advantage allows users to widen their applications, including field monitoring and installation on the monitor wall and OB van.
Viewing angle innovation, The PVM-A170 incorporates the TRIMASTER EL™ OLED panel and offers the industry’s widest viewing angles for any professional flat-panel monitor on the market.

The PVM-A250 25-inch, Full HD monitor achieves the industry-leading lightweight and shallow body*, with a approximately 40 per cent reduction compared to the previous PVM-2541A model. It is easy to carry, even by one person. The PVM-A250 incorporates the TRIMASTER EL™ OLED panel and offers the industry’s widest viewing angles of any professional flat-panel monitor on the market, making group monitoring easy. The stylish new design also includes a, robust, optional protection panel and corner bumpers**. The latest camera-linkage functions, such as camera and lens metadata display and a Picture and Picture function, provide the convenience of working efficiency both in the field and in the post process. Version 2.0 of the PVM-A250 expands and enhances the monitor’s ability to support 4K production, shopping channels, field and graphics applications.

AJA FS-HDR

AJA - ROI-HDMI

Lawo V_Pro 8

Telestream SPG9000

Hitomi Matchbox 4K generator/analyzer

Leader LV5350 Waveform monitor

Ross Aircleaner Model B (11 secs max delay)

BlackMagic Teranex 2D processor

Blackmagic Teranex Mini Quad-SDI to 12G-SDI

Blackmagic Teranex Mini 12G-SDI to Quad-SDI

Blackmagic Teranex Mini SDI to HDMI 12G

Sony PVM-A170 17" OLED monitor

Sony PVM-A250 24,5" OLED monitor

Blackmagic Video Assist 4K incl. power supply & batterries

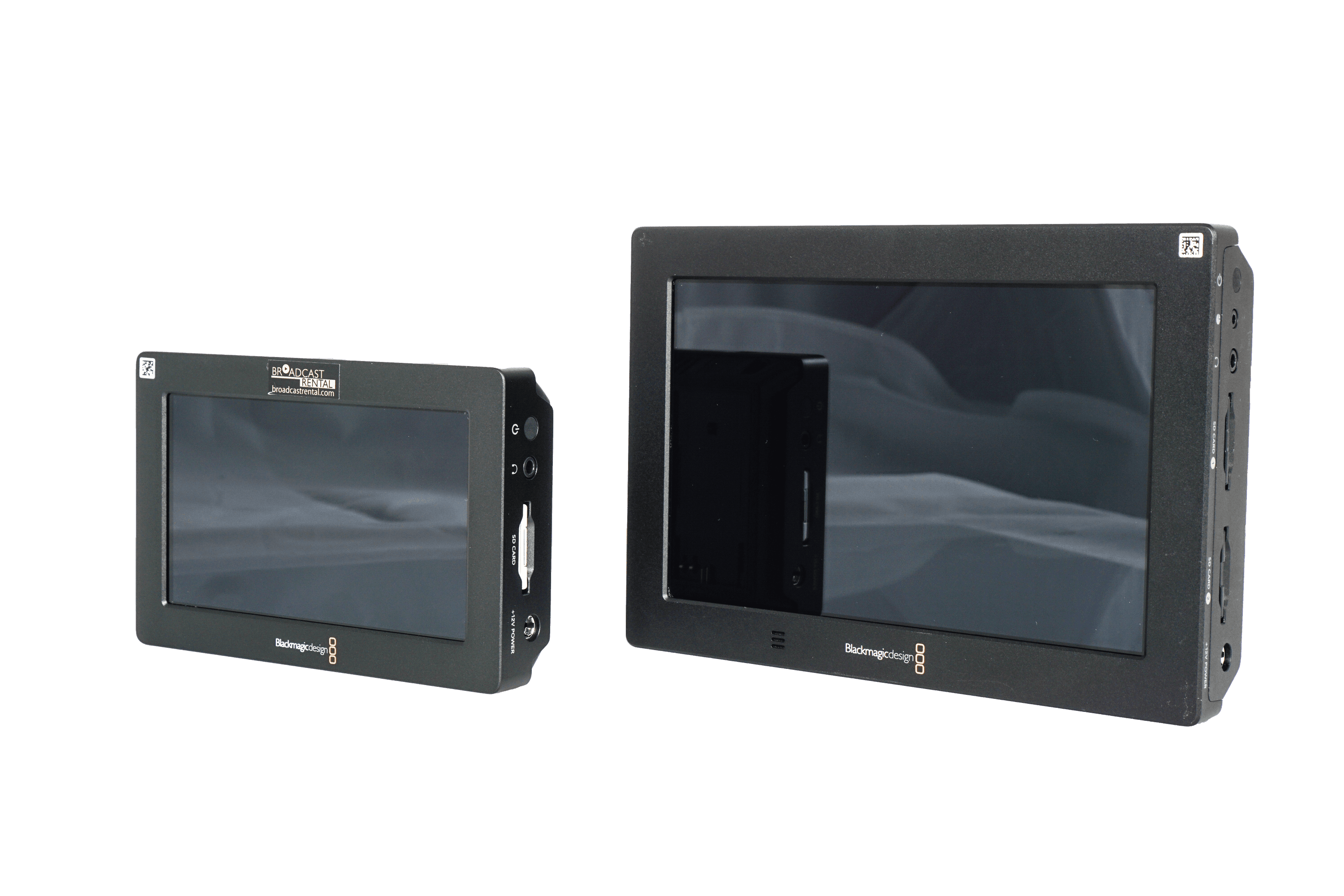

Blackmagic Video Assist HD incl. power supply & batterries
